Stainless steel is coveted for durability, versatility, and corrosion resistance, making it favored in essentially every industrial field. Of all varieties of stainless steels, Alloy 303 is unique in meeting practical and economic needs by virtue of qualities that set it apart from others. This comprehensive guide explores the salient features of 303 stainless steel, what separates it from other grades, and potential applications requiring superior machinability and performance.
Key Takeaways
- Superior Machinability: Enhanced with sulfur content for precision machining
- Balanced Properties: Combines strength, durability, and workability
- Cost-Effective: Optimal performance-to-price ratio for precision applications
- Versatile Applications: Ideal for fasteners, aerospace, medical, and automotive components
Chemical Composition of 303 Stainless Steel
The chemical composition of 303 stainless steel is carefully balanced to optimize machinability while maintaining essential mechanical properties. The composition includes iron, chromium, nickel, and other elements specifically designed to enhance precision machining capabilities.
| Element | Percentage (%) | Primary Function |
|---|---|---|
| Iron (Fe) | Balance | Primary structural component providing strength and malleability |
| Chromium (Cr) | 17-19% | Corrosion resistance through passive oxide film formation |
| Nickel (Ni) | 8-10% | Enhanced toughness, ductility, and oxidation resistance |
| Manganese (Mn) | ≤ 2% | Increased hardness and wear resistance |
| Silicon (Si) | ≤ 1% | Strength enhancement and high-temperature oxidation resistance |
| Phosphorus (P) | ≤ 0.20% | Improved machinability and strength under specific conditions |
| Sulfur (S) | 0.15-0.35% | Key differentiator: Exceptional machinability enhancement |
The Sulfur Advantage
The sulfur content in 303 stainless steel is the defining characteristic that sets it apart from other grades. While sulfur slightly reduces corrosion resistance compared to 304 stainless steel, it dramatically improves machinability by acting as a natural lubricant during cutting operations, reducing tool wear and enabling precision machining.
Comparison: 303 vs 304 Stainless Steel
Understanding the differences between 303 and 304 stainless steel is crucial for material selection. Both are austenitic stainless steels with similar base compositions, but their applications differ significantly due to key property variations.
303 vs 304: Key Differences
| Property | Grade 303 | Grade 304 | Winner |
|---|---|---|---|
| Machinability | Excellent (enhanced by sulfur) | Good | 303 |
| Corrosion Resistance | Good | Excellent | 304 |
| Welding | Limited | Excellent | 304 |
| Cost Effectiveness | High (for machined parts) | Good (general purpose) | Depends on application |
| Tensile Strength | 500-750 MPa | 515-620 MPa | Similar |
When to Choose 303 vs 304
Choose 303 When:
- Extensive machining operations required
- High production volumes needed
- Precision tolerance critical
- Moderate corrosion resistance acceptable
- Cost-effective machining priority
Choose 304 When:
- Maximum corrosion resistance needed
- Welding operations required
- Exposure to harsh chemicals
- Marine or coastal applications
- Food processing equipment
Mechanical Properties of Grade 303 Stainless Steel
Grade 303 stainless steel offers a balanced combination of mechanical properties that make it suitable for precision engineering applications. These properties are optimized for machinability while maintaining structural integrity.
| Mechanical Property | Value Range | Condition | Significance |
|---|---|---|---|
| Tensile Strength | 500-750 MPa | Annealed | Adequate strength for moderate load-bearing applications |
| Yield Strength | 190-275 MPa | Annealed | Resistance to plastic deformation under stress |
| Elongation | 40-50% | Annealed | Good ductility for forming operations |
| Hardness | 200 HB | Annealed | Optimal balance of durability and machinability |
Effect of Heat Treatment on Mechanical Properties
Important Note on Heat Treatment
Grade 303 cannot be hardened through conventional heat treatment due to its sulfur content. However, annealing can be performed to:
- Refine grain structure
- Reduce internal stresses
- Improve machinability further
- Enhance ductility for complex forming operations
Annealing Process: Heat to 1010-1120°C (1850-2050°F), followed by rapid cooling to prevent microstructure coarsening.
Corrosion Resistance of 303 Stainless Steel
While 303 stainless steel offers good corrosion resistance for many applications, it’s important to understand its limitations compared to other stainless steel grades.
Corrosion Resistance Performance
| Environment Type | 303 Performance | Recommended Use | Precautions |
|---|---|---|---|
| Dry Indoor | Excellent | Highly recommended | Minimal maintenance required |
| Mild Humidity | Good | Suitable with proper maintenance | Regular inspection recommended |
| Mild Acids | Moderate | Limited exposure acceptable | Monitor for pitting corrosion |
| Saltwater/Marine | Limited | Not recommended | Consider 316 grade instead |
| Strong Chemicals | Poor | Not suitable | Use specialized corrosion-resistant alloys |
Factors Affecting Corrosion Performance
Environmental Factors
- Saltwater exposure levels
- Humidity and temperature fluctuations
- Chemical agent presence
- Atmospheric pollution
Material Factors
- Chromium oxide film integrity
- Sulfur inclusion effects
- Surface finish quality
- Stress concentration areas
Machinability of Alloy 303
The outstanding machinability of Alloy 303 is its defining characteristic, making it the preferred choice for high-precision manufacturing operations across multiple industries.
Machinability Advantages
- Superior Chip Formation: Sulfur content creates ideal chip-breaking characteristics
- Reduced Tool Wear: Natural lubrication reduces friction and extends tool life
- Enhanced Surface Finish: Consistent cutting action produces superior surface quality
- Higher Cutting Speeds: Enables faster production cycles and improved efficiency
- Precision Tolerance: Maintains dimensional accuracy in complex geometries
Machining Performance Comparison
| Stainless Steel Grade | Machinability Rating | Cutting Speed Advantage | Tool Life Extension |
|---|---|---|---|
| 303 (Free Machining) | Excellent (100%) | Up to 20% faster | 30-50% longer tool life |
| 304 (Standard) | Good (70%) | Baseline | Standard |
| 316 (Marine Grade) | Moderate (60%) | 10-15% slower | Reduced tool life |
Best Practices for Machining Grade 303
Optimization Guidelines
Tooling Recommendations:
- Tool Material: Sharp HSS or carbide tools for optimal results
- Tool Geometry: Positive rake angles to reduce cutting forces
- Tool Condition: Maintain sharp cutting edges for consistent performance
Cutting Parameters:
- Cutting Speed: Moderate speeds to control heat generation
- Feed Rate: Optimize based on Tool Life Theory principles
- Depth of Cut: Balanced approach for material removal efficiency
Coolant and Lubrication:
- Cutting Fluids: Water-soluble oils or synthetic coolants
- Application: Consistent flow for heat dissipation and lubrication
- Chip Control: Proper evacuation to prevent re-cutting
Applications of 303 Stainless Steel
The unique combination of machinability, strength, and corrosion resistance makes 303 stainless steel suitable for diverse industrial applications where precision and reliability are paramount.
Primary Application Categories
| Industry | Common Applications | Key Requirements | Benefits of 303 |
|---|---|---|---|
| Aerospace | Fasteners, fittings, gear assemblies | High precision, durability, temperature resistance | Excellent machinability for complex geometries |
| Medical | Surgical instruments, device components | Precision, sterilization compatibility | Superior surface finish and tight tolerances |
| Automotive | Bushings, nuts, couplings, shafts | Durability, precision, cost-effectiveness | High-volume production efficiency |
| Electronics | Connectors, housings, terminals | Electrical conductivity, wear resistance | Precise dimensional control |
| Food Industry | Fittings, valves, food-contact parts | Corrosion resistance, cleanability | Easy fabrication and maintenance |
Specific Components and Products

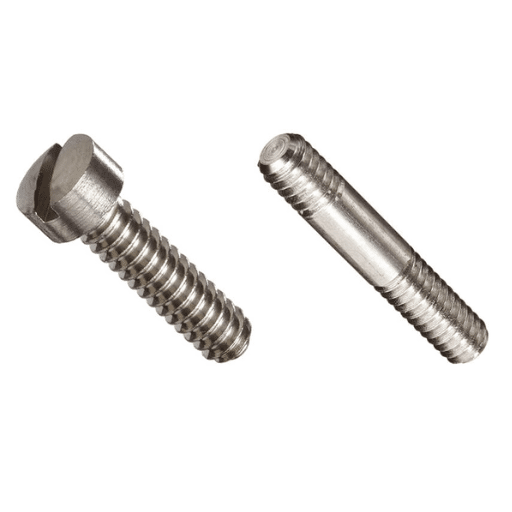

Fastening Systems
- Screws and bolts (all thread types)
- Nuts and washers
- Threaded rods and studs
- Specialty fasteners
Mechanical Components
- Shafts and spindles
- Gears and gear components
- Bushings and bearings
- Valve components
Precision Parts
- Aircraft fittings
- Medical instrument components
- Electronic housings
- Custom machined parts
Industrial Equipment
- Electrical switchgear components
- Terminal posts and connectors
- Instrumentation parts
- Process equipment fittings
Advantages of 303 Over Other Grades
Competitive Advantages
1. Exceptional Machinability (vs. 304 & 316)
- Up to 20% faster machining speeds
- 30-50% longer tool life
- Superior surface finish quality
- Reduced production costs
2. Cost-Effectiveness
- Lower total manufacturing cost
- Reduced machining time and labor
- Extended tool life reduces replacement costs
- Optimal performance-to-price ratio
3. Mechanical Performance
- High tensile strength (500-750 MPa)
- Excellent wear resistance
- Superior stress resistance
- Consistent performance under load
4. Manufacturing Efficiency
- Faster production cycles
- Reduced scrap rates
- Better dimensional stability
- Enhanced productivity
Limitations and Considerations
Important Limitations
- Welding Restrictions: Limited weldability due to sulfur content
- Corrosion Resistance: Slightly lower than 304 in harsh environments
- Heat Treatment: Cannot be hardened through conventional methods
- Marine Applications: Not recommended for saltwater exposure
- Chemical Processing: Limited use in strong acid environments
References
-
Stainless Steel Grade Chart – Stanford University – Provides detailed information on the properties and scaling resistance of stainless steel grades, including 303.
-
Cracking of Cold Drawn Resulfurized Type 303 – MIT – Discusses the machinability and basic properties of 303 stainless steel, focusing on its sulfur content.
Frequently Asked Questions (FAQ)
What are the mechanical properties of 303 stainless steel?
The mechanical properties of type 303 stainless steel vary in tensile strength and ductility. It is to gain a balance of full machinability with sufficient mechanical integrity for applications in various fields, especially in the manufacturing of precision parts.
How does 303 stainless steel compare with other stainless steel grades?
Grade 303 stainless steel is often compared with grade 304 stainless steel. Both are the austenitic grades, but with the addition of sulfur in 303 steel, it has far better machinability. On the other hand, 304 exhibits superior corrosion resistance and can be, thus, employed in environments that demand high resistance to oxidation.
What is the significance of the presence of sulfur in 303 stainless steel?
The presence of sulfur in 303 stainless steel is of paramount importance in providing better machinability to the material. For this reason, it is easily machined, especially in applications where precision is paramount.
What are the corrosion resistant properties of 303 stainless steel?
With its high chromium content, 303 stainless steel has decent corrosion resistance properties. It would offer protection in mild environments; however, in more harsh environments, it would not serve as well as other stainless steel grades like 304.
Is 303 stainless steel magnetic?
Generally, 303 stainless steel is considered to be non-magnetic. However, after being cold worked, it may develop a slight magnetism. Generally, all austenitic grades like 303 retain their non-magnetic properties and are used in applications where magnetism would be a hindrance.
How does hot working affect the shaping of 303 stainless steel?
Being forged at temperatures allows for greater deformation in the 303 stainless steel. Hot working thus assures that the required dimension is attained and, in some cases, enhances mechanical properties so that the product may comply with specification requirements.
What should be present in a 303 stainless steel data sheet?
A 303 stainless steel data sheet should include details of chemical composition, mechanical properties, corrosion resistance, weldability, and application types. Secondly, it should bring into focus its great machinability benefits arising out of free machining characteristics.
Can heat treatment strengthen 303 stainless steel?
303 stainless steel is rarely hardened by heat treatment. Its main property is determined by its composition and sludge content (the latter helping machining more than raising the hardness). Other grades with different chemical compositions or some other alloy grades would be used where hardening is required.
What are some of the applications for 303 stainless steel?
It finds use in a wide variety of applications that require good machinability such as fasteners, fittings, and precision components. It is a common mate in the automotive and aerospace industries, typically for parts that can gain from corrosion resistance with ease of machining.
