Steel flanges are fundamental components in industrial safety systems and their impact on steel flange performance cannot be overstated. ANSI 600 rating is a marker of excellence in durability and efficiency in high-pressure materials. This comprehensive guide will explore the key characteristics of the ANSI 600 pressure rating, including specifications, applications, and advantages for engineers and industry professionals.
Understanding ANSI Class Ratings
ANSI class ratings represent the maximum pressure a flange, valve, or fitting is rated to safely endure under a given temperature. The rating system provides a standardized approach to component selection and system design:
- Lower values such as Class 150 denote lower pressure endurance
- Higher values like Class 300 or 600 show sustained industrial pressure component use strength
- The greater the class rating number, the higher the pressure the component is rated for
What is ANSI?
In 1918, the American National Standards Institute (ANSI) was established as a non-profit organization. Key aspects of ANSI include:
- Setting standards for safety, quality, and efficiency of products, services, systems, and processes in the United States
- Ensuring compatibility, reliability, and effective performance in local and international markets
- Participating on behalf of the United States in standardization meetings conducted by the International Organization for Standardization (ISO)
- Facilitating cooperation between different world bodies for unified standards
Overview of ANSI Class Ratings
| Class Rating | Pressure at 100°F (psi) | Typical Applications |
|---|---|---|
| Class 150 | 285 psi | Low-pressure systems, water distribution |
| Class 300 | 740 psi | Medium-pressure applications |
| Class 600 | 1,480 psi | High-pressure oil, gas, chemical processing |
| Class 900 | 2,220 psi | Very high-pressure systems |
| Class 1500 | 3,700 psi | Extreme pressure applications |
ANSI 600 Pressure Ratings Explained
Defining ANSI 600 Pressure Rating
The ANSI 600 pressure rating is a standard developed by the American National Standards Institute (ANSI) that determines the calibration for valves, flanges, fittings, and other components for pressure systems. Key specifications include:
- Maximum pressure: Up to 1,480 psi at 100°F (37.8°C)
- Temperature dependency: Maximum allowable pressure reduces with increasing temperature
- Industry focus: Ideal for power generation, oil and gas, and petrochemical industries
- Safety compliance: Minimizes risk of equipment breakdown and prevents accidents
Pressure and Temperature Relationship
The relationship between pressure and temperature is governed by thermodynamic principles. Understanding this relationship is crucial for:
- Maintaining system efficiency and safety
- Proper component selection
- Preventing system failures
- Ensuring compliance with ANSI 600 standards
Specifications and Standards
ASME and ANSI B16.5 Standards
Pipe flanges and flanged fittings must comply with established standards for:
- Dimensions and tolerances
- Material specifications
- Pressure-temperature ratings
- Testing requirements
- Quality assurance protocols
Temperature Ratings Compliance
| Material Type | Maximum Temperature | Typical Applications |
|---|---|---|
| Carbon Steel | 500°F (260°C) | General industrial applications |
| Stainless Steel | 800°F (427°C) | Corrosive environments, food processing |
| Alloy Steel | 1000°F (538°C) | High-temperature power generation |
Applications of ANSI 600 Pressure Rated Steel Flanges
Oil and Gas Industry
Critical applications include pipelines and machinery for high-pressure crude oil, natural gas, and refined products from drilling to refining processes.
Petrochemical Plants
Used in connecting pipes and machinery such as reactors, separators, and heat exchangers in high-pressure chemical processing environments.
Power Generation
Essential in steam and cooling systems of thermal and nuclear power plants, including turbines, boilers, and condensers.
Chemical Processing
Designed to withstand harsh conditions with corrosive or high-pressure chemicals, ensuring system security during intense chemical processes.
Marine and Shipbuilding
Used in steam engines, ballast systems, and fuel transfer pipelines requiring reliable high-pressure connections in marine environments.
Benefits of Using ANSI 600 Rated Equipment
- Enhanced Safety: Designed to handle extreme pressure and temperature conditions
- Regulatory Compliance: Meets strict industry standards and regulations
- Reduced Downtime: Minimizes equipment failures and maintenance requirements
- Versatile Applications: Suitable across multiple industries and applications
- Cost-Effective: Long-term reliability reduces total cost of ownership
- Global Compatibility: Standardized specifications ensure international compatibility

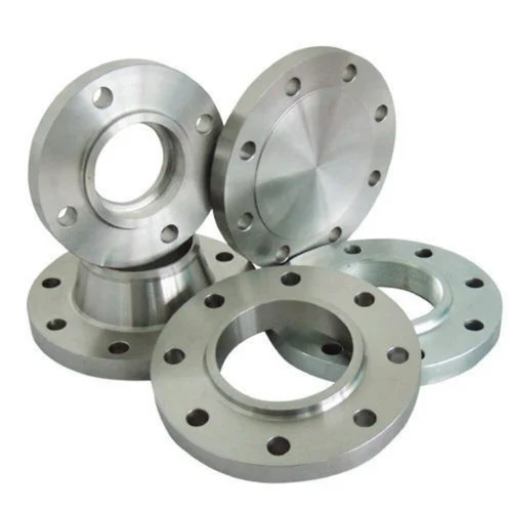

Choosing the Right Flange for Your Application
| Flange Type | Material Options | Pressure Rating | Key Applications | Main Advantages |
|---|---|---|---|---|
| Weld Neck (WN) | Stainless, carbon & alloy steels | Very high pressures | Petroleum, chemical industries | Strong connection, reduced stress |
| Slip-On (SO) | Low carbon and stainless steel | Low to medium pressure | Water, gas distribution | Low cost, simple installation |

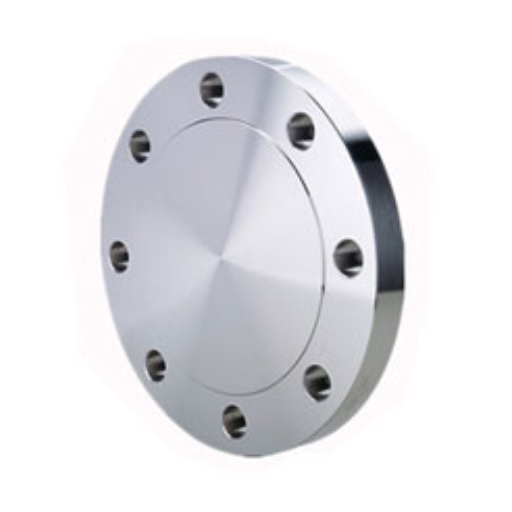

| Blind (BL) | Mild steel, strong alloy steel | High-pressure operations | Pipeline isolation, maintenance | Complete flow stoppage capability |
| Threaded (TH) | Carbon, alloy, stainless steel | Low-pressure systems | Plumbing, small diameter piping | No welding required |
| Socket Weld (SW) | Stainless steel, alloy steel | Medium to high pressure | Chemical processing, hydraulics | Leak-proof joints, smaller diameter |
References
-
Steam and Steam Condensate Piping – University of Houston – Includes specifications for valves and flanges conforming to ANSI B16.34 pressure-temperature ratings.
-
ANSI/ASME B31.1, “Power Piping” – U.S. Nuclear Regulatory Commission (NRC) – Discusses the adoption and application of ANSI/ASME standards, including pressure ratings for piping systems.
Frequently Asked Questions (FAQ)
What does the ANSI 600 pressure rating stand for?
The ANSI 600 pressure rating stands for a given metric of flanges and fittings previously set by the American National Standards Institute (ANSI). This rating is the culmination of the pressure rating of the system at a given temperature, which is necessary for safety and is reliable.
How does the ANSI pressure ratings system work?
The ANSI pressure ratings system codes flanges into class 150, 300, 600, and so forth. Each class has a maximum pressure at a certain temperature. This allows the designer to pick the flange suitable for the application pressure and temperature.
What are the temperature ratings with ANSI 600 flanges?
The temperature ratings for ANSI 600 flanges vary with the type of material used. For example, carbon steel flanges can be rated for up to 500 °F. Other materials will have different maximum operating temperatures. The ANSI B16.5 standard should be consulted for exact temperature ratings.
How do I get the proper flange for my pipework?
For selecting a flange, the operating pressure, temperature ratings, and material of the pipe and flanges should be considered. The class of the flange should be appropriate for the system requirements so that the maximum pressure and temperature will not be exceeded.
What is the maximum psi for ANSI 600 flanges?
The maximum psi for ANSI 600 flanges is generally rated at 600 psi for temperatures up to 100 degrees Fahrenheit. The maximum allowable pressure decreases with increasing temperatures, so it is important to check the pressure-temperature ratings of pipe flanges for accurate values.

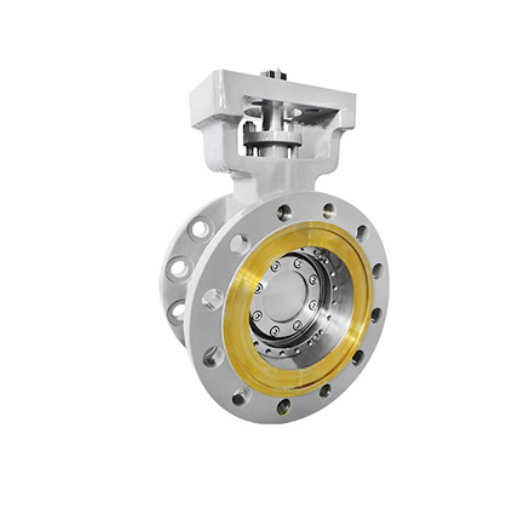

Can I use ANSI 600 flanges with valves?
Yes, you can use ANSI 600 flanges with valves if the pressure rating of the valve matches or exceeds the rating of the flange. This ensures that the assembly as a whole will be compatible with the operating pressure without any risk of damage.
What different pressure classes do flanges have?
The classes of flanges are Class 150, Class 300, Class 600, Class 900, Class 1500, and Class 2500. Each class has a maximum pressure rating. This is important for choosing the appropriate flange for a given application in piping systems.
What is the importance of the B16.5 standard?
The B16.5 standard titled “Pipe Flanges and Flanged Fittings ” is provided by the American Society of Mechanical Engineers (ASME). The standard provides dimensions and allowable tolerances and pressure-temperature ratings, which are very useful in procuring steel pipe flanges and fittings. The B16.5 standard is an important one as it is a reference from which engineers can check for consistency and safety in flange application.
