Stainless steel seamless pipes are widely used in various industries due to their strength and resistance to corrosion. Not every single stainless steel pipe has the same purpose, though. In high-performance applications, annealed and pickled seamless pipes are unrivaled. But what are these pipes, and why are they critical to your projects? In this ultimate guide, we break down the fundamentals of annealed and pickled stainless steel seamless pipes, including their properties, manufacturing process, advantages, and real-world applications. Besides advanced experts, even novices will be empowered with crucial knowledge to optimize their operations. Get ready to deepen your understanding of this essential industrial material.

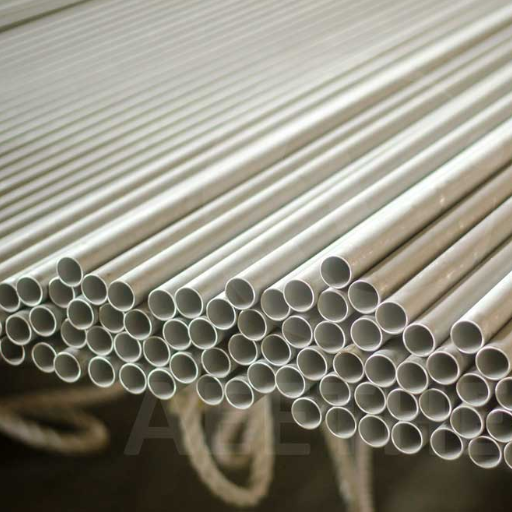

What Is Annealed and Pickled Stainless Steel Pipe and Why Is It Important?
Annealed and pickled stainless steel pipe is a type of seamless pipe that has undergone intensive treatment, including annealing and surface cleaning (pickling). For annealing to take place, the steel must be heated to a specific temperature and then cooled to retain its flexibility, strength, and endurance. Pickling removes all surface imperfections, such as stains, scales, and rust, to ensure a completely smooth finish. These processes improve the pipe’s ability to withstand corrosion and enhance its overall quality, making it suitable for use in the chemical processing, food manufacturing, and construction industries. It’s pivotal in its ability to operate dependably in extremely strenuous situations while upholding the structure and sustaining performance over time.
Understanding the Annealing and Pickling Process in Stainless Steel Pipe Manufacturing
The Annealing Process
Annealing is one of the most critical heat treatment steps taken during the manufacturing of stainless steel pipes. This includes heating the pipes to a selected temperature and cooling them at a specific rate. The goal is to eliminate internal stresses, increase ductility, and improve the material’s overall machinability. Well-annealed strips of stainless steel pipes can endure more significant stress from fractures and deformation, which enhances their use in high-pressure systems. Depending on the grade of stainless steel, the required heating is generally between 1900°F and 2100°F to ensure optimal restoration of the microstructure without defects.
The Pickling Process
Pickling follows a sequential step that deals with surface defects, such as impurities (oxides, scales, and weld burns), which accumulate during the annealing or welding processes. An acidic solution, often containing nitric acid or hydrofluoric acid, is used for pickling because it performs surface cleaning, and the passivation step is achieved during this process. Surface contaminants are removed to enable stainless steel pipes to possess a smooth surface, which is critical for use in food processing or pharmaceutical industries. The effectiveness of pickling can also improve the durability of the pipe in harsh environmental conditions to which it is exposed.
Complementary Role of Both Processes
The simultaneous annealing and pickling technique is crucial in producing pipes made from high-quality stainless steel that can meet various industry requirements. Internal structure optimization is primarily the focus of pickling, while external surface refinement is the focus of pickling. Both processes leave the pipes with excellent mechanical strength, a longer service life, and strong resistance to wear and corrosion.
Key Benefits of Annealed Pickled Stainless Steel for Industrial Applications
- Enhanced Corrosion Resistance
The pickling process separates surface impurities, such as scale and oxides, resulting in stainless steel that is more resistant to corrosion. Making stainless steel ideal for use in industries exposed to harsh conditions, such as chemical processing and the marine industry.
- Improved Surface Finish
The cleanliness achieved through the pickling process not only looks appealing but also enhances performance relevant to cleanliness. The food processing and pharma industries are significant beneficiaries of this aesthetically pleasing finish.
- Superior Mechanical Properties
While improving the ductility of the material by relieving stress, the annealing process also helps to balance out the material properties. This creates robust pipes that endure high pressure and temperature, extreme mechanical wear, and even sustain harsh industrial conditions, making them suitable for demanding industrial applications.
- Longer Lifespan
The combination of annealing and pickling increases the resistance of industrial stainless steel pipes to wear, fatigue, and environmental impacts, thereby prolonging their operational lifespan in industrial applications.
- Ease of Fabrication and Welding
Stainless steel pipes that have been dipped into acid and heat-treated are simpler to form, cut, and weld, which saves time and enhances efficiency for construction and infrastructure projects.
- Compliance with Industry Standards
Both processes ensure that the stainless steel pipes can sustain the stringent industry requirements and certifications while performing reliably across critical automotive, oil & gas, and aerospace sectors.
- Cost Efficiency in the Long Run
Elevating steel’s durability through annealing and pickling may increase initial production costs. However, the long-term benefits that industry players incur, such as savings in service fees, reduced upkeep, and an extended lifespan, all combine to offset the cost in the long run.
Difference Between Pickled Stainless Steel Pipe and Other Surface Finishes
Compared to other surface finishes, pickled stainless steel pipes offer special benefits in terms of cleanliness and corrosion protection on the surface compared to other materials. During pickling, scales and other oxides are removed, leaving the surfaces smooth, clean, and highly resistant to corrosion. This makes the steel ideal for use in marine, chemical, and food processing facilities.
Polished or mill finishes are other surface treatments; however, these finishes do not remove oxides to the same degree as pickled finishes. Under specific environments, residues can render the affected surface vulnerable to corrosion. For example, while polished finishes are pleasant to look at, they tend to attract dust and other pollutants to tiny nooks and crannies. Likewise, mill finishes are left as drawn, meaning their surfaces have not been treated. Unlike pickled finishes, they lack uniformity off the line, as they retain a rough surface riddled with nicks and scratches.
Industry studies and reports suggest that pickled stainless steel pipes offer up to 30% increased resistance to pitting and crevice corrosion, especially in areas containing chloride, compared to untreated or polished versions. In addition, the passive layer formed on the clean surface during the pickling process extends the lifespan of the pipes while meeting strict industry cleanliness requirements, especially for pharmaceutical and food-grade applications.
For an unmatched combination of lasting performance and strength, pickled surfaces for stainless steel further support industries requiring structural dependability and protection against unforgiving environments.

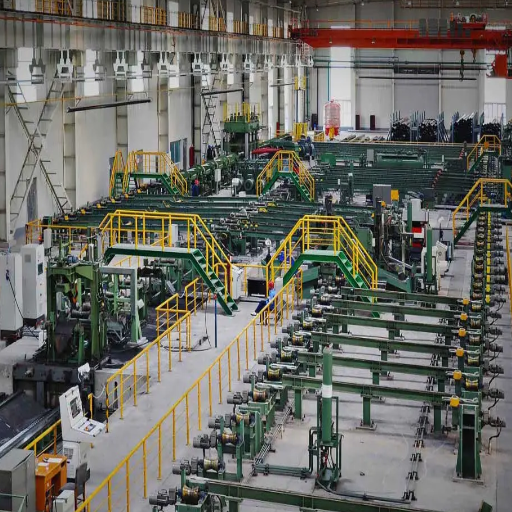

How Are Seamless Stainless Steel Pipes Manufactured?
Through an advanced and precise procedure, seamless stainless steel pipes undergo a step-by-step process that results in pipes with high strength and uniformity. First, solid cylindrical steel billets are warmed to an appropriate temperature so that they can be worked with. Then, a mandrel or piercing tool is used to puncture it, creating a hollow inner cylinder. Afterward, the hollow billet is elongated and shaped by being either rolled or extruded into a cylinder. This step refines its dimensions and guarantees uniform thickness. The pipe is then heat-treated to improve its mechanical properties, and a surface finish is applied to achieve a smoother and cleaner appearance. Such pipes are high in quality and durable, making them suitable for intricate tasks.
Step-by-Step Production Process of Seamless Stainless Steel Tube
- Raw Material Selection
The first step in the production process is selecting high-quality stainless steel billets as raw materials to achieve the desired result for the pipes. Fulfilling the stringent chemical composition and quality standards is also essential. The commonly used stainless steel grades 304, 316, and 410 are all used, each with specific attributes that are beneficial for different applications.
- Heating and Piercing
A furnace is used to heat the billets to 1200–1300 °C. During this phase, the material also has to be malleable for whatever comes next. Another step that follows heating is the formation of a hollow core while maintaining structural integrity using a rotary piercer or punch.
- Elongation and Sizing
Triangular holes are punched in the billets, which are then elongated in rolling mills or a mandrel mill. In this process, the tube, along with its diameter and wall thickness, is rolled to increase its size further. Exceptional equipment guarantees exactitude and uniformity in this process.
- Heat Treatment
To augment the mechanical features and the tube’s corrosion-resistant properties, it is subjected to a heat treatment. Such processes include annealing, where the tube is heated to a set temperature and is done so in a methodical manner at intervals to relieve internal stresses and enhance ductility.
- Pickling and Surface Finishing
The pickling procedure is carried out to strip away the oxide layers and ignition residues from the tube’s surface after it has been heated. Depending on the requirements, these finishes can include polishing or other processes that achieve refined, abrasive finishes or even seamless finishes that are free of steps.
- Quality Inspection
Every tube undergoes rigorous quality control procedures, including ultrasonic tests, eddy current tests, and standard compliance checks. All of these have been designed to check compliance with set international standards, such as ASTM and ISO, and to ascertain trustworthiness and longevity.
- Cutting and Packaging
The last step requires cutting the pipes to particular sizes defined by the customers. Subsequently, the tubes undergo an additional process in which they are cleaned and marked for identification before being packed appropriately to prevent damage during transport.
This entire procedure ensures the flawless production of robust, precision-seamless stainless steel tubes, which are essential in the aerospace, oil and gas, and medical equipment industries.
Raw Material Selection and Quality Control Measures
Manufacturing seamless stainless steel tubes begins with sourcing the right raw materials. High-grade stainless steel is carefully selected and usually obtained from reputable vendors with international grade certifications, such as ASTM or ISO. The chosen material undergoes an evaluation process where its composition is screened for the correct amounts of chromium, nickel, and molybdenum. These elements determine the grade’s corrosion resistance, durability, and the seal’s heat resistance.
Every single step in the manufacturing process undergoes some form of quality control to ensure that the seamless stainless steel tubes are consistent and dependable. Material properties verification and internal flaw or impurity detection are done through advanced testing methods, which include spectrochemical analysis and ultrasonic inspection. Additionally, checking the rigidity, measurement against the claimed size, and the amount of force needed to stretch the seams ensures compliance with industry standards. Such strict standards are crucial for modern components in the aerospace, petrochemical, and medical industries, which operate on precision and dependability.
The Role of Rolling Mills in Seamless Pipe Manufacturing
Accurate dimensions and uniformity are essential during the creation of seamless pipes, and rolling mills help achieve that. These mills must complete two operations: reducing the diameter of a hollow cylindrical billet and adjusting its wall thickness to create a strong, homogeneous product. High repeatability and accuracy, along with efficiency, are hallmarks of modern rolling mills because they integrate industrial automation and precision measurement. For example, modern cross-roll piercing mills can form hollow shells from pre-heated billets using extreme pressure, creating seamless pipes hollow shells are essential to creating.
According to the data, the seamless pipes market is growing at a steady pace, driven by demand from the oil and gas sector, which requires them due to their corrosion-resistant and robust nature. Due to changing market demands, rolling mill technologies must adapt their innovations to increase production speed, reduce raw material use, and lower costs. In addition to these, thermo-mechanical rolling and controlled cooling of the pipes during the forming process also increase their mechanical properties and reduce their weight, making them more efficient. Seamless pipes are specially designed to withstand intense commercial and industrial demands; therefore, these techniques shift the reliance on rolling mills as a vital component in producing high-quality pipes that meet sophisticated requirements.

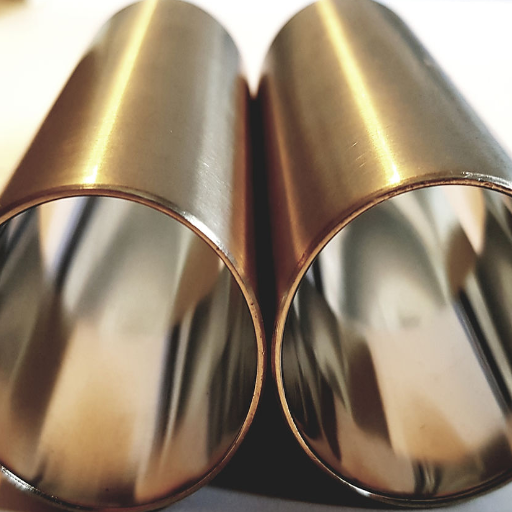

What Are the Common ASTM Standards for Annealed Pickled Stainless Steel Pipes?
The widely accepted standards for annealed pickled stainless steel pipes are the following:
- ASTM A312: Deals with seamless and welded pipes of stainless steel grade A1 (austenitic) intended for high temperature and general corrosive service.
- ASTM A213: Covers the Specification of seamless stainless steel pipes with special consideration to heat exchangers and boilers.
- ASTM A269: Covers stainless steel pipes, which are seamless and welded for general service with special attention to corrosion.
- ASTM A249: Concentrates on stainless steel welded pipes of nonferrous metals for heat exchangers, condensers, and similar uses.
These standards ensure that stainless steel pipes have a certain level of corrosion resistance and a set of specific mechanical properties, making them safe for use across various industries.
ASTM A312 Specifications for Seamless and Welded Stainless Steel Pipe
ASTM A312 covers seamless and welded austenitic stainless steel pipes, designed for high-temperature and general corrosive service. The specification is widely adopted in the petrochemical, chemical processing, and power generation industries due to the focus on endurance and resistance to harsh conditions. Pipes under ASTM A312 are required to comply with specific criteria for mechanical properties, including tensile and yield strength, as well as hardness and elongation.
The specification outlines the requirements for different grades, such as TP304, TP316, and TP321. These are tailored with varying compositions of chemicals for specific purposes. For instance, TP304 has excellent corrosion resistance, while TP316 includes molybdenum for additional pitting resistance. The standard also specifies tolerancing issues, seamless pipes concerning wall thickness, diameter, straightness, and uniformity, which are critical for dependable functionality and serviceability. Pipes are required to undergo hydrostatic and non-destructive tests to ensure that they meet safety and quality standards.
Understanding Grade Designations: 304, 316L, and Duplex Steel Options
If stainless steel is used for specific applications, knowing the characteristics of its different grades is vital. Grade 304 is one of the most commonly used types of stainless steel, as it contains 18% chromium and 8% nickel. This gives grade 304 a high resistance against oxidation and corrosion. The stainless steel grade is economical and multifunctional, meaning it can be used both indoors and outdoors, such as in kitchens, for architectural purposes, and in chemical tanks, which adds to its popularity.
Grade 316L, the low-carbon version of 316 steel, is manufactured with 2-3% Molybdenum, which increases its resistance to chloride pitting and crevice corrosion. Low carbon content also reduces the chances of carbide precipitation during welding. 316L is suitable for marine environments, pharmaceuticals, and sectors with aggressive chemical environments due to its excellent resistance to corrosive chemicals.
Duplex stainless steels are a combination of both austenitic and ferritic structures, which offer a good balance of strength, corrosion resistance, and ductility. They also have a favorable composition of chromium, nickel, and molybdenum, which enhances their tensile strength and particular resistance to stress corrosion cracking. As a result, these steels are applied in the offshore industry, chemical processing industries, and even used in desalination plants. It is essential to study the composition and measure the mechanical and corrosion properties of these grades to make accurate engineering and manufacturing decisions.
Certification Requirements and Testing Procedures
To certify duplex stainless steels, other international standards, such as ASTM, EN, and ISO, must be complied with to validate the application and trustworthiness of these steels. For reliability purposes, these specified standards set forth minimum mechanical and chemical composition requirements, as well as a baseline for corrosion-resistant properties. These standards also ensure that the tested materials undergo tensile, impact, and hardness testing to verify mechanical validity and integrity. The corrosion resistance will be assessed by executing pitting and crevice corrosion techniques. These techniques are carried out in high-chloride environments.
Ultrasonic testing and dye penetrant examination are examples of non-destructive testing (NDT) that are also important for identifying flaws on the surface and in the subsurface. Ensuring that the microstructure meets industry requirements, such as having the proper balance of ferrite and austenite, is routinely done using advanced techniques like ferrite content assessment by magnetic induction. This is critical for achieving the desired ferrite-austenite balance. Following these certification steps allows manufacturers and engineers to ensure that the duplex stainless steels will excel in demanding applications.

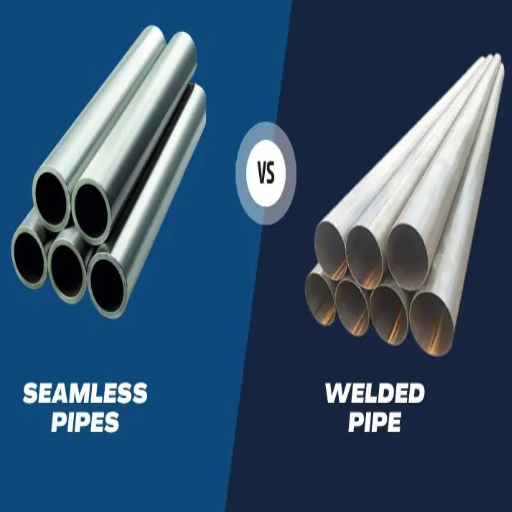

What Are the Advantages of Seamless vs. Welded Pipe in Annealed Pickled Stainless Steel?
The distinct traits of seamless pipes and welded pipes manufactured from annealed pickled stainless steel offer different advantages depending on the application:
- Seamless Pipes: Free of a welded seam, seamless pipes have a lower risk of weak points, allowing them to withstand higher internal and external pressure, as well as higher temperatures. Their superior internal surface smoothness, coupled with exceptional corrosion resistance, makes seamless pipes critical for oil and gas, as well as chemical processing industries.
- Welded Pipes: At times, welded pipes are more affordable, easier to find, and are often offered in larger diameters or longer lengths, making them a better value. Their uniformity retains strength when appropriately manufactured, and seamless pipes become easier to use in corrosive environments without high pressure.
Budget, operational demands, and the required performance will determine whether seamless or welded pipes will be used for a given application.
Structural Integrity Comparison: Seamless Stainless Steel vs. Welded Pipe
When it comes to structural integrity, seamless stainless steel pipes are often the most popular option because they have uniform construction. The absence of a weld seam gives it increased strength, allowing it to bear pressure and stress. This makes them ideal for more demanding applications in oil and gas, power generation, and chemical processing industries.
In recent years, the performance of welded pipes has dramatically improved due to new welding techniques and quality assurance technologies. Modern welded pipes are manufactured with great accuracy, and multiple inspections are conducted to ensure they meet the required industry standards. Although they may still not perform as well as seamless pipes in extreme conditions, modern welded pipes are capable of withstanding significant pressure.
It is also said that seamless pipes outperform other types in areas with high cyclic temperature changes due to their homogeneous material construction. Welded pipes, with lower production costs and available in a myriad of sizes, are better suited for services where strict or extreme conditions are not present. The compromise in performance vs cost makes welded pipes the popular choice for low-controlled environments such as structural and undersized pressure systems.
In the end, operational loads as well as the application’s safety and longevity requirements should be the basis for making the selection.
Pressure and Temperature Tolerance of Different Pipe Types
The pipe’s material, its method of manufacture, and design specifications all affect how different types of pipes withstand changes in pressure and temperature. For example, seamless pipes offer greater tolerance to temperature and pressure due to the absence of welded seams, which may be considered weak points. For these reasons, seamless pipes are widely used in highly pressurized settings, such as oil and gas transportation and heat exchanger systems.
Welded pipes, on the other hand, may not provide as much resistance to pressure, but they are excellent in moderate pressure conditions. The strength of welded joints in modern pipes has improved due to advanced manufacturing technology, enabling these pipes to withstand moderate temperatures and pressures. An example is stainless steel welded pipes, which can withstand temperatures as high as 1500°F (815°C) and variable pressure, depending on the wall thickness and grade.
In addition, for plumbing and irrigation tasks, thermoplastic pipes, including PEX and PVC, are used for low-pressure and moderate-temperature applications. The maximum temperature tolerable by PVC pipes is 140°F (60°C), while PEX pipes tolerate approximately 200°F (93°C) owing to their better thermal resistance. The correct type of pipes must be chosen based on the operating conditions and the material’s tolerance to the required performance measures.
Cost-Benefit Analysis When Choosing Between Seamless and Welded Options
When choosing between seamless and welded pipes, I pay attention to the project’s details. Due to their strength and lack of weld seams, which make them less likely to fail under stress, seamless pipes are highly preferred in high-pressure environments. Their prices tend to be on the higher side. Welded pipes tend to be lower in cost and adequate for many applications if the weld quality is up to standard. Balance between performance requirements and budget sufficiency tends to lean towards the best choice for the use.

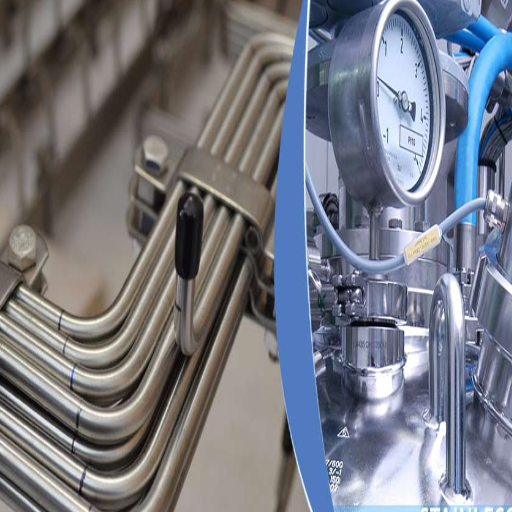

What Are the Most Common Industrial Applications for Annealed Pickled Seamless Stainless Steel Pipe?
Annealed, pickled, seamless stainless steel pipes have proven helpful in industries that demand extraordinary durability, corrosion resistance, and cleanliness. These include:
- Chemical and Petrochemical Processing: Used for the transportation of corrosive substances and chemicals because of high resistance to harsh environments.
- Food and Beverage Industry: Perfect for piping in sanitary processes in the production and transportation of consumables.
- Pharmaceutical Manufacturing: Provides a contamination-free environment during the transfer of sensitive materials.
- Oil and Gas Industry: Applied in systems that require high pressures and temperatures.
- Power Generation: Used in boilers and heat exchangers where dependable performance is required under extreme conditions.
These seamless industrial pipes are preferred due to their integrity and performance in harsh operating conditions.
Oil and Gas Industry Applications for Pickled Seamless Stainless Steel
Pickled seamless stainless steel is one of the most critical factors in the oil and gas industry due to its strength and high resistance to corrosion. The material can be used for a variety of purposes due to its ability to withstand high environmental pressures, temperatures, and extreme weather. These include:
- Pipeline Systems
Pickled seamless stainless steel pipes are used in the transmission of oil, gas, and other fluids. These pickled, seamless stainless steel pipes will not corrode, which extends their reliability and the lifespan of leak-free services, particularly in underwater or acidic environments.
- Drilling Equipment
Pickled seamless stainless steel exhibits the highest mechanical stress compatibility whilst enduring operations like drilling. Therefore, drill pipes, casings, and tubular goods are made using such steels.
- Subsea Installations
For pipelines, manifolds, risers, and other subsea structures, the component must be able to resist both saltwater corrosion and erosive flow.
- Refinery Components
Heat exchangers, reactors, and vessels used in refining systems need a proficient stainless steel for seamless welding. They are subjected to extreme temperatures and varying internal pressures; thus, seamless pickling offers unparalleled performance.
- Storage Tanks and Vessels
Pickled stainless steel allows the tank’s contents to remain uncontaminated, as it eliminates the risk of corrosion, making it a superb material for storing oil and chemicals.
- Wellhead and Christmas Tree Assemblies
The assembly ensures the operational dependability of critical systems with crude oil, water, and gas. Stainless steel parts are needed to prevent corrosion and ensure the proper operation of equipment in the oil field.
This list exemplifies the use of pickled, seamless stainless steel in applications that require safety and operational efficiency in the oil and gas industry.
Chemical Processing and High Temperature Applications
Using stainless steel, especially pickled seamless stainless steel, is crucial for deep-sea and high-temperature activities due to its unparalleled thermal stability, mechanical strength, and corrosion resistance. Below is a detailed list of its applications and characteristics in this sector:
- Corrosion Resistance in Harsh Chemicals
For pickled stainless steel, gas unpassivated chlorides, acids, and alkalis are of little concern. The ease of resistance ensures a reduction in equipment failure and corrosion while enhancing service life.
- Heat Exchangers
Due to the elevated temperature and risk of thermal fatigue, stainless steel is often used to make heat exchangers during the heating and cooling integrations of other fluids.
- Reactors and Pressure Vessels
Stainless steel’s high strength and corrosion-resistant capabilities make it an ideal material for safely and efficiently operating reactors and pressure vessels used in chemical reactions and storage at extreme temperatures and pressures.
- Piping Systems
Mechanical and non-mechanical boundaries found in seamless stainless steel pipes make them ideal for transporting highly corrosive or pure chemicals without risk of contamination for years.
- Distillation Equipment
Stainless steel is among the most preferred materials for constructing columns and other components due to its suitability for harsh humidities and high temperatures.
- Furnace and Kiln Parts
Because of the material’s thermal stability and oxidation resistance at elevated temperatures, it is used for furnace and kiln components that are continuously heated.
- Catalytic Converters
The operational reliability of stainless steel constituent parts of catalytic converters is due to the heat-resistant properties of stainless steel, even under extreme chemical reaction conditions.
The exceptional ability of stainless steel to withstand chemical and high-temperature processes made it central to the structural and operational safety needs of chemical processing plants.
Food and Pharmaceutical Industry Requirements for Stainless Steel Tubing
When it comes to the food and pharmaceutical industries, stainless steel tubing must meet stringent hygiene and safety requirements to protect the product and consumer. The materials must prevent corrosion, contamination, and prolonged exposure to chemicals or cleaning agents. An example is specific stainless steel grades, such as 304 and 316L, which provide good corrosion resistance and are easy to clean, making them compliant with favorable health legislation, like the FDA or the EU’s health requirements.
A surface finish requires thorough attention because rough or uneven surfaces can trap unwanted materials, making the area harder to clean. Stainless steel tubing is preferred, often featuring a mirror-polished finish that minimizes microbial growth, with a roughness average (Ra) of less than 0.8 micrometers. Furthermore, stainless steel must be non-reactive and able to retain its structural integrity, even when exposed to high temperatures and pressure. These conditions are usually encountered during the sterilization processes and production.
Passivation and electropolishing processes are crucial for quality control; they enhance the tubing’s anti-corrosion properties and cleanliness of the stainless steel, making it more reliable in harsh conditions and giving it sturdy endurance. With these attributes, stainless steel tubing serves a crucial purpose in maintaining the stringent cleanliness and quality standards required in food and pharmaceutical manufacturing, while ensuring that strict guidelines are adhered to.
Reference Sources
- “Innovative Manufacturing Techniques for Annealed Pickled Stainless Steel Pipes” (2021)
Published in the Journal of Materials Processing Technology, this study explores advancements in the annealing and pickling processes for stainless steel pipes. The researchers focused on optimizing annealing temperatures and pickling acid compositions to improve surface quality and reduce production costs. Using experimental evaluations, the study showed that adjusting these parameters led to enhanced corrosion resistance and a uniform finish. The methodology included controlled batch experiments and detailed material analysis using scanning electron microscopy (SEM) and energy-dispersive X-ray (EDX) systems.
- “Sustainable Methods in Stainless Steel Pipe Production” (2020)
Published in Materials Today, this paper evaluates sustainable practices in the manufacturing of annealed pickled stainless steel pipes. The researchers investigated the use of eco-friendly pickling agents to reduce environmental impact while maintaining product quality. A comparative analysis was performed on traditional and alternative pickling methods, showing promise for green chemistry approaches that generate less waste. Methodologies highlighted include lifecycle assessments and pilot-scale production trials.
- “Microstructural Analysis of Annealed Stainless Steel” (2019)
This study, featured in Metallurgical and Materials Transactions, examined how microstructural changes during annealing affect the performance of stainless steel pipes. Utilizing advanced imaging techniques, the research provided insights into grain refinement and its correlation with mechanical properties. The paper also detailed an optimized annealing schedule for achieving maximum strength and ductility.
- “Economic Evaluation of Acid Regeneration in Pickling Processes” (2022)
Published in the International Journal of Engineering Science, the paper focuses on cost-effective methods for acid regeneration during the stainless steel pickling process. The authors discussed innovative technologies for acid recovery, such as spray roasters and thermal reclaiming systems. The research revealed that implementing these technologies significantly reduces operational costs and minimizes environmental hazards.
- “Performance Optimization of Annealed Pickled Stainless Steel Pipes for Pharmaceutical Applications” (2023)
This recent study in Applied Materials Science investigated methods to enhance the performance of stainless steel pipes used in sensitive industries such as pharmaceuticals. The research evaluated various annealing temperatures and acid strengths to identify optimal conditions for achieving a smooth, hygienic surface. Key methodologies included surface roughness profiling, corrosion resistance tests, and biocompatibility studies.
These studies collectively provide a comprehensive overview of modern methodologies, key advancements, and innovative approaches in the manufacturing of annealed pickled stainless steel pipes.
Frequently Asked Questions (FAQs)
Q: What is annealed & pickled stainless steel seamless pipe, and how is it manufactured?
A: Annealed & pickled stainless steel seamless pipe is a type of industrial pipe manufactured without any welds. The process of stainless steel production involves hot rolling methods followed by annealing heat treatment (heating and controlled cooling), which relieves internal stresses, increases ductility, and improves mechanical properties. After annealing, the steel surface undergoes pickling—an acid treatment that removes surface impurities and creates a pickled surface finish. This method differs from bright annealed processes, which use controlled atmosphere furnaces to prevent oxidation, resulting in a cleaner finish. China’s leading annealed and pickled stainless steel pipe manufacturers often utilize cold drawing as a secondary process to achieve precise dimensions.
Q: What are the differences between 304 stainless steel and 316L seamless pipe?
A: Steel 304 and 316L seamless pipes are both austenitic stainless steel grades in the 300 series, but they have key differences. 304 stainless steel (18% chromium, 8% nickel) is the most common grade, offering good corrosion resistance and formability at an economical cost. 316L seamless pipe contains 2-3% molybdenum and increased nickel content, providing superior corrosion resistance, especially against chlorides and acids. The “L” in 316L indicates lower carbon content (0.03% max vs 0.08% in standard grades), which prevents carbide precipitation during welding. While 304 is suitable for general applications, 316L is preferred for chemical processing, marine environments, and pharmaceutical applications where enhanced corrosion resistance justifies its higher cost.
Q: What is duplex stainless steel pipe, and what are its applications?
A: Duplex stainless steel pipe is a special alloy steel containing approximately equal amounts of austenitic and ferritic microstructures. This combination gives duplex stainless exceptional strength (about twice that of regular austenitic grades) while maintaining good corrosion resistance. Common grades include 2205 (S32205/S31803) for general use and super duplex 2507 (S32750) for extreme environments. Duplex stainless steel pipes are primarily used in oil and gas extraction, chemical processing, pulp and paper production, desalination plants, and marine applications. Their higher strength allows for thinner wall designs, saving on material costs, while their resistance to stress corrosion cracking makes them ideal for environments containing chloride.
Q: How does the manufacturing process differ between seamless steel pipe and stainless steel welded pipe?
A: Seamless steel pipe and stainless steel welded pipe differ fundamentally in their manufacturing processes. Seamless tubes are made by piercing a solid steel billet and forming it over a mandrel, creating a hollow tube without seams. Methods include the Mannesmann process (rotary piercing), extrusion, or cold drawing. In contrast, welded pipes are formed by rolling flat steel plates or coils into cylindrical shapes and joining the edges with a weld seam. While seamless pipes offer uniform strength throughout and are preferred for high-pressure applications in the oil, gas, and chemical industries, welded pipes are more cost-effective for larger diameters. They are often used in structural applications, water transport, and lower-pressure systems. Both types can meet ASME standards when properly manufactured.
Q: What are the advantages of bright annealed versus pickled surface finishes on stainless steel seamless tube?
A: Bright annealed and pickled surface finishes represent different approaches to processing stainless steel seamless tubes. Bright annealed finishes are produced by heating steel in a controlled atmosphere, often using hydrogen or nitrogen, to prevent surface oxidation, resulting in a smooth, reflective finish. This process offers excellent corrosion resistance, superior cleanliness, and eliminates the need for additional pickling. Pickled surfaces, created through acid treatment, have a matte, non-reflective appearance with good corrosion resistance, but may exhibit microscopic pitting. Bright, annealed surfaces are preferred for applications requiring ultra-clean surfaces, such as semiconductor, pharmaceutical, and food processing equipment. Pickled surfaces are more economical and suitable for general industrial applications. Both finishes meet industry standards, but bright annealed commands a premium price.
Q: How does S32750 super duplex 2507 compare to other high alloy steel materials?
A: S32750 super duplex 2507 is a premium high alloy steel that outperforms many other metals in challenging environments. Compared to standard duplex grades, S32750 offers enhanced corrosion resistance with a PREN (Pitting Resistance Equivalent Number) exceeding 40, making it suitable for severe chloride environments. When compared to austenitic stainless steels like 316L, it provides approximately twice the yield strength and superior resistance to stress corrosion cracking. Against carbon steel and low alloy options, S32750 eliminates the need for costly coatings or regular replacement due to corrosion. Though more expensive than many alternatives, S32750 super duplex 2507 often proves more economical over the lifecycle of critical applications in offshore oil and gas, chemical processing, and desalination, where failure costs are prohibitive.
Q: What sizes and specifications are typically available for stainless steel round seamless pipe?
A: Stainless steel round seamless pipe is commonly available in a wide range of dimensions to meet various industrial needs. Outside diameters typically range from 6mm to 610mm (1/8″ to 24″), with wall thicknesses from 0.5mm to 50mm depending on the diameter. Standard lengths include 6m (20 ft) and 12m (40 ft); custom lengths are also available from steel pipe manufacturers. These pipes are produced to meet international standards, including ASTM A312/A213 (American), EN 10216-5 (European), and JIS G3459 (Japanese). Every day, steel products in this category include schedules 5S, 10S, 40S, and 80S, with the “S” designating stainless varieties. Testing certifications often include chemical analysis, mechanical properties testing, hydrostatic testing, and non-destructive examination according to ASME and other relevant codes.
Q: What are the differences between austenitic and martensitic stainless steel seamless pipes?
A: Austenitic and martensitic stainless steel represent two distinct metallurgical families with different properties and applications. Austenitic stainless (including 304 and 316L grades) contains high chromium (18-25%) and nickel (8-20%), is non-magnetic, cannot be hardened by heat treatment, offers excellent corrosion resistance, and maintains good ductility at extremely low temperatures. It’s used in food processing, chemical equipment, and cryogenic applications. Martensitic stainless (including 410, 420, and 440 grades) contains 11.5-18% chromium with little or no nickel, is magnetic, can be hardened through heat treatment to achieve high strength, but offers moderate corrosion resistance. Martensitic stainless steel is typically used in knife blades, surgical instruments, turbine blades, and valve components where hardness and wear resistance are prioritized over maximum corrosion protection.
Q: How does carbon steel seamless pipe differ from alloy steel and stainless steel options?
A: Carbon steel seamless pipe differs from alloy and stainless options primarily in composition, properties, and applications. Carbon steel contains iron with 0.05-2.0% carbon and minimal alloying elements, offering good strength and ductility at a lower cost, but limited corrosion resistance. It’s commonly used in water, gas, and oil transportation. Alloy steel incorporates elements like chromium, nickel, and molybdenum in smaller amounts than stainless, providing improved strength, toughness, and moderate corrosion resistance at mid-range prices. It’s suitable for high-pressure and high-temperature applications. Stainless steel, with a minimum of 10.5% chromium, offers superior corrosion resistance due to its chromium oxide passive layer. Different grades provide specialized properties. While carbon steel is most economical for basic applications, the higher initial investment in stainless or specialty alloy pipes often results in lower lifetime costs in corrosive environments due to reduced maintenance and longer service life.
Q: What quality standards and certifications should I look for when purchasing annealed & pickled stainless steel seamless pipe?
A: When purchasing annealed & pickled stainless steel seamless pipe, several quality standards and certifications ensure product reliability. Look for material compliance with ASTM A312/A213 (US), EN 10216-5 (European), or JIS G3459 (Japanese) specifications. Manufacturing should follow ASME Section IX qualified processes. Quality system certifications, such as ISO 9001, verify consistent manufacturing practices. For critical applications, additional certifications may include PED 2014/68/EU for pressure equipment, NACE MR0175/ISO 15156 for oil and gas applications, or DNV GL for marine use. Request material test certificates (MTCs) according to EN 10204 3.1 or 3.2, documenting chemical composition, mechanical properties, and testing results. For nuclear or aerospace applications, special certifications like ASME Section III or AS9100 may be required. Reputable steel pipe manufacturers will provide comprehensive documentation and maintain traceability throughout the production process.
