NPTF Pipe Thread Compatibility: Understanding the American National Standard Taper Pipe Thread

The American National Standard Taper Pipe Thread (NPTF) is very important for ensuring a tight and secure connection in industrial work. Many people use it, but many professionals still find it difficult to understand its uses in conjunction with other standards, making it problematic when choosing the right parts for essential systems. This article explains in detail the basics of NPTF pipe threads, explaining features and points about compatibility, and outlines critical use cases. Whether you are an old engineer or a new learner of pipe thread standards does not matter. This guide hopes to open up doors for accurate understanding in decision-making. As we uncover the mysteries that need to be revealed, we will focus on the systems optimized for accuracy and improved effectiveness.

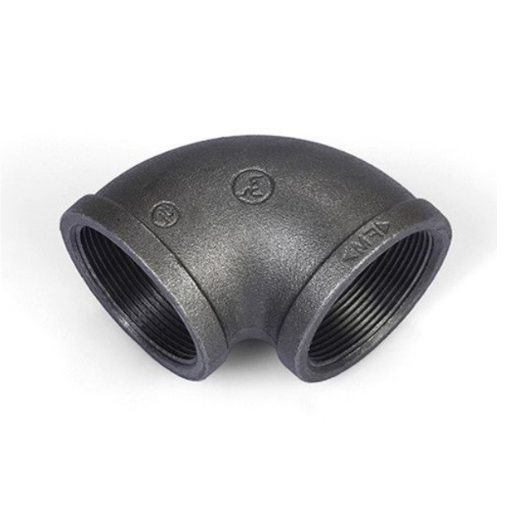

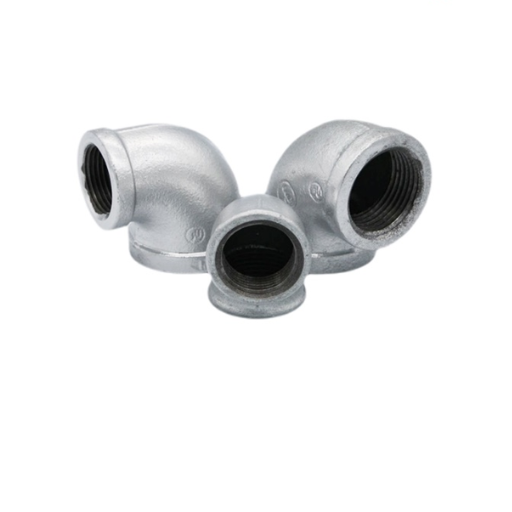

What is the NPTF Thread and How Does it Differ from Other Pipe Threads?

The National Pipe Taper Fuel (NPTF) threads are tapered pipe threads that provide dry seals and are designed to grip tightly without additional sealing materials like Teflon tape and thread sealant. Unlike NPT (National Pipe Taper) threads, which depend on sealing materials to avoid leaks, NPTF threads seal by contact of the metal surfaces on the threads, known as contact sealing. Because of this characteristic, NPTF threads are suitable for high-pressure requirements in hydraulics and fuel systems, making them particularly useful in industries where dependable seals, and thus precision, are critical. The primary distinction between NPT and NPTF threads is the accuracy of their dimensions and tolerances of the threads; in this case, tighter and more precise for leak-free conditions are used in NPTF.

Understanding the Thread Taper and Its Importance

Thread taper is essential in connecting threads because it dramatically affects the connection’s sealing ability and performance. A tapered thread has a more narrow diameter along its length, therefore providing tighter engagement as the threads are screwed together. This taper doesn’t only increase the strength of the joint, but also helps reduce leaks by providing a good-fit compression.

For NPT threads, the common taper rate is 1/16 inch per inch of thread length. This means the thread diameter decreases 1 inch for every 16 inches of thread length. This taper allows threads to be tightened and the contact area to increase, thus providing a better seal. NPTF threads also have the same taper rate but are finely machined to allow metal-to-metal contact without needing sealants.

Thread taper plays an important role in high-pressure applications. Studies show that a properly tapered NPT or NPTF thread can sustain pressure beyond ten thousand PSI, which is perfect for hydraulic systems and gas connections. If tapering is not done, the likelihood of thread engagement becoming inconsistent is very high. This results in an increased risk of leaks or joint failure under pressure.

Other studies also mention the importance of taper, like ASME B1.20.1 for NPT threads, which sets rigid requirements for controlling the angle of thread, pitch, and taper for certain industrial applications. Making these outlines and incorporating proper thread taper allows engineers to build sturdy and leakproof connectors in extreme conditions.

Differences Between NPTF and NPT Threads

Parameter	NPT	NPTF
Sealant Requirement	Requires sealant (e.g., Teflon tape)	No sealant needed (dry seal)
Leakproof Seal	Achieved with sealant	Achieved through thread deformation
Thread Crest and Root	Allows clearance	Interference fit for mechanical seal
Applications	General-purpose	High-pressure, high-temperature, critical
Reuse	Can be reused with inspection	Reuse not recommended
Standard	ANSI B1.20.1	ANSI B1.20.3
Taper Angle	60°	60°
Major Diameter Tolerance	Wider tolerance	Narrower tolerance
Spiral Leak Path	Exists without sealant	Eliminated by crest/root interference
Visual Difference	Identical appearance	Identical appearance

Applications and Uses of NPTF Threads in Industry

Industry/Application	Use of NPTF Threads
Fuel Systems	Leakproof connections in fuel lines
Hydraulic Equipment	High-pressure hydraulic systems
Pneumatic Systems	Air compressors and pneumatic tools
Oil and Chemical Industries	Handling dangerous or fluctuating fluids
Aerospace Applications	Aircraft fuel and hydraulic systems
High-Pressure Piping	Transporting natural gas and caustic fluids
Critical Environments	Where sealants may contaminate systems

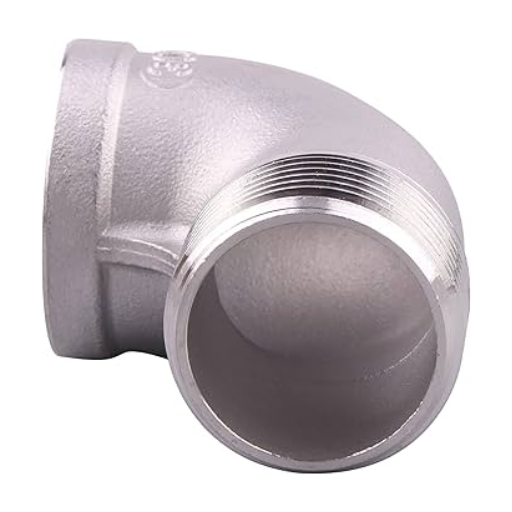

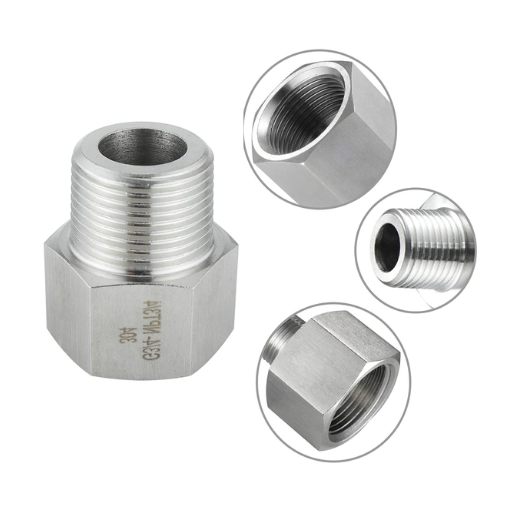

How Does NPTF Thread Compatibility Affect Fitting and Sealant?

The compatibility of the NPTF thread is known to affect the performance of the fitting and, in a lot of cases, remove the need for other sealants. The specific construction of NPTF threads permits the formation of a dry seal, since crest and root penetration prevent leaking without thread tape and dope. Because of this attribute, NPTF threads are suited for positions requiring steadfast, dependable, and self-sealing joints as they eliminate maintenance and possible leakage points.

The Role of Thread Sealant in Achieving a Leak-Free Seal

Key Point	Details
Primary Function	Fills gaps in threads to prevent leaks
Lubrication	Ease the assembly and disassembly of threads
Material Composition	PTFE, anaerobic resins, or silicone
Application Types	Paste or tape for different needs
Curing Process	Anaerobic sealants cure without oxygen
Temperature Resistance	Withstands extreme temperature variations
Pressure Handling	Suitable for high-pressure environments
Chemical Stability	Resists solvents and chemicals
Preparation	Clean, degrease, and dry threads before use
Over-Application Risk	Excess sealant can clog or contaminate systems

Ensuring Seal Integrity with Proper Thread Connections

Adequate thread sealing, or the use of precision tapered threads, such as NPTF, ensures no gaps that could permit leakage or system failure, which could be problematic.

Why is the National Pipe Taper Fuel Standard Critical for NPTF Threads?

NPTF threads rely on the National Pipe Taper Fuel (NPTF) standard for fuel fittings because it contributes to complex high-pressure systems’ operational compatibility and trustworthiness. This standard ensures the provision of thread spacing and thread cutting technology so that slip joints can be made that do not require external sealing gaskets to achieve proper sealing. This eliminates the need for additional sealing compounds. Compliance with the standard enables vendors to guarantee system dependability because fuel systems are guaranteed to be leak-free, which reduces undesired incidents and promotes safe systems.

Understanding the American National Standard for Tapered Pipe Threads

The American National Standard for Tapered Pipe Threads has multiple essential features that must be incorporated within a single unified standard to achieve exactness and reliability in performance, operation, and execution. These features state the precise pipe thread dimensions and formulate the standards that guarantee the threads’ sustainability, resilience against manipulation, and a watertight seal when combined. After sustained research, five components of the standard were isolated:

1. Taper Angle

The angle to form its profile has to be 1°47’24”, which is equal to 3/4 inch per foot.

2. Thread Pitch

This per-inch measurement is defined according to the pipe size, which ranges from 18 to 14, 11.5 to 8 threads per inch.

3. Thread Depth

The depth of the threads is set to control the amount of overlap and strength in the assembled parts. This is an essential mode of failure governing the pressure under which it may fail.

4. Crest and Root Requirements

The statically important thread ‘crest and root’ features are smooth-sharpened to assist the gap tightening, along with stress raisers and other factors that would improve the overall performance.

5. Hand-Tight Engagement

The standard states operational alignment should be carried out until hand-tight for three full rotations. This achieves optimal alignment while ensuring the remaining gaps provide adequate compression for sealing upon rotation.

Following these practices ensures that the pipe threads manufactured under this standard pass the set benchmarks and tests for safety, reliability, and efficiency across many industries, including high-pressure ones.

How ASME Standards Impact NPTF Pipe Thread Usage

Key Point	Details
Standard Reference	ASME B1.20.3 governs NPTF threads
Leakproof Design	Ensures dryseal without additional sealants
Taper Specification	3/4 inch per foot taper for tight fit
Thread Inspection	Requires precise gaging for compliance
Material Compatibility	Standards ensure compatibility with materials
Pressure Applications	Suitable for high-pressure environments
Reuse Guidelines	Limited reuse due to thread deformation
Thread Tolerances	Tighter tolerances than NPT threads
Critical Applications	Used where contamination must be avoided
Global Standards Alignment	Facilitates international compatibility

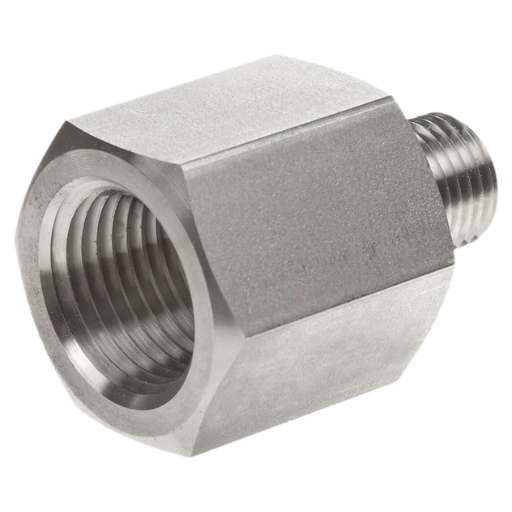

What are the Challenges with NPTF and NPT Pipe Threads?

Creating a seal is a key problem with the NPTF and NPT pipe thread types. NPTF dry seal threads are intended to seal a cavity by deforming the threads, which seal rails apply additional sealing materials such as Teflon tape or thread sealant to prevent leakage. Wrong assembly may result in leakage, Reduction in holding pressure, or even total system failure. Ensuring compatibility within the NPTF and NPTF components also presents a problem because these two thread types cannot be interchanged due to their unique designs and intended functions. Threads’ misuse or mistaken pairing may cause unfit connections and poor functionality.

Common Issues with NPT and NPTF Thread Compatibility

Key Issue	Details
Sealant Dependency	NPT requires sealant; NPTF does not
Leakage Risk	NPT threads may leak in NPTF systems
Thread Damage	NPTF threads can deform NPT threads
Improper Fit	NPT and NPTF threads differ in tolerances
Pressure Tolerance	NPT threads fail under NPTF high pressure
Sealant Contamination	Sealant in NPTF systems may cause issues
Mixing Threads	Leads to inconsistent sealing performance
Maintenance Challenges	Hard to identify and replace mixed threads
Application Mismatch	NPT unsuitable for critical NPTF applications
Visual Similarity	Causes confusion and incorrect usage

Resolving Leakage Problems in Thread Connections

In addressing leakage issues with threaded pipe fittings, as a best practice, I start with clean threads without any foreign materials before assembly. I select the correct sealant or threaded tape and apply it uniformly to form a tight bond and achieve favorable results. I ensure all steps are completed as required for their specific application. When adjusting the connection, I adhere to the prescribed torque values so that the connection is neither too slack nor too tight. To ensure a tight seal, I put the pipe to the test for pressure and see if any leaks are evident. If leaks do not disappear, I verify that the threads in question are properly fitting and inspect the levels of damage and wear.

Adjustments for Different Thread Types

Their unique features and needs should be considered when dealing with different thread types. Each thread type may require specific steps for proper fitting, sealing, and effective operation. Below are five common thread types and the modifications needed to use them effectively:

1. NPT (National Pipe Thread)

With NPT threads, sufficient thread sealant or tape is required as these threads seal by means of interference fit. Make sure that the threads mesh adequately and are also clamped at the desired torque to avoid leaks.

2. BSP (British Standard Pipe)

BSP threads come in Parallel (BSPP) and Tapered (BSPT). BSPT threads shall be sealed using a sealant. BSPP threads need a sealing O-ring or gasket; therefore, inspect the sealing surface before applying more head.

3. UN (Unified National)

Preparation of these threads usually involves some form of adjusting to aid with alignments and some form of anti-seize oil. For these threads, the dose of tangential force, which should not go beyond the stripping threshold, needs to be very carefully considered.

4. ISO Metric Threads

As threads of metric denomination are of a more universally accepted standard globally, the alignment during use time should be correct. Depending on type of threads, they require screws, washers or seals which might impede issuel of leaks so proactive mesure must be taken with put sealing elements.

5. ACME Threads

Threads of this type are frequently utilized in construction and other heavy-load applications. They require care in alignment and a check for damage or wear, as their wide design can become less accurate over time. Lubrication is essential for smooth operation.

Adjusting these thread types can enhance the dependability of connections. Follow best practices set by the manufacturer.

How Do British Standard Pipe Threads Compare to NPTF Pipe Threads?

The distinguishing factors between BSP and NPTF are their thread design and sealing method. BSP threads were developed in Europe and Asia and have a thread angle of 55 degrees, while NPTF threads are used in North America and have a thread angle of 60 degrees. BSP threads need sealing with a gasket or O-ring, whereas NPTF threads have a mechanical seal formed via threaded connection tightening, closing the gap. Remember, however, that these threads cannot be used interchangeably due to differences in angle, thread pitch, and thread profile. Be sure to select the correct parts.

Comparing Metric Thread and NPTF Standards

Parameter	Metric Thread	NPTF Thread
Standard	ISO Metric (ISO 724)	ANSI/ASME B1.20.3
Thread Angle	60 degrees	60 degrees
Measurement Unit	Millimeters	Inches
Sealing Mechanism	Requires O-rings or sealants	Metal-to-metal dry seal
Thread Type	Parallel	Tapered
Applications	General-purpose mechanical connections	High-pressure, fuel, and hydraulic systems
Tolerance	Standardized for general use	Tighter tolerances for leak prevention
Pitch	Distance between threads in mm	Threads per inch (TPI)
Usage Region	Common in Europe and globally	Common in North America
Compatibility	Not compatible with tapered threads	Not compatible with Metric threads

Understanding Thread Pitch and Thread Angle Differences

Parameter	Description
Thread Pitch	Distance between adjacent thread crests
Metric Pitch	Measured in millimeters
Imperial Pitch	Measured as threads per inch (TPI)
Thread Angle	Angle between thread flanks
Standard Thread Angle	Commonly 60 degrees
Specialized Thread Angles	Vary for specific applications (e.g., NPT)
Impact on Fit	Pitch and angle must match for compatibility
Measurement Tools	Pitch gauge, calipers, or optical comparator
Fine Threads	Smaller pitch, closer threads
Coarse Threads	Larger pitch, deeper threads

References

1. Oshwin Blog: NPTF Pipe Thread Technical Data and Compatibility – Provides detailed technical data and compatibility information for NPTF threads.

2. Fittings.Space: NPT and NPTF Fittings – Explains the standards and differences between NPT and NPTF threads, including their compatibility.

3. Industrial Specialties Manufacturing: NPT & NPTF Tapered Threads – Discusses the technical aspects and leakproof characteristics of NPT and NPTF threads.

Frequently Asked Questions (FAQ)

Q: What is the difference between NPT and NPTF pipe threads?

A: NPT and NPTF pipe threads differ mainly in their sealing capabilities. NPT threads are tapered and require thread tape or sealant for a leak-proof connection, while NPTF threads, also known as Dryseal, have crest and root heights adjusted to provide a seal without additional materials.

Q: How do national pipe threads work when creating a seal?

A: National pipe threads work using taper threads that decrease in diameter along the thread length, allowing the male thread to wedge into the female thread. This wedging effect helps create a seal, especially when combined with thread tape or sealant.

Q: Can NPTF connections be used interchangeably with NPT fittings?

A: While NPTF connections can fit into NPT fittings due to their similar thread form, they are not always interchangeable for sealing purposes. NPTF threads are designed to seal without additional materials, whereas NPT threads typically require sealant.

Q: What is the significance of threads per inch in pipe threads?

A: Threads per inch (TPI) is a critical aspect of pipe threads. It indicates how many threads are present in one inch of the thread. TPI helps ensure compatibility and proper sealing between pipes and fittings according to the thread standard.

Q: Are NPT threads straight or tapered?

A: NPT threads are tapered, which means their diameter decreases along the length of the thread. This tapering is essential for creating a tight seal, especially when applying thread tape or sealant.

Q: What role does thread tape play in NPT connections?

A: Thread tape, often used in NPT connections, fills the gaps between the male and female threads. It enhances the seal created by the taper threads, helping prevent leaks.

Q: How do crest and root configurations affect thread sealing?

A: Crest and root configurations are crucial in thread sealing as they determine how well the threads engage. Adjusted crest and root heights in NPTF threads allow for a dry seal by ensuring better contact between the internal and external threads.

Q: What is a standard for tapered threads used in pipe fittings?

A: The standard for tapered threads used in pipe fittings is the American National Standard Taper Pipe Thread, which includes specifications for NPT and NPTF threads. It ensures compatibility and performance across different pipes and fittings.

Q: Are parallel threads the same as straight threads?

A: Parallel threads, often referred to as straight threads, do not taper and maintain a constant diameter along their length. They are typically used in applications where other means, such as gaskets, achieve a seal.

Q: What is the role of male and female threads in pipe connections?

A: External male threads screw into internal female threads. Proper engagement between these threads ensures a secure connection, with the number of threads per inch and taper affecting the sealing ability.
