Marcus Chen experienced an intense emotional reaction after receiving a quote from an audio cable manufacturer through which he learned that his engineering team had specified an OFC copper interconnect, which cost three times the price of standard copper cable. The procurement manager expected to receive an explanation. They needed to determine whether premium costs resulted from actual value or from marketing strategies that used audiophile myths to sell products.
You must address this specific issue when selecting materials for electronic devices, semiconductor machinery, and high-quality audio equipment. The price difference between oxygen-free copper and standard electrolytic tough pitch copper represents the only distinction between these two materials. Components that maintain their performance in essential functions represent one category of devices, while another group consists of products that cause performance differences, which should not be permitted.
The guide delivers technical details that help users specify oxygen-free copper tube dimensions. The OFC system provides specific performance details, but C10100 reaches its peak performance level at C10200 while hydrogen embrittlement must be avoided during production because ASTM-compliant manufacturing at Zhongzheng maintains your essential conductivity and purity requirements. The knowledge of specifications will enable you to choose the correct grade of tube for vacuum chambers, audio cables, and heat exchangers.

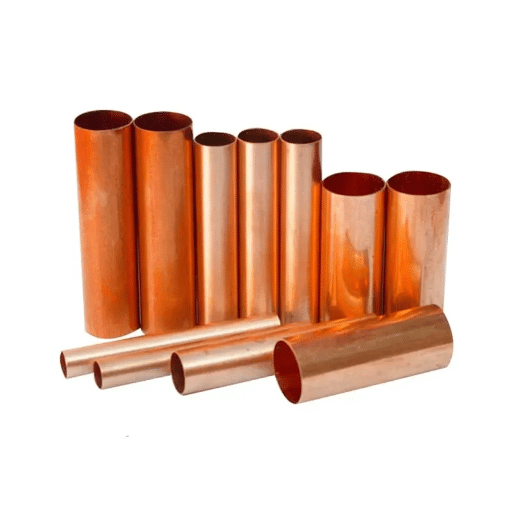

What is an oxygen-free copper tube?
Defining Characteristics of OFC
Oxygen-free copper tube is high-purity copper tubing that manufacturers use to create tubes that contain less than 10 parts per million of oxygen. The material, which exists as UNS C10100 (OFHC) and C10200 (Oxygen-Free Electronic), exists in both these designs. OFC production requires controlled atmospheric conditions that eliminate oxygen contamination to produce a product that lacks oxygen.
Key specifications that define oxygen-free copper tube:
- Copper purity: Minimum 99.99% for C10100, 99.95% for C10200
- Oxygen content: Less than 5 ppm for C10100, less than 10 ppm for C10200
- Electrical conductivity: 101% IACS minimum for C10100, 100% IACS for C10200
- Density: 8.94 g/cm³ (identical to all pure copper grades)
- Melting point: 1083°C
The manufacturing process begins with electrolytic refining of copper cathodes. The casting process and subsequent processing for OFC grades take place in either a protective atmosphere or a vacuum environment to stop oxide creation. The controlled environment processing requires additional expenses because it removes oxide inclusions that form microscopic gaps in the copper matrix. The result is a material with superior electrical and thermal conductivity, exceptional ductility, and critical performance characteristics for vacuum and cryogenic applications.
ASTM Standards for OFC Tube
Oxygen-free copper tube production and testing follow specific ASTM standards that ensure consistency across suppliers:
ASTM B68 — Seamless Copper Tube, Bright Annealed
- Covers seamless tube in O60 (soft annealed) temper
- Specifies dimensional tolerances, surface finish requirements
- Typical applications: refrigeration, instrumentation, vacuum systems
ASTM B75 — Seamless Copper Tube
- General seamless tube specification covering multiple tempers
- Includes O60 (annealed), H58 (drawn general purpose), H80 (hard-drawn)
- Pressure ratings based on wall thickness and temper
ASTM B152 — Copper Sheet, Strip, Plate, and Rolled Bar
- Reference for chemical composition requirements
- UNS C10100 and C10200 composition limits
For international projects, EN 13600 (European) and JIS H3300 (Japanese) standards provide equivalent specifications. Zhongzheng manufactures OFC tube to ASTM B68 and B75 specifications with full material certification, ensuring global project compliance.
How OFC Differs from Standard ETP Copper
Standard electrolytic tough pitch copper (C11000, ETP) dominates general electrical and plumbing applications because it offers adequate performance at lower cost. The manufacturing process establishes the main distinction between the two products. ETP copper is cast in open air, which enables the material to absorb oxygen and develop copper oxide inclusions throughout its structure.
These oxide inclusions create three practical limitations:
- Reduced conductivity: ETP copper typically achieves 100% IACS, while C10100 OFC reaches 101% IACS. This 1% difference matters in high-current applications and precision signal transmission.
- Hydrogen embrittlement vulnerability: When heated in hydrogen-rich atmospheres (brazing, certain thermal processes), ETP copper can experience embrittlement as hydrogen reacts with copper oxides to form water vapor at grain boundaries. OFC’s minimal oxygen content eliminates this risk.
- Vacuum outgassing: In ultra-high vacuum (UHV) applications, ETP copper releases trapped gases from oxide inclusions. OFC provides outgassing rates up to 10× lower, critical for semiconductor manufacturing and particle physics equipment.
C10100 vs C10200: Selecting the Right Grade
The semiconductor equipment team at Sarah Kim’s work selected OFC tubing for their upcoming deposition chamber project. She needed to decide between two options, which would increase expenses but did not provide any clear advantages. C10100 cost 15% more than C10200. The engineering director needed proof that the purity difference between two materials supported the cost difference between them. The answer required understanding exactly what each grade delivers — and where performance thresholds demand the higher specification.
Chemical Composition Comparison
| Element | UNS C10100 (OFHC) | UNS C10200 (Oxygen-Free) |
|---|---|---|
| Copper (min) | 99.99% | 99.95% |
| Oxygen (max) | 5 ppm | 10 ppm |
| Silver | Included in Cu | Included in Cu |
| Other impurities (total) | 0.01% max | 0.05% max |
| Tellurium | 0.0005% max | 0.0005% max |
| Selenium | 0.0005% max | 0.0005% max |
The 0.04% purity difference between C10100 and C10200 translates to measurable performance characteristics. C10100’s tighter impurity limits ensure consistent electrical conductivity at the theoretical maximum. C10200 permits slightly higher trace element content that can affect conductivity in applications where every fraction of a percentage point matters.
Performance Differences in Real Applications
Electrical conductivity represents the most significant practical difference. C10100 guarantees 101% IACS minimum conductivity. C10200 guarantees 100% IACS. This distinction matters for:
- High-fidelity audio cable conductors where signal integrity is paramount
- Particle accelerator RF cavities where efficiency losses multiply across kilometers of conductor
- Precision current shunts and measurement equipment requiring calibrated resistance
Vacuum outgassing shows measurable difference between grades. Both C10100 and C10200 outperform ETP copper dramatically, but C10100 achieves lower outgassing rates in the 10⁻¹² mbar·L/s·cm² range versus C10200’s 10⁻¹¹ range. For UHV systems operating below 10⁻⁹ mbar, this difference determines whether chamber base pressure targets are achievable.
Cost differential typically runs 10-20% between C10100 and C10200, with both grades commanding 15-30% premium over standard ETP copper. This premium reflects the controlled-atmosphere processing required throughout manufacturing.
When to Specify Each Grade
Specify UNS C10100 (OFHC) when:
- Semiconductor manufacturing equipment requiring UHV compatibility
- Premium audio cable and interconnect applications
- Particle accelerator components and RF systems
- Cryogenic research apparatus where thermal conductivity at low temperatures is critical
- Applications requiring absolute maximum electrical conductivity
- Systems where brazing in hydrogen atmosphere cannot be avoided
Specify UNS C10200 when:
- General electronics and electrical applications requiring high reliability
- Heat exchangers and thermal management systems
- Industrial applications where OFC benefits are required but maximum purity isn’t critical
- Cost-sensitive projects where 100% IACS conductivity is sufficient
Specify ETP (C11000) when:
- Standard electrical wiring and bus bar applications
- Plumbing and architectural installations
- Non-critical applications where 15-30% cost savings outweigh conductivity benefits

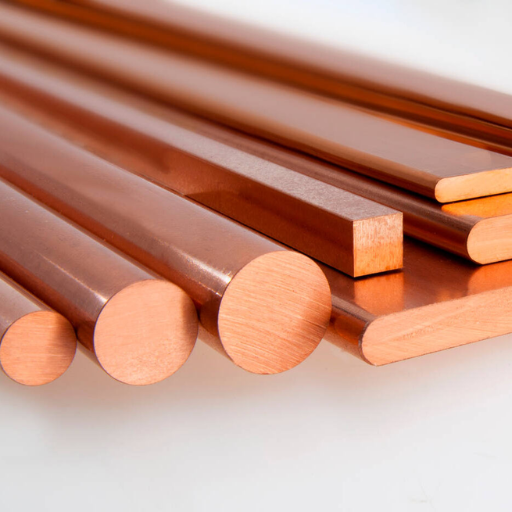

Applications by Industry
High-Fidelity Audio Equipment
The controversy surrounding oxygen-free copper in audio applications generates more heat than light. Objective measurement confirms that OFC’s 101% IACS conductivity versus ETP’s 100% represents a measurable 1% improvement. Subjectively, whether this translates to audible differences remains debated among engineers and audiophiles.
What is not debatable: OFC’s consistency and freedom from oxide inclusions ensures stable performance over decades of service. Premium audio cable manufacturers specify C10100 OFC tube for:
- Interconnect cable center conductors
- Speaker cable construction
- Internal component wiring in high-end amplifiers
The skin effect — where higher frequency signals travel predominantly in the conductor’s outer layer — makes surface quality critical. OFC’s uniform grain structure without oxide discontinuities provides consistent impedance characteristics across the audio frequency spectrum.
Semiconductor Manufacturing
Current semiconductor manufacturing requires materials which can maintain necessary clean conditions for processes that use sub-10 nanometer technology. OFC copper tube serves critical functions:
Vacuum chamber components: Process chambers operate at pressures below 10⁻⁹ mbar. OFC’s low outgassing rate prevents contamination that would destroy wafer yields. C10100 specifically is specified for the most demanding UHV applications.
Process gas delivery systems: High-purity gases for deposition and etching processes travel through OFC tubing to prevent contamination. The material’s compatibility with high-purity gases and resistance to hydrogen embrittlement during system assembly makes it indispensable.
Thermal management: Copper’s 391 W/m·K thermal conductivity (higher than aluminum’s 237 W/m·K) enables precise temperature control in process equipment. OFC’s consistency ensures predictable thermal performance across production runs.
Heat Exchangers and Thermal Management
Oxygen-free copper tube provides exceptional thermal performance for applications requiring maximum heat transfer efficiency:
- Laser cooling systems: High-power industrial and medical lasers require cooling circuits that maintain precise temperature control. OFC’s thermal conductivity and corrosion resistance ensure long-term reliability.
- CPU/GPU thermal solutions: High-performance computing hardware increasingly uses vapor chamber and heat pipe designs incorporating OFC tube for thermal spreading.
- Cryogenic heat exchangers: At liquid nitrogen temperatures (77K) and below, OFC maintains superior thermal conductivity compared to aluminum, which becomes brittle and loses conductive efficiency.
For applications comparing copper versus stainless steel heat exchanger options, copper provides roughly 20× higher thermal conductivity. However, 304 stainless steel pipe for heat exchangers remains the better choice when corrosion resistance in chloride environments is required.
Scientific and Research Equipment
Particle accelerator RF cavities: Copper’s conductivity at microwave frequencies makes it essential for particle accelerator construction. OFC’s purity ensures maximum energy transfer efficiency in RF systems spanning kilometers of beamline.
Cryogenic research apparatus: Superconducting magnet systems and low-temperature physics experiments rely on OFC for thermal isolation and current carrying at cryogenic temperatures.
Mass spectrometer components: The extreme vacuum requirements of mass spectrometry demand materials with minimal outgassing. OFC components maintain system integrity during bake-out cycles and extended operation.
Telescope mirror substrates: Large astronomical mirrors use OFC for thermal management and structural support due to its thermal stability and machinability.
Automotive and Aerospace
EV battery thermal management: Electric vehicle battery packs require sophisticated cooling systems. OFC tube provides the thermal conductivity needed for liquid cooling circuits managing cell temperatures within narrow operating windows.
Aircraft avionics cooling: High-reliability aerospace electronics use OFC heat exchangers and cold plates to manage thermal loads in confined spaces.
Satellite thermal control: The space environment demands materials with low outgassing and stable thermal properties. OFC’s vacuum compatibility and predictable performance make it suitable for spacecraft thermal management systems.
Fabrication and Joining Guidelines
Brazing Considerations and Hydrogen Embrittlement Prevention
The greatest risk in fabricating OFC components isn’t the material itself — it’s improper brazing procedure. Hydrogen embrittlement represents the most common cause of OFC tube failure during assembly.
The mechanism: Even OFC contains trace oxygen. When heated in hydrogen-rich atmospheres without proper flux or protective measures, hydrogen diffuses into the copper and reacts with any remaining oxygen to form water vapor at grain boundaries. This creates microcracks that compromise structural integrity.
Recommended filler metals:
- BCuP series (phosphorus-bearing): Self-fluxing on copper, phosphorus content reduces copper oxides without requiring external hydrogen atmosphere
- BAg series (silver-bearing): Use with proper flux in protective atmosphere (nitrogen or argon, NOT hydrogen)
Avoid: Brazing in pure hydrogen atmosphere unless specific procedures are followed. Even with OFC, hydrogen brazing requires careful temperature control and post-braze annealing.
Best practice: For critical applications, specify brazing in inert atmosphere (argon or nitrogen) with BAg-7 or similar filler metal. This eliminates hydrogen embrittlement risk entirely.
Soldering OFC Tube
Standard tin-lead and lead-free solders work effectively with OFC copper. Key considerations:
- Flux selection: Use rosin-based flux for electrical applications, water-soluble flux for plumbing (must be thoroughly cleaned post-soldering)
- Temperature control: Avoid overheating that can cause grain growth and reduced ductility
- Joint strength: Soldered joints provide adequate strength for low-stress applications; mechanical support required for pressurized systems
Forming and Bending
OFC copper tube in annealed temper (O60) offers excellent formability. Bending guidelines:
| Tube OD | Minimum Bend Radius (O60 temper) |
|---|---|
| 1/4″ (6.35mm) | 1/2″ (12.7mm) |
| 3/8″ (9.53mm) | 3/4″ (19.1mm) |
| 1/2″ (12.7mm) | 1″ (25.4mm) |
| 3/4″ (19.1mm) | 2″ (50.8mm) |
| 1″ (25.4mm) | 3″ (76.2mm) |
Springback compensation: Copper work-hardens through the process of bending. The expected springback range varies between 5 and 10 degrees based on the bend radius and wall thickness of the material. The hard-drawn temper (H80) needs larger bend radii because the material will break if people attempt to bend it beyond safe limits.
Coil winding: OFC tube is frequently supplied in coil form for refrigeration and HVAC applications. Maintain consistent tension while winding coils on-site because operators should prevent kinking. The pre-annealed O60 temper serves as the ideal choice for creating complex coil configurations.
Cleaning and Handling
Post-fabrication cleaning ensures surface integrity:
- Remove all flux residues with appropriate solvent
- Clean cutting oils and lubricants with isopropyl alcohol or degreasing solution
- Passivate surfaces with citric acid solution if required for critical applications
- Dry thoroughly before vacuum system assembly
Storage recommendations: Store OFC tube in original packaging until use. If exposed to atmosphere for extended periods, light tarnish may form. This oxide layer is typically self-limiting and doesn’t affect conductivity significantly, but can be removed with mild abrasive if cosmetic appearance is critical.
Quality Control and Testing
Chemical Analysis Verification
Zhongzheng verifies every heat of OFC material through optical emission spectrometry before production begins. This analysis confirms:
- Copper content meeting 99.99% minimum for C10100, 99.95% for C10200
- Trace element limits for iron, nickel, zinc, lead within specification
- Oxygen content verification through inert gas fusion analysis
Mill Test Reports (MTRs) include complete chemical composition data with traceability to raw material batch numbers.
Physical Testing
Electrical conductivity measurement: Eddy current testing verifies conductivity meets 101% IACS minimum for C10100, 100% IACS for C10200. This testing is performed on sample specimens from each production lot.
Mechanical testing by temper:
| Temper | Tensile Strength (MPa) | Elongation (%) |
|---|---|---|
| O60 (Annealed) | 220-260 | 45-55 |
| H58 (Drawn) | 250-310 | 25-40 |
| H80 (Hard) | 310-380 | 8-20 |
Hardness verification: Rockwell or Vickers hardness testing confirms temper designation matches mechanical requirements.
Specialized Testing for Critical Applications
Outgassing rate testing: For vacuum applications, samples undergo thermal vacuum testing per AVS standards. Testing measures gas evolution rates at elevated temperatures to verify UHV compatibility.
Eddy current testing: Seamless tube integrity is verified through full-length eddy current inspection, detecting surface and near-surface discontinuities.
Dimensional inspection: OD, wall thickness, and straightness measurements confirm compliance with ASTM B68/B75 tolerances. Precision applications may require additional dimensional certification.
Documentation Package
Standard documentation includes:
- Mill Test Report (MTR): Chemical composition, mechanical properties, heat number
- Dimensional inspection report: OD, wall thickness, length measurements
- Certificate of compliance: ASTM B68 or B75 conformance certification
- EN 10204 3.1 certification: Available upon request for European project requirements
Full traceability from raw material certificate to finished product is maintained for every order.
Procurement and Specification Best Practices
Complete Specification Elements
When requesting quotation for oxygen-free copper tube, include these specification elements to ensure accurate quoting and compliant delivery:
- UNS designation: C10100 or C10200 (specify OFHC for C10100)
- Temper: O60 (soft annealed), H58 (drawn general purpose), or H80 (hard-drawn)
- ASTM standard: B68 (bright annealed) or B75 (general seamless tube)
- Form: Straight lengths or coil (specify coil ID if coiled)
- Dimensions: OD × wall thickness × length (example: 12.7mm OD × 0.89mm wall × 6m lengths)
- Surface finish: Bright annealed, mill finish, or specific Ra requirement
- Certification requirements: Standard MTR, EN 10204 3.1, third-party inspection
- Quantity: Minimum order quantities apply; larger quantities reduce per-unit cost
- Delivery timeline: Standard OFC tube lead times run 3-5 weeks; precision tolerances add 1-2 weeks
Cost Considerations
Understanding cost drivers enables intelligent grade selection:
OFC premium over ETP: 15-30% higher material cost reflects controlled-atmosphere processing throughout manufacturing.
C10100 vs C10200 differential: 10-20% premium for C10100’s higher purity. Justify this premium when applications require maximum conductivity or UHV compatibility.
Volume impact: Standard mill minimums for OFC tube typically start at 500kg per size. Larger quantities (5,000kg+) achieve significant per-kilogram savings.
Form factor: Coil-form tube typically costs 5-10% more than straight lengths due to additional processing. However, coil form reduces field joints and installation labor for long runs.
Lead Time Planning
Standard lead times for Zhongzheng OFC tube production:
- Standard OFC tube, common sizes: 3-5 weeks
- Precision tolerances (tighter than ASTM): Add 1-2 weeks
- Large volume orders (10,000kg+): 6-8 weeks
- Seasonal considerations: Chinese New Year (late January/early February) adds 2-3 weeks to all lead times
Plan procurement schedules with these timelines to avoid project delays. Zhongzheng maintains limited inventory of common sizes for urgent requirements.
Frequently Asked Questions
What is the difference between OFC and regular copper?
Oxygen-free copper contains less than 10 ppm oxygen (C10200) or less than 5 ppm (C10100), compared to 200-400 ppm in standard ETP copper. This purity difference establishes 1% greater electrical conductivity (101% IACS vs 100%) while it eliminates the danger of hydrogen embrittlement during brazing and it decreases vacuum application outgassing by 10 times. The price of OFC exceeds ETP copper by 15 to 30 percent.
Why does oxygen-free copper provide superior performance in audio equipment?
OFC’s 101% IACS conductivity provides measurably better electrical performance than ETP’s 100% IACS. OFC demonstrates uniform grain structure which contains no oxide inclusions to maintain constant impedance properties. OFC delivers stability and long-lasting performance which justifies its higher cost compared to regular copper for audio cables that require precise signal transmission.
Can you braze oxygen-free copper?
Yes, but hydrogen atmosphere brazing needs correct safety measures. Use BCuP series self-fluxing filler metals or BAg series with appropriate flux in inert atmosphere (nitrogen or argon). OFC contains minimal oxygen content which reacts with hydrogen at high temperatures to produce embrittlement.
What is the conductivity of oxygen-free copper?
C10100 OFC guarantees minimum 101% IACS conductivity. C10200 guarantees 100% IACS. The standard ETP copper (C11000) achieves 100% IACS according to its standard performance. The IACS standard (International Annealed Copper Standard) defines 100% as the conductivity of pure annealed copper at 20°C.
What does C10100 mean?
The term C10100 refers to the UNS C10100 designation which designates Oxygen-Free High Conductivity OFHC copper. The material requires a minimum purity of 99.99% copper with oxygen levels restricted to below 5 parts per million. C10100 offers the highest electrical conductivity of any commercially available copper grade at 101% IACS minimum.
Is oxygen-free copper worth the extra cost?
The performance advantages of OFC in crucial applications like semiconductor production UHV systems high-end audio equipment and particle physics instruments justify its 15 to 30 percent increased cost. For standard electrical wiring and plumbing where 100% IACS conductivity is sufficient ETP copper delivers sufficient performance at a more affordable price. The selection process requires analysis of the application’s needs for conductivity and vacuum compatibility and brazing properties.
Can oxygen-free copper be used for plumbing?
Plumbers can use OFC for their projects because it meets all needed plumbing requirements yet ETP copper remains the preferred choice because it provides similar performance at a lower price. OFC becomes the only viable plumbing option for systems that need complete protection against corrosion or delivery of ultra-pure water which must remain uncontaminated.
What is the melting point of oxygen-free copper?
All pure copper grades share a melting point of 1083°C (1981°F). The melting point remains unchanged regardless of oxygen presence. The lower oxygen content in OFC enables processing at elevated temperatures which prevents oxide scaling during specific brazing and thermal treatment methods.
How do you prevent hydrogen embrittlement in OFC?
The brazing process requires an inert atmosphere which uses either argon or nitrogen instead of hydrogen gas. The phosphorus-bearing filler metals from BCuP series products self-flux on copper when they are used as filler materials. When hydrogen atmosphere brazing becomes necessarythen operators must manage temperature precisely and conduct post-braze annealing to eliminate stress.
What is the best copper grade for vacuum applications?
UNS C10100 (OFHC) serves as the most suitable material for ultra-high vacuum applications because it contains the smallest amount of oxygen which leads to minimal outgassing. C10200 is acceptable for high vacuum applications where UHV pressures are not required. The two grades demonstrate superior performance to ETP copper when used in vacuum environments.
Conclusion
The performance benefits of oxygen-free copper tube become evident through its superior capabilities which standard copper materials fail to provide. The 1% conductivity improvement over ETP copper matters in precision applications. The fabrication process becomes easier because hydrogen embrittlement risk has been completely eliminated. UHV systems can reach performance levels which ETP copper cannot achieve because outgassing has been reduced.
The key decision framework requires two steps which begin with C10100 as the required material for critical electronics and UHV systems and all applications with mandatory maximum conductivity requirements. C10200 should be used for general high-performance applications which require 100% IACS conductivity but do not need more than that. ETP copper serves as the standard material for electrical and plumbing applications which prioritize cost savings instead of small improvements in conductivity.
Zhongzheng produces oxygen-free copper tube according to ASTM B68 and B75 specifications which offer C10100 and C10200 grades in both bright annealed (O60) and hard-drawn (H80) tempers. The company performs spectrography testing on every heat to achieve 99.99% pure material verification. The company provides complete MTR documentation with traceability for every order.
