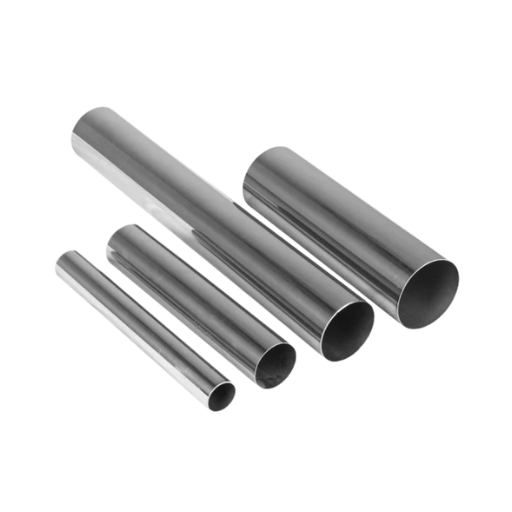

Top 316L Stainless Steel Pipe Manufacturer in China
The 316L AP Stainless Steel Pipes are used in the production of chemical processing, pharmaceuticals, and even marine industries. Because of the cleanliness required in demanding sectors, these annealed and pickled pipes provide unrivaled corrosion resistance and endurance.
General Specification Sheet for 316L Stainless Steel Pipe
The AP 316L stainless steel pipe exhibits exceptional tensile strength, highly resistant to corrosion, pitting, and shredding. Its construction is robust and annealed, as well as pickled. Specific fitted alternatives are also provided the client’s needs.
| Attribute | Details |
|---|---|
| Characteristics | Austenitic, low-carbon, non-magnetic, superior corrosion resistance, high strength, excellent toughness, hygienic properties. |
| Surface Treatment | Annealed and pickled (AP), providing a clean, smooth finish with enhanced corrosion resistance; optional bright annealing (BA) or electropolishing (EP) for specific applications. |
| Dimensions and Specifications | OD 6-630mm; Wall Thickness: 0.5-30mm; Length: Up to 30 meters (seamless or welded); Schedules: 5S, 10S, 40S, 80S. |
| Corrosion Resistance | Superior resistance to pitting, crevice corrosion, and chloride stress corrosion cracking (SCC); excellent in marine, chemical, and acidic environments; resists intergranular corrosion post-welding due to low carbon content (max 0.03%). |
| Mechanical Properties | Tensile Strength: 70,000-85,000 PSI (485-585 MPa); Yield Strength: 25,000-40,000 PSI (170-275 MPa); Hardness: 75-90 HRB; Elongation: 40-60%. |
| Processability | Excellent weldability (no post-weld annealing required due to low carbon), good machinability (use sharp tools to avoid work hardening), formable via cold working, annealing at 1900-2100¡ãF (1038-1149¡ãC) with rapid cooling for optimal corrosion resistance. |
| Applications | Chemical processing (tanks, piping), marine applications (boat fittings, pipelines), food processing (equipment, storage), pharmaceuticals (equipment, tubing), heat exchangers, wastewater treatment, architectural (coastal balustrading). |
| Standards | ASTM A312, ASTM A213, ASME SA312, EN 10216-5, NACE MR0175, ISO 3506 (for fasteners), GB, DIN. |
our latest news
Stainless steel is one of the most versatile and widely used materials across different industries, from...
Titanium steel—the perfect interplay between strength, endurance, and elegance—has found much favor across...
Almost stainless steel awaits to be manufactured into anything along the lines of endurance, anticorrosion...
Stainless steel is widely utilized across industries from food and beverages to pharmaceuticals due to...
Reliable 316L Stainless Steel Pipe for Your Needs
Ensure optimal performance and durability with our premium 316L AP Stainless Steel Pipe. Designed for corrosion resistance and reliability, it’s perfect for demanding environments. Contact us now to learn more, request a quote, or place your order. Elevate your operations with trusted solutions crafted for excellence.
