Leading Stainless Steel Float Valve Manufacturer in China

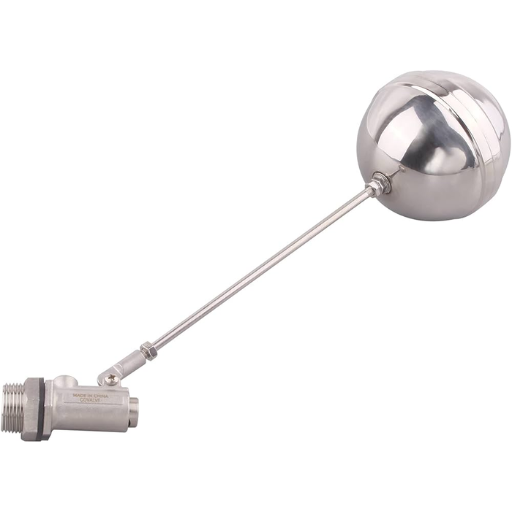

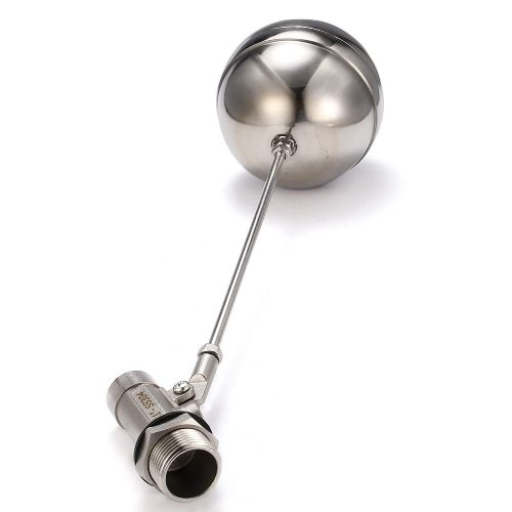

A Stainless Steel Float Valve is ideal for controlling water levels of tanks and other systems as it maintains functionality effortlessly. Constructed out of high-quality stainless steel, the valve is corrosive and highly durable making it ideal for extreme conditions. The valve works on the basis of a mechanical float which opens and closes based on the liquid level, controlling the flow. This valve is very useful in household, agricultural, and industrial purposes. Examples include water storage facilities, HVAC systems, and irrigation systems.
Stainless Steel Float Valve Technical Specifications
| Category | Details |
|---|---|
| Characteristics | Durable, reliable, and designed for precise water level control. Features a float mechanism to regulate flow automatically. Typically includes a ball or cylindrical float. |
| Surface Treatment | Polished or passivated to enhance corrosion resistance and ensure a smooth, clean finish. May include pickling to remove impurities. |
| Dimensions and Specifications | Sizes typically range from 1/2" to 4" (DN15 to DN100). Threaded (NPT/BSP) or flanged connections. Float diameter: 4" to 12" depending on valve size. Pressure rating: up to 150 PSI (10 bar). Temperature range: -20°C to 150°C (-4°F to 302°F). |
| Corrosion Resistance | Excellent resistance to rust and corrosion, especially in water, mild chemicals, and humid environments. 316 stainless steel offers superior resistance to chlorides and saline conditions compared to 304. |
| Mechanical Properties | Tensile Strength: 515-690 MPa (for 304/316 SS). Yield Strength: 205-310 MPa. Hardness: Rockwell B 70-90. High toughness and impact resistance. |
| Processability | Good machinability and weldability. Can be easily formed and fabricated. Suitable for threading, bending, and assembly in various systems. |
| Applications | Widely used in water tanks, cooling towers, irrigation systems, industrial fluid management, HVAC systems, and agricultural setups. Ideal for both indoor and outdoor installations. |
| Standards | Manufactured to ASTM A351/A351M (for castings), ASTM A276 (for bars), and ASME B16.34 standards. May comply with ISO 9001 for quality management. |
our latest news
Get Your Custom Stainless Steel Float Valve Quote Today!
Enhance your industrial processes with our premium Stainless Steel Float Valves! They are manufactured to the ASTM A312 standard, which ensures their long-lasting strength and resistance to corrosion. Reach out to us for the best options available, tailored to your water level control needs.
