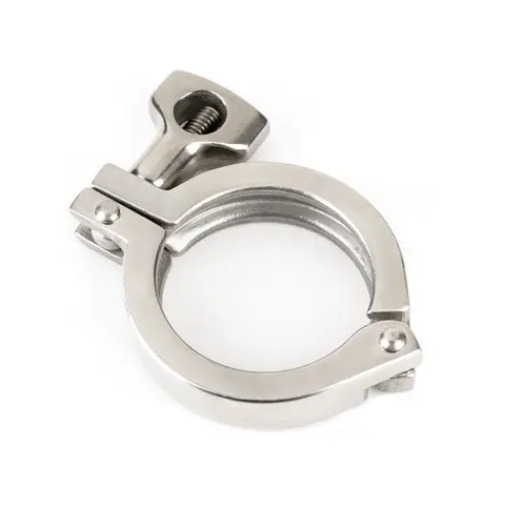

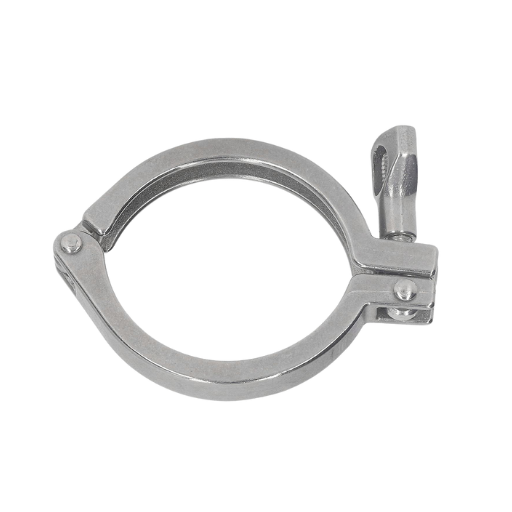

Top Sanitary Clamps Manufacturer in China
Sanitary Clamps are essential fittings designed to create secure, leak-proof connections in hygienic piping systems. Used to join tri-clamp (tri-clover) ferrules, these clamps ensure quick assembly and disassembly without tools, facilitating clean-in-place (CIP) and steam-in-place (SIP) processes. Ideal for food and beverage, pharmaceutical, and biotech industries, sanitary clamps provide reliable, contamination-free connections, complying with standards like 3-A and FDA for safe and efficient operations.
Sanitary Clamps Technical Specifications
| Category | Details |
|---|---|
| Characteristics | 316/316L stainless; crevice-free; single/double-pin or bolted; CIP/SIP compatible; quick assembly. |
| Surface Treatment | Polished (32-63 Ra); electropolished/passivated; external brushed or polished (240-400 grit). |
| Dimensions and Specs | Sizes: ½”–12”; single-pin, double-pin, high-pressure; up to 870 psig; -20°C to 200°C; gasket-dependent. |
| Corrosion Resistance | Excellent vs. chlorides, CIP agents, acids (316); 304 for milder conditions; limited in strong oxidizers. |
| Mechanical Properties | Yield: ≥205 MPa (316); Tensile: ≥515 MPa; Elongation: ≥35%; Hardness: ≤95 HRB; durable for frequent use. |
| Processability | Precision-cast/machined; tool-free assembly; easy maintenance; customizable (e.g., engraving). |
| Applications | Food & beverage, pharma, biotech, cosmetics, sanitary chemical systems. |
| Standards | ASTM A351, ASME BPE, 3-A, FDA 21 CFR 177, ISO 2852, API 598, EHEDG, ISO 9001. |
our latest news
Request Sanitary Clamps Quote
Secure your hygienic systems with Sanitary Clamps! Designed for leak-proof connections and easy maintenance, they’re perfect for food, pharmaceutical, and biotech industries. Contact us today to customize your 3-A and FDA-compliant clamps—ensure reliable, sanitary performance now!
