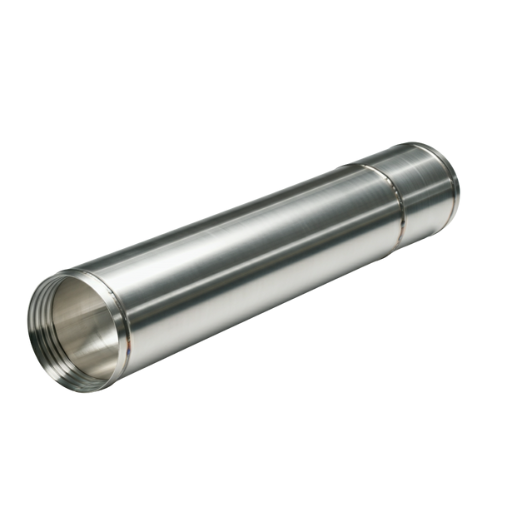

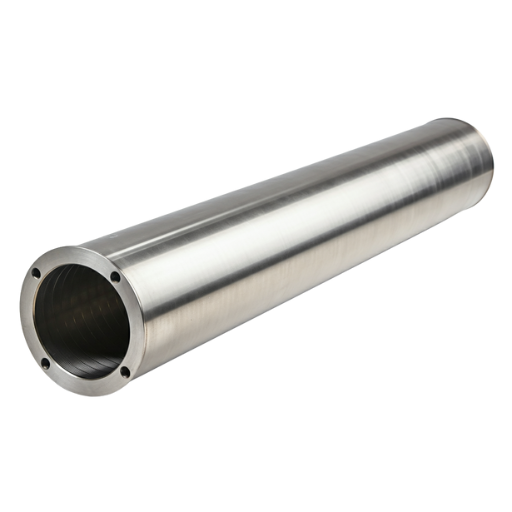

SB-536, B 536 Stainless Steel Heat Exchanger Tube Supplier in China
Engineered to meet rigorous industry standards, the SB-536 tube is suitable for high-temperature and high-pressure conditions, making it an ideal choice for heat exchangers and other critical systems. From petrochemical plants to power generation, its robust construction and superior quality deliver unmatched reliability.
SB-536, B 536 Stainless Steel Heat Exchanger Tube - Detailed Specifications
| Parameter | Specification |
|---|---|
| Material Standard | ASTM SB-536 / ASME B 536 |
| Outer Diameter Range | 12mm – 114mm |
| Wall Thickness Range | 1mm – 6mm |
| Length | Up to 12 meters |
| Surface Finish | Polished / Bright Annealed |
| Maximum Operating Temperature | 650°C |
| Maximum Pressure Resistance | Up to 10,000 psi |
| Corrosion Resistance | High (suitable for chloride-rich environments) |
| Compliance Standards | ISO 9001, ASME Section VIII |
| Application Industries | Petrochemical, Power, Marine, Pharmaceuticals, Food & Beverage, Oil & Gas |
Understanding SB-536, B 536
What It Is:
These standards are the blueprint for the raw material, defining the essential chemical and mechanical properties of the tube before use.
- ASME SB-536: The definitive specification for stainless steel tubes (e.g., 304/316L) used in heat exchangers, governing its chemical makeup, mechanical strength, and heat treatment.
- ASTM B 536: Specifically covers high-performance stainless steel tubes, guaranteeing superior performance in extreme corrosion and high-temperature environments.
- Source of Quality: Our B 536 heat exchanger tubes are exclusively manufactured from tube fully conforming to these standards, locking in quality from the very beginning.
Why It Is Your Core Focus:
Adhering to these standards is more than a rule; it’s our unwavering commitment to your project’s safety, reliability, and ultimate success.
- Safety & Reliability: Strict adherence ensures predictable performance under design pressure and temperature, mitigating risks from material defects and guaranteeing long-term operational integrity.
- Guaranteed Performance: These standards certify the material’s corrosion resistance and strength, ensuring our tubes perform consistently in demanding chemical, marine, and energy applications.
- Full Traceability & Compliance: Every tube is traceable to its certified raw material, complete with a Material Test Certificate (MTC) for seamless project audits and approvals.
SB-536, B 536 Stainless Steel Material Properties
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.030 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Silicon (Si) | ≤ 1.00 |
| Chromium (Cr) | 18.0–20.0 |
| Nickel (Ni) | 8.0–11.0 |
| Molybdenum (Mo) | 2.0–3.0 |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 485 |
| Yield Strength (0.2% offset, MPa) | ≥ 170 |
| Elongation (% in 50mm) | ≥ 35 |
| Hardness (Brinell) | ≤ 220 |
| Density (g/cm³) | 7.98 |
| Modulus of Elasticity (GPa) | 190–210 |
Versatile Applications of SB-536, B 536 Stainless Steel Heat Exchanger Tube
our latest news
Get a Quote for SB-536, B 536 Stainless Steel Heat Exchanger Tube
When durability and corrosion resistance are critical, our SB-536, B 536 stainless steel heat exchanger tube stands out. Built for harsh environments and demanding industries, it delivers unmatched reliability under extreme conditions. Contact our experts for a quote today!
