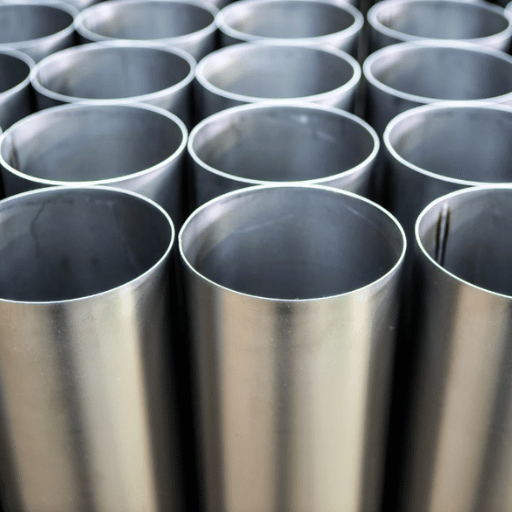

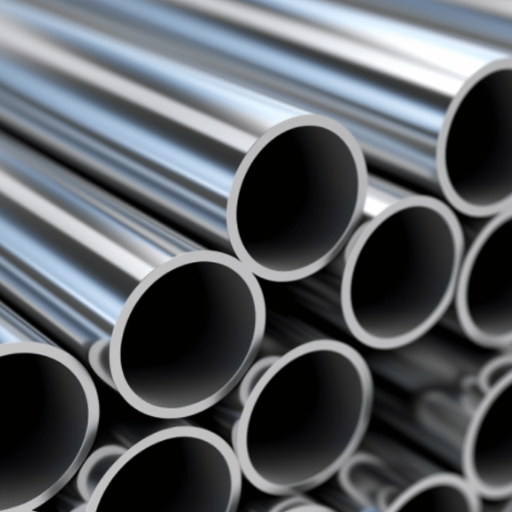

PREMIER 304 stainless steel welded pipe SUPPLIER IN CHINA
304 Stainless Steel Welded Pipe is suitable for numerous industrial applications because of its affordability and flexibility. Its fabrication utilizes 304 austenitic stainless steel containing 18% chromium and 8% nickel, which ensures exceptional durability due to its resistance to corrosion, preserving its inexhaustible qualities, as well as having a somber grey finish that is dull yet semi-smooth. This particular pipe performs best in non-aggressive conditions, thus makes it perfect for the movement of fluids and gases in food processing, chemical processing, and structural frameworks industries.
304 stainless steel welded pipe - Detailed Specifications
| Category | Details |
|---|---|
| Characteristics | Austenitic stainless steel, 18% chromium, 8% nickel, non-magnetic, high strength, cost-effective. |
| Surface Treatment | Typically pickled or annealed for a smooth, dull grey finish; can be polished for enhanced aesthetics. |
| Dimensions and Specifications | OD: 8mm–1000mm, WT: 0.3mm–30mm, Length: up to 18m; Schedules: 5S, 10S, 40S, 80S, XXS (ASTM A312). |
| Corrosion Resistance | Excellent in non-aggressive environments; resists up to 200 mg/L chlorides at 20–25°C, pitting in chlorides possible. |
| Mechanical Properties | Yield Strength: ≥205 MPa, Tensile Strength: ≥515 MPa, Elongation: ≥40%, Hardness: ≤92 HRB. |
| Processability | Excellent weldability (with/without fillers), good machinability, formable, not hardenable by heat treatment. |
| Applications | Food processing, chemical processing, structural frameworks, domestic piping, heat exchangers. |
| Standards | ASTM A312, ASME SA312, EN 1.4301, UNS S30400; may meet Pressure Equipment Directive 97/23EC. |
our latest news
Get Your 304 stainless steel welded pipe Today
Experience versatility and reliability like never before with our 304 Stainless Steel Welded Pipe. It provides excellent results in a variety of areas like food processing, chemical handling, and even in structural frameworks. Check out the different sizes and specifications our catalog offers. I’m sure you’ll find something that fits perfectly.
