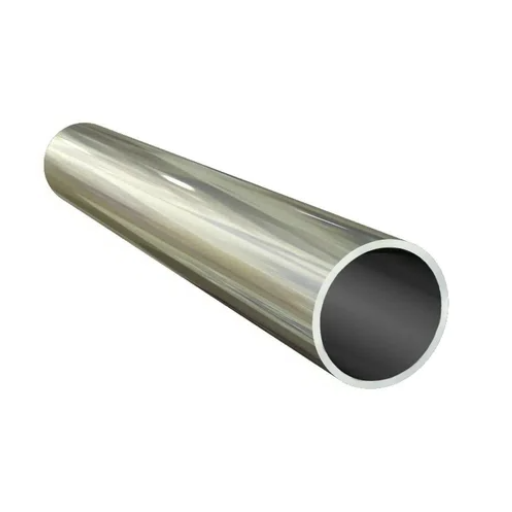

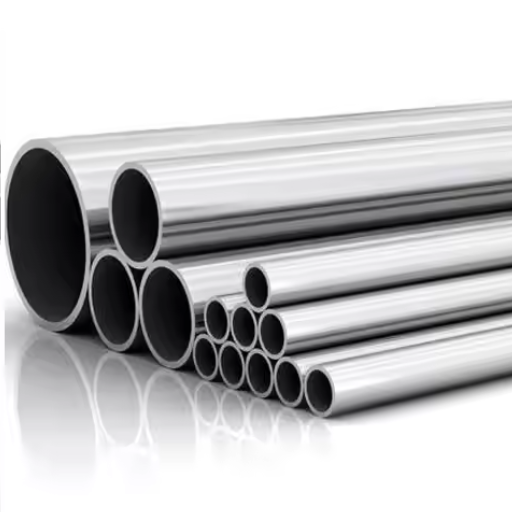

N10276 / 2.4819 Stainless Steel Sanitary Tube Supplier in China
Engineered for the most extreme hygienic environments, our N10276 / 2.4819 sanitary tubes offer virtually unparalleled resistance to a vast range of aggressive chemicals. Combining the power of Alloy C-276 with an ultra-pure sanitary finish, they provide the ultimate defense against corrosion and contamination in mission-critical pharmaceutical and specialty chemical systems.
N10276 / 2.4819 Sanitary Tube - Detailed Specifications
| Specification Parameter | Details |
|---|---|
| Product Name | N10276 / 2.4819 Stainless Steel Sanitary Tube |
| Governing Standard | ASTM A270 (Principles for Sanitary Finish), ASME BPE |
| Raw Material Standard | ASTM B575 / ASME SB-575 (for plate, sheet, and strip) |
| International Grades | UNS: N10276, EN: 2.4819, Common Name: Alloy C-276 |
| Outer Diameter (OD) | 1/2 to 4" (12.7mm to 101.6mm)" |
| Wall Thickness (WT) | 0.065" (1.65mm), 0.083" (2.11mm), etc. |
| Length | 20 ft (6.1 meters), or custom lengths |
| Surface Finish Options | SF1: Mechanically Polished ID/OD (<20 µ-in / 0.5 µm Ra ID) |
| SF4: Electropolished ID / Mechanically Polished OD (<15 µ-in / 0.38 µm Ra ID) | |
| Key Features | Virtually immune to a wide range of corrosive media, including strong oxidizing and reducing agents, wet chlorine gas, and hydrochloric/sulfuric acids. |
| Testing & Inspection | NDT (Eddy Current), Surface Roughness Test, Mechanical Tests (Flattening), PMI (100% required), Chemical Analysis |
Understanding ASTM B575 / ASME SB-575
What It Is:
This is the master specification that defines Alloy C-276, guaranteeing its legendary status as the ultimate corrosion-resistant material.
It dictates the precise balance of Nickel, Molybdenum, and Chromium, creating an alloy that uniquely withstands both oxidizing and reducing media.
This standard controls the manufacturing process to minimize impurities and prevent the formation of grain-boundary precipitates, ensuring peak performance after welding.
It serves as the definitive blueprint, ensuring the material possesses the exact microstructure required for its extraordinary versatility and reliability.
Why It Is Your Core Focus:
Our absolute commitment to B575 is our promise that your pipe is built for zero failure in the most unforgiving environments.
It’s your assurance of complete immunity to a vast spectrum of aggressive chemicals, from wet chlorine gas to hot, contaminated acids.
This standard is the basis for guaranteeing exceptional weldability and thermal stability, protecting your investment during fabrication and long-term operation.
It provides the undeniable, certified proof required for mission-critical systems where material failure is not an option, simplifying validation and ensuring total peace of mind.
N10276 / 2.4819 Stainless Steel Material Properties
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance |
| Molybdenum (Mo) | 15.0 - 17.0 |
| Chromium (Cr) | 14.5 - 16.5 |
| Iron (Fe) | 4.0 - 7.0 |
| Tungsten (W) | 3.0 - 4.5 |
| Cobalt (Co) | 2.5 |
| Carbon (C) | 0.010 |
| Manganese (Mn) | 1.0 |
| Vanadium (V) | 0.35 |
| Silicon (Si) | 0.08 |
| Property | Value (Minimum) |
|---|---|
| Tensile Strength | 100 ksi (690 MPa) |
| Yield Strength (0.2% Offset) | 41 ksi (283 MPa) |
| Elongation in 2 (50mm)" | 40% |
Versatile Applications of N10276 / 2.4819 Sanitary Tube
our latest news
Get a Quote for N10276 / C-276 Sanitary Tube
When your process demands absolute chemical immunity and product purity, our N10276 / C-276 sanitary tube is the definitive choice. Engineered for zero-failure tolerance, it protects your most valuable assets. Contact our alloy specialists for a technical consultation and quote.
