SA-240, A 240 Stainless Steel Sanitary Tube Supplier in China

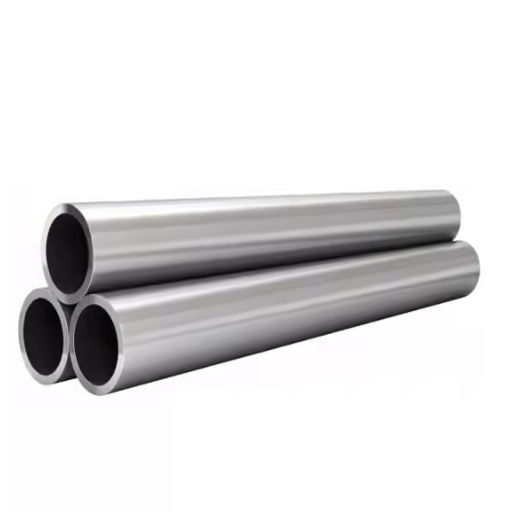

The industry standard for hygienic performance, our A 240 stainless steel sanitary tubes are fabricated from premium A 240 plate and certified to meet rigorous sanitary standards. They offer proven reliability, superior cleanability, and a high-purity internal finish, making them the trusted choice for pharmaceutical, food, and beverage applications.
SA-240, A 240 Sanitary Tube - Detailed Specifications
| Specification Parameter | Details |
|---|---|
| Product Name | A 240 Stainless Steel Sanitary Tube |
| Governing Standard | ASTM A270 (Standard Specification for Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing) |
| Raw Material Standard | ASTM A240 / ASME SA-240 |
| Common Grades | 304/304L, 316/316L |
| Outer Diameter (OD) | 1/2 to 6" (12.7mm to 152.4mm)" |
| Wall Thickness (WT) | 0.065" (1.65mm), 0.083" (2.11mm), etc. |
| Length | 20 ft (6.1 meters), or custom lengths |
| Surface Finish Options | SF1: Mechanically Polished ID/OD (<20 µ-in / 0.5 µm Ra ID) |
| SF4: Electropolished ID / Mechanically Polished OD (<15 µ-in / 0.38 µm Ra ID) | |
| Key Features | High-purity, crevice-free design. Excellent cleanability for CIP/SIP. Compliant with 3-A and ASME BPE standards. |
| Testing & Inspection | NDT (Eddy Current), Surface Roughness Test, Mechanical Tests (Flattening, Reverse Bend), PMI, Chemical Analysis |
Understanding ASTM A240 & ASTM A270
What It Is:
This product is defined by two essential standards that work together to guarantee a superior final product.
ASTM A240: This standard governs the raw material. It defines the precise chemical composition and mechanical properties of the stainless steel plate (e.g., 304L, 316L) used to form the tube.
ASTM A270: This standard governs the finished sanitary tube. It dictates the required manufacturing process, surface finish (Ra), cleanliness, and testing to ensure the product is hygienic and free of contaminants.
A Combined Quality Promise: We use fully certified A240 plate to create a sanitary tube that meets or exceeds all ASTM A270 requirements.
Why It Is Your Core Focus:
Our strict adherence to both standards is our commitment to delivering a product that is both materially sound and hygienically pure.
It guarantees the correct material chemistry for proven corrosion resistance and long-term durability in typical process environments.
It ensures an ultra-smooth internal surface that prevents microbial adhesion and allows for efficient, repeatable Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cycles.
This dual certification provides you with fully traceable MTCs, simplifying the validation and approval process for regulated industries like pharma and food.
SA-240, A 240 Stainless Steel Material Properties
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 16.0 - 20.0 |
| Nickel (Ni) | 8.0 - 14.0 |
| Molybdenum (Mo) | ≤ 3.00 (when present in 316/L) |
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 0.75 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Property | Property Value (Minimum) |
|---|---|
| Tensile Strength | 70 - 75 ksi (485 - 515 MPa) |
| Yield Strength (0.2% Offset) | 25 - 30 ksi (170 - 205 MPa) |
| Elongation in 2 (50mm)" | 35% |
| Hardness | 90 HRB (Maximum) |
Versatile Applications of SA-240, A 240 Sanitary Tube
our latest news
Get a Quote for A 240 Stainless Steel Sanitary Tube
Ensure the purity and integrity of your hygienic systems with our fully certified A 240 sanitary tube. Built to meet rigorous A270 standards, it provides proven reliability and performance for your pharmaceutical, food, or biotech applications. Contact our experts today to discuss your project and receive a competitive quote.
