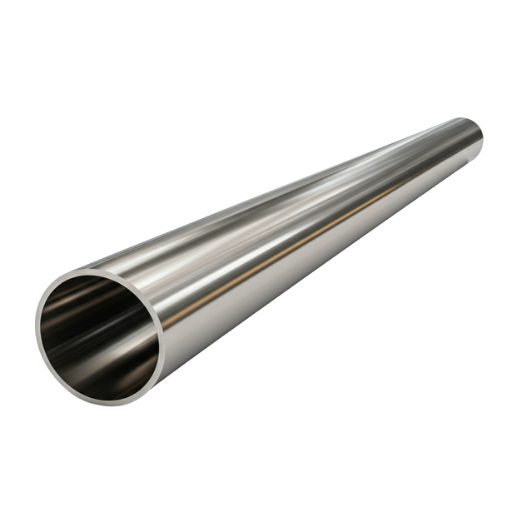

Leading N06625 Stainless Steel Seamless Tube Supplier in China
The N06625 Stainless Steel Seamless Tube combines exceptional corrosion resistance, high strength, and durability, making it perfect for aerospace, marine, and chemical industries. Its reliable performance in harsh conditions ensures long-lasting quality. Discover its versatility and strength today!
N06625 Stainless Steel Seamless Tube - Detailed Specifications
Explore the comprehensive specifications of the N06625 Stainless Steel Seamless Tube, designed for high performance, durability, and reliability in challenging aerospace, marine, and chemical industry applications.
| Parameter | Specification |
|---|---|
| Material Grade | N06625 |
| Outer Diameter (OD) | 6 mm to 914 mm |
| Wall Thickness | 0.5 mm to 50 mm |
| Manufacturing Process | Seamless |
| Corrosion Resistance | Excellent in harsh environments |
| Maximum Operating Temperature | Up to 980°C |
| Application Industries | Aerospace, Marine, Chemical |
| Surface Finish | Polished or Customized |
| Tensile Strength | ≥ 827 MPa |
| Yield Strength | ≥ 414 MPa |
| Standards Compliance | ASTM, ASME, NACE |

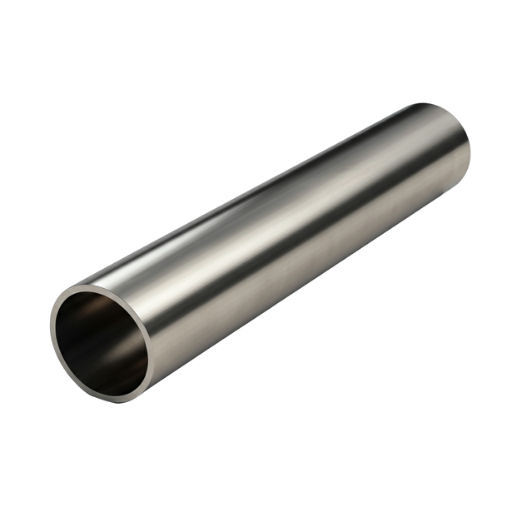

Understanding N06625
What It Is:
- Corrosion-Resistant Material: Designed to withstand exposure to harsh chemicals, seawater, and extreme temperatures, ensuring reliability in demanding conditions.
- High-Strength Seamless Design: Built without weld seams, ensuring uniformity and enhanced mechanical integrity under pressure and heavy loads.
- Industry-Standard Compliance: Manufactured to meet stringent ASTM, ASME, and NACE standards, guaranteeing consistent quality and worldwide applicability.
Why It Is Your Core Focus:
- Durable Performance: Delivers exceptional longevity and reduces maintenance in industries like aerospace, marine, and chemical processing.
- Enhanced Safety Standards: Engineered with strict adherence to specifications, ensuring dependability and reducing risks of material failure.
- Application Flexibility: Tailored for diverse uses, from heat exchangers to pressure pipelines, adapting effortlessly to complex industrial demands.
N06625 Stainless Steel Material Properties
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 58.0 min |
| Chromium (Cr) | 20.0–23.0 |
| Molybdenum (Mo) | 8.0–10.0 |
| Iron (Fe) | ≤ 5.0 |
| Niobium (Nb) + Tantalum (Ta) | 3.15–4.15 |
| Cobalt (Co) | ≤ 1.0 |
| Manganese (Mn) | ≤ 0.50 |
| Silicon (Si) | ≤ 0.50 |
| Aluminum (Al) | ≤ 0.40 |
| Titanium (Ti) | ≤ 0.40 |
| Carbon (C) | ≤ 0.10 |
| Sulfur (S) | ≤ 0.015 |
| Phosphorus (P) | ≤ 0.015 |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 827 |
| Yield Strength (MPa) | ≥ 414 |
| Elongation (%) | ≥ 30 |
| Hardness (Brinell, HBW) | ≤ 200 |
| Maximum Operating Temperature | Up to 980°C |
| Density (g/cm³) | 8.44 |
Versatile Applications of N06625 Stainless Steel Seamless Tube
