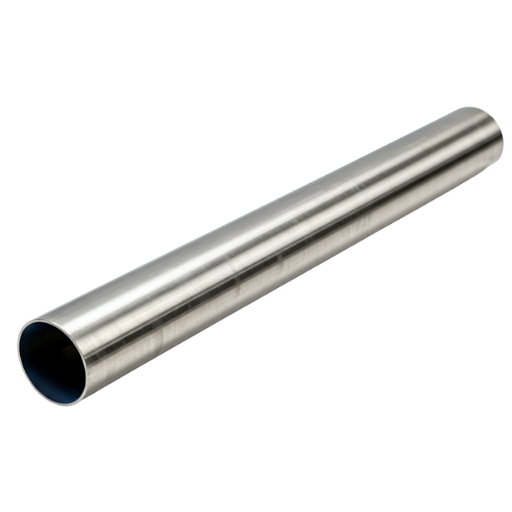

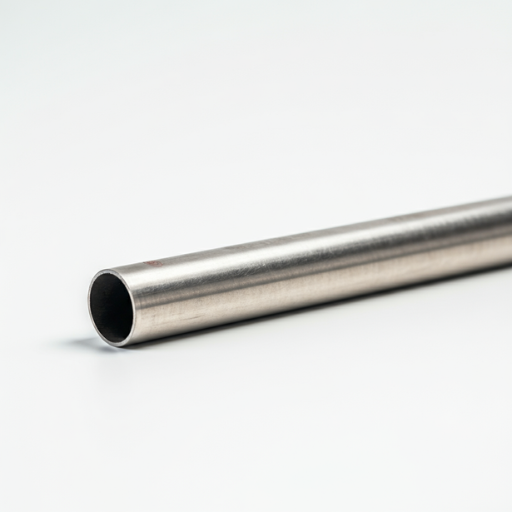

Leading China supplier of N10276 / 2.4819 Stainless Steel Seamless Tube
The N10276 / 2.4819 Stainless Steel Seamless Tube is engineered for excellence in demanding environments. Boasting exceptional corrosion resistance, this tube is ideal for handling aggressive chemicals and extreme conditions. Its seamless construction ensures superior strength, preventing leaks and promoting reliability in critical applications.
N10276 / 2.4819 Stainless Steel Seamless Tube - Detailed Specifications
| Parameter | Specification |
|---|---|
| Material Grade | N10276 / 2.4819 |
| Product Type | Seamless Tube |
| Corrosion Resistance | Excellent against oxidizing and reducing agents |
| Tensile Strength | ≥ 690 MPa |
| Yield Strength | ≥ 283 MPa |
| Elongation | ≥ 40% |
| Density | 8.89 g/cm³ |
| Operating Temperature Range | Up to 500°C |
| Applications | Chemical processing, marine, and aerospace industries |
| Standards | ASTM B622, ASTM B619, DIN 17751 |
Understanding N10276 / 2.4819
What It Is:
These standards work in tandem to guarantee a product that is both materially superior and hygienically sound.
- N10276 / 2.4819: This is the master specification for the alloy, dictating its unique chemical composition—including high levels of nickel, molybdenum, and copper.
- Seamless Tube: This is the definitive standard for sanitary tubing, governing the manufacturing process, surface finish (Ra), cleanliness, and testing required to produce a hygienic, contamination-free final product.
- A Certified Combination: We start with fully certified N10276 / 2.4819 material to create a seamless tube that meets or exceeds all relevant requirements.
Why It Is Your Core Focus:
Our strict adherence to both standards is our promise of delivering a robust, reliable, and pure solution for your critical systems.
- It guarantees superior performance against moderately to highly corrosive media where other alloys would be inadequate, especially in the presence of sulfuric acid.
- It ensures an ultra-smooth, crevice-free internal surface that minimizes bio-burden and allows for effective, repeatable Clean-in-Place (CIP) cycles.
- This dual certification simplifies your validation process with fully traceable materials and comprehensive MTCs, essential for regulated industries.
N10276 / 2.4819 Stainless Steel Material Properties
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 57.0 - 63.0 |
| Molybdenum (Mo) | 15.0 - 17.0 |
| Chromium (Cr) | 14.5 - 16.5 |
| Iron (Fe) | 4.0 - 7.0 |
| Tungsten (W) | 3.0 - 4.5 |
| Cobalt (Co) | ≤ 2.5 |
| Manganese (Mn) | ≤ 1.0 |
| Carbon (C) | ≤ 0.01 |
| Silicon (Si) | ≤ 0.08 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.01 |
| Vanadium (V) | ≤ 0.35 |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 690 |
| Yield Strength 0.2% Offset (MPa) | ≥ 275 |
| Elongation (%) | ≥ 40 |
| Hardness (Rockwell B) | ≤ 100 |
| Density | 8.69 g/cm³ |
| Melting Range | 1370°C - 1390°C |
Versatile Applications of N10276 / 2.4819 Stainless Steel Seamless Tube
our latest news
Get a Quote for N10276 / 2.4819 Stainless Steel Seamless Tube
When your operations demand exceptional reliability in extreme environments, our N10276 / 2.4819 Stainless Steel Seamless Tube delivers unmatched corrosion resistance and strength. Secure your system’s performance today–contact us for a quote!
