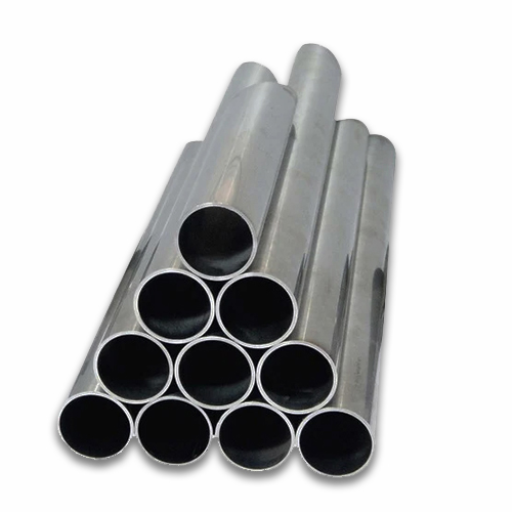

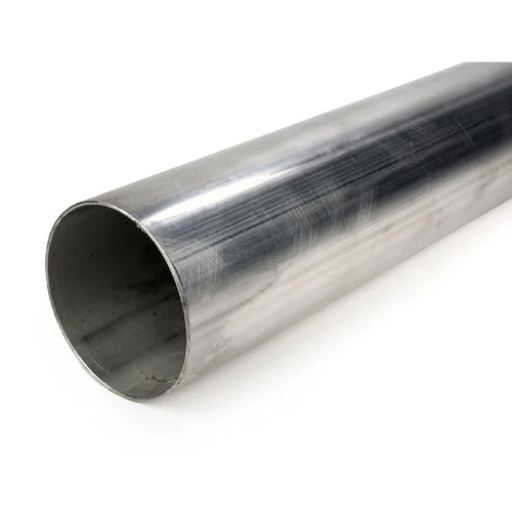

S32205 / 1.4462 Stainless Steel Welded Pipe Supplier in China
Harness the power of Duplex 2205 with our S32205 / 1.4462 welded pipes. As the industry’s most widely used duplex grade, it offers a versatile, high-strength solution for challenging environments. Count on its durability and excellent chloride resistance for oil & gas and chemical processing.
S32205 / 1.4462 Welded Pipe - Detailed Specifications
| Specification Parameter | Details |
|---|---|
| International Grades | UNS: S32205, EN: 1.4462, Common Name: Duplex 2205 |
| Pipe Manufacturing Standard | ASTM A790 (Seamless & Welded), ASTM A928 (EFW) |
| Raw Material Specification | ASTM A240 / ASME SA-240 |
| Outer Diameter (OD) | 1/2 NPS to 48" NPS (21.3mm to 1219mm)" |
| Wall Thickness (WT) | Schedule 5S, 10S, 40S, 80S, XS (1.65mm to 50mm) |
| Length | Up to 12 meters (40 ft), or custom lengths as required |
| Welding Method | EFW (Electric Fusion Welded), ERW (Electric Resistance Welded) |
| Pipe Ends | Plain End (PE), Beveled End (BE) |
| Key Features | High mechanical strength (twice that of austenitic grades), excellent resistance to stress corrosion cracking (SCC), pitting, and crevice corrosion. |
| Testing & Inspection | Hydrostatic Test, NDT (Radiography, Ultrasonic), PMI (Positive Material Identification), Chemical Analysis, Mechanical Testing (Tensile, Bend), Ferrite Content Test |
| Surface Finish | Annealed and Pickled (No. 1 Finish), Bright Annealed |
Understanding ASTM A240 / ASME SA-240
What It Is:
ASTM A240 / ASME SA-240 is the definitive standard for the duplex steel plate used to create high-integrity welded pipes.
The Material Blueprint: It governs the precise chemical balance and two-phase (austenite-ferrite) microstructure that gives Duplex 2205 its unique properties.
Mandates Mechanical Strength: The standard specifies the high tensile and yield strength requirements, a key advantage of Duplex 2205 over standard austenitic grades.
Foundation of Quality: It is the primary quality document for the raw material, ensuring that every welded pipe begins with fully certified and compliant plate.
Why It Is Your Core Focus:
Our unwavering focus on this standard is our commitment to delivering guaranteed performance, safety, and reliability in every pipe.
Guaranteed Corrosion Performance: Compliance ensures the correct microstructure for superior resistance to chloride stress corrosion cracking (SCC), pitting, and general corrosion.
High Strength for Design Efficiency: Adherence guarantees the mechanical properties that allow for lighter, thinner-walled, and more cost-effective designs in structural and process applications.
Assured Compliance & Traceability: It provides the basis for the Material Test Certificate (MTC), giving you verifiable proof that your pipes meet all project and regulatory requirements.
S32205 / 1.4462 Stainless Steel Material Properties
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.030 |
| Manganese (Mn) | 2.00 |
| Phosphorus (P) | 0.030 |
| Sulfur (S) | 0.020 |
| Silicon (Si) | 1.00 |
| Chromium (Cr) | 22.0 - 23.0 |
| Nickel (Ni) | 4.5 - 6.5 |
| Molybdenum (Mo) | 3.0 - 3.5 |
| Nitrogen (N) | 0.14 - 0.20 |
| Property | Value |
|---|---|
| Tensile Strength, min | 95 ksi (655 MPa) |
| Yield Strength (0.2% Offset), min | 65 ksi (450 MPa) |
| Elongation in 2" (50mm), min | 25% |
| Hardness, max | 293 HBW / 31 HRC |
Versatile Applications of S32205 / 1.4462 Stainless Steel Welded Pipe
our latest news
Specify High-Performance S32205 Welded Pipe for Your Project
Upgrade your system with the industry’s most versatile duplex steel. Our S32205 / 1.4462 welded pipes offer a powerful combination of high strength and excellent corrosion resistance, enabling lighter and more durable designs. Secure a reliable, cost-effective solution for your next project. Request your detailed quote today.
