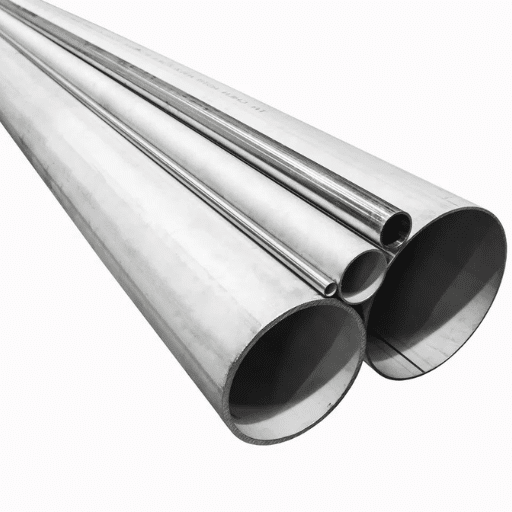

Schedule 10 316 Stainless Steel Pipe: Properties, Applications & Pricing

The Schedule 10 316 stainless steel pipe has become a standard for the industry with its ability to resist corrosion and maintain structural strength and support multiple operational applications. The material becomes the top choice in industrial settings which require demanding performance because it combines molybdenum-enhanced alloy properties and economical wall design. The guide provides a detailed analysis of specifications and main attributes and usage areas and cost factors to assist you in making knowledgeable choices.

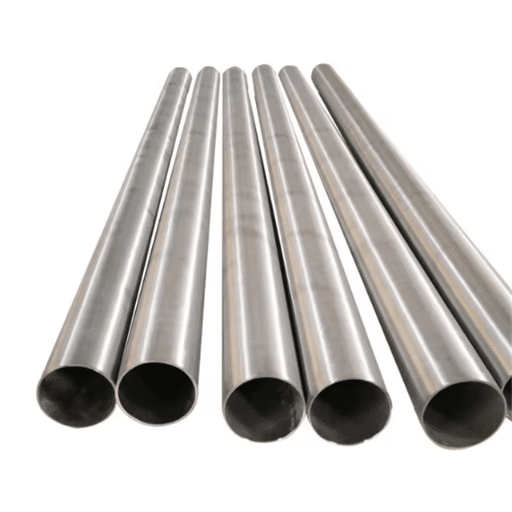

Understanding Schedule 10 Stainless Steel Pipe

What Is Schedule 10?

According to American National Standards Institute (ANSI) piping systems Schedule 10 establishes a specification for determining wall thickness. The solution creates pipes which have thinner wall measurements than both Schedule 40 and Schedule 80 pipes while maintaining base alloy strength and corrosion resistance and temperature resistance. The food processing plants and chemical facilities and water treatment systems in which 316 stainless steel Schedule 10 has become essential require both corrosion protection and hygienic compliance while needing lightweight materials for efficient installation and reduced building weight.

Specifications of Schedule 10s

Schedule 10s pipes maintain a fixed outer diameter (OD) standard yet their inner diameter (ID) changes according to different wall thicknesses. A 1-inch Schedule 10s pipe has an outer diameter of approximately 1.315 inches and an inner diameter of approximately 1.243 inches along with a wall thickness of about 0.065 inches. The company benefits from their lighter assemblies which reduce material expenses and speed up installation work especially during projects that require weight restrictions and those that need to be completed on a large scale.

Reference Dimension — 1-Inch Schedule 10s Pipe

1.315″

Outer Diameter (OD)

1.243″

Inner Diameter (ID)

0.065″

Wall Thickness

316 vs. 304 Stainless Steel: Key Differences

Both 316 and 304 are among the most widely used stainless steel grades, but their differing chemical compositions make them suited to distinct environments. Understanding the distinction is critical for selecting the right material for your application.

Property	304 Stainless Steel	316 Stainless Steel
Chromium Content	18%	16%
Nickel Content	8%	10%
Molybdenum	Not present	2–3% — key differentiator
Chloride Resistance	Moderate	Superior — pitting & crevice corrosion resistant
Ideal Environments	Food processing, household appliances, architectural	Marine, chemical, pharmaceutical, offshore
Relative Cost	Lower initial cost	Higher upfront; lower lifecycle cost in corrosive service

Material Properties of 316 Stainless Steel

Corrosion Resistance

The molybdenum content in 316 stainless steel delivers superior protection against pitting and crevice corrosion in chloride-rich environments which include saltwater and aggressive chemicals and industrial process streams. The material shows better performance than 304 stainless steel in marine and chemical processing applications because it extends operational life while cutting maintenance expenses for offshore oil and pharmaceutical production and wastewater management industries.

Strength & Durability

The Ultimate Strength of 316 stainless steel The best tensile strength and mechanical stress resistance show up in 316 stainless steel when compared to 304 stainless steel. people use molybdenum to improve material strength because it enables the metal to stay solid when facing high-pressure situations and extreme temperature changes. The material acts as the primary selection for aerospace engineering and structural marine fabrication and high-cycle industrial systems which need to function properly for extended periods.

Weldability

The welding process requires no preheating or post-weld heat treatment because 316 stainless steel works with TIG and MIG and arc welding procedures under normal conditions. The low-carbon variant 316L delivers optimal welding performance by minimizing carbide precipitation and the risk of intergranular corrosion. The use of 316L-matched filler metals creates joints which comply with food-grade and chemical processing requirements. The welding process needs proper ventilation because welding produces fumes which contain molybdenum.

Common Applications of Schedule 10 316 Stainless Steel Pipe

🏭

Industrial Processing

Chemical processing plants rely on Schedule 10 316 SS pipe to handle both extreme temperature conditions and hazardous chemical streams. The pharmaceutical sector uses it for transporting substances that require absolute hygienic integrity, while the food and beverage industry applies it for water, milk, and process fluid transport where resistance to acidic and alkaline conditions is essential.

Chemical & pharmaceutical processing lines
Food & beverage fluid transport
Water treatment infrastructure
Pulp, paper & petroleum pipelines

⚓

Marine & Offshore

Search trends confirm rapidly growing demand for corrosion-resistant materials in marine applications. The molybdenum content in 316 stainless steel provides superior protection against the pitting and crevice corrosion caused by constant saltwater exposure — making it the standard material for shipbuilding, offshore platforms, and desalination systems operating in aggressive marine environments.

Shipbuilding structural piping
Offshore oil & gas platform systems
Desalination plant pipelines
Coastal infrastructure & seawater intake

🥛

Food & Beverage Industry

The food and beverage sector operates under strict hygiene regulations that demand materials capable of withstanding both sanitizing chemicals and repeated cleaning cycles. The 316 grade’s resistance to acidic and saline conditions, combined with its smooth surface finish options, makes it a natural fit for dairy, brewing, and beverage processing systems that require both safety compliance and operational durability.

Dairy & milk processing lines
Brewing & beverage transport systems
CIP (clean-in-place) piping networks
Hygienic-grade fluid handling

💧

Water Treatment & Infrastructure

Water treatment facilities increasingly specify Schedule 10 316 SS pipe for its ability to resist the combined effects of constant water contact, chemical dosing agents, and varying pH conditions. Its compliance with potable water standards, long service life, and minimal maintenance requirements make it a practical choice for municipal and industrial water systems alike.

Municipal potable water systems
Wastewater treatment plant piping
Chemical dosing & treatment lines
Industrial cooling water circuits

Benefits of Using Schedule 10 316 Stainless Steel Pipe

Longevity & Maintenance Advantages

The Schedule 10 316 stainless steel pipe material shows exceptional strength to withstand environments that contain both water and chemical substances and experience temperature changes. The system operates with decreased downtime while requiring fewer repairs throughout its operational lifetime because of this feature which appears in industrial searches for “low-maintenance piping” and “corrosion-resistant materials for long-term use.” Its extended operational life shows that it can continue to support sustainability goals while maintaining business operations.

Cost-Effectiveness & Pricing Factors to Consider

✓
Higher upfront cost, lower total lifecycle cost
While Schedule 10 316 SS carries a higher initial price than alternatives, its exceptional corrosion resistance significantly reduces maintenance, repair, and replacement expenses over time — improving total cost of ownership.
✓
Bulk order pricing available
Most manufacturers and distributors offer preferential pricing for bulk purchases, making large-scale industrial projects significantly more economical when procured through consolidated orders.
✓
Dimensions, supplier, and market demand affect price
Pipe pricing varies based on diameter, wall schedule, finish specification, and current market demand for raw nickel, chromium, and molybdenum. Monitoring commodity prices can improve procurement timing.
✓
Sustainability benefits support long-term value
The extended product life of 316 SS pipe reduces replacement frequency and material waste — aligning operational efficiency with environmental sustainability goals and supporting compliance with responsible sourcing policies.

Design & Usage Versatility

Schedule 10 316 stainless steel pipe maintains its protective performance across both chemical processing environments and maritime installations. Its lightweight construction enables straightforward installation and flexible deployment in structural components and fluid transportation systems alike. Engineers and procurement specialists consistently search for this pipe when evaluating high-temperature performance, material compatibility, and long-term wear resistance — confirming its role as a fundamental material for contemporary engineering challenges.

Technical Specifications

Dimensions & Wall Thickness

The ASTM and ASME standards establish basic rules which ensure Schedule 10 316 stainless steel pipes achieve their required quality, safety, and reliability standards. The material requirements for seamless and welded austenitic stainless steel pipes are described through ASTM A312 which specifies their chemical composition, mechanical properties, and testing methods needed for chemical processing and power generation purposes. The ASME B31.3 standard controls all aspects of process piping design and pressure vessel regulations which ensure that pipe systems maintain safety and design requirements during different pressure and temperature conditions. The standards provide organizations with a framework to build piping systems that meet international compliance standards.

Nominal Size	Outer Diameter (OD)	Wall Thickness (Sch 10)	Inner Diameter (ID)
½ inch	0.840″	0.083″	0.674″
¾ inch	1.050″	0.083″	0.884″
1 inch	1.315″	0.065″	1.185″
2 inch	2.375″	0.065″	2.245″
4 inch	4.500″	0.083″	4.334″
6 inch	6.625″	0.109″	6.407″

ASTM & ASME Standards

The ASTM and ASME standards establish basic criteria which ensure that Schedule 10 316 stainless steel pipes meet all requirements for quality, safety, and reliability. The material specifications of ASTM A312 establish the requirements for seamless and welded austenitic stainless steel pipes which include details about chemical composition and mechanical properties and testing methods used in chemical processing and power generation applications. The ASME B31.3 standard establishes design regulations for process piping systems and pressure vessel systems which ensure that piping systems maintain safety and design standards under different temperature and pressure conditions. The piping systems created through these standards achieve international compliance with all required standards.

Available Finish Options

Polished Finish

Smooth internal surface that reduces contamination risk and improves cleaning efficiency. Standard for pharmaceutical and food-grade applications.

Coated Finish

Epoxy or zinc protective coatings applied to extend system durability in extreme service conditions and when handling highly corrosive materials.

Heat-Treated Finish

Annealing alters mechanical properties to enhance temperature tolerance while preserving overall strength — suited for high-cycle thermal service.

Passivated Finish

Chemical passivation creates a dense oxide layer that improves resistance to both oxidation and general corrosion — a baseline requirement for many sanitary specifications.

Galvanized Finish

Because of the effective zinc coating, preventing the formation of rust in open-air or high-moisture applications where greater weathering resistance is sought after.

Frequently Asked Questions

What should I know about Schedule 10 316 stainless steel pipe product specifications?

The low-weight Schedule 10 316 SS pipe uses 316 alloy material which provides corrosion protection through its design. The standard documentation contains the schedule number which includes both sch 10 and sch 10s to show the pipe’s wall thickness and its maximum pressure capacity. Pipes are available for purchase either by the foot or through standard stock lengths which depend on the shipping rules of each supplier. The material data sheets will provide information about alloy composition and dimensional tolerances and recommended usage for pulp and paper and petroleum industries. The business requires you to verify both stock availability and lead times before you complete your order.

What distinguishes welded from seamless Schedule 10 316 stainless steel pipe?

Welded pipe is produced through the process of transforming base material into a tubular form which receives a continuous weld along its length. Welded Schedule 10s pipe typically delivers satisfactory performance at a reasonable cost for use in non-essential petroleum operations and pulp and paper applications. Engineers must confirm that the weld satisfies all performance standards while the filler materials need to meet 316 alloy requirements to stop galvanic corrosion. The majority of suppliers calculate welded pipe costs by foot while they offer pressure rating tables that use sch 10s dimensions as their basis.

What are common weld quality concerns for Schedule 10 316 SS pipe?

The stainless steel Schedule 10 316 SS components experience both corrosion resistance and mechanical strength changes because their weld quality determines their entire performance. Testing requirements typically include radiographic or dye-penetrant inspection to verify reliability in petroleum and industrial service. The thinner Schedule 10 wall requires experienced welding procedures because it affects both heat input and distortion behavior. Mill test reports and welding process control documentation should be reviewed before specifying material for critical applications. Shipping and handling procedures must also maintain weld integrity to prevent contamination that could compromise the 316 alloy’s protective properties.

How does pipe schedule affect the selection of 316 stainless steel pipe?

The pipe schedule establishes wall thickness specifications which subsequently determine both pressure capacity and pipe weight. The Sch 10 and sch 10s options provide lightweight solutions that work effectively in low-pressure system applications. The pipe schedule should be matched to operating conditions and required safety margins by using published dimension charts and 316 schedule pressure tables as reference material. The selected schedule determines which stock lengths are available and whether the project will use welded or seamless construction methods. Schedule selection requires confirmation of service requirements which include expected pressure and temperature range and corrosion exposure information.

Why is SS 316 Schedule 10 chosen for specific industrial applications?

SS 316 Schedule 10 is selected because its corrosion resistance exceeds most alternative materials while its weight and cost remain lower than higher-schedule pipe. The system works best at middle pressure settings because it can maintain performance when exposed to dangerous materials, which makes it suitable for both pulp and paper operations and non-essential petroleum pipeline work. The sch 10s wall thickness provides adequate strength for many service conditions while reducing both material cost and shipping weight per foot. The grade specification should always be evaluated against service requirements, and stock availability confirmed with suppliers to avoid project delays.

How do I verify specifications and inventory for Schedule 10 316 SS pipe?

Request mill test reports and dimension tables which show both sch 10 and sch 10s tolerances and 316 schedule dimensions for use as design and procurement reference materials. Suppliers need to verify whether they sell pipe in standard stock lengths or per foot with cut-to-length options while they must explain shipping conditions before any purchase. The identification process for 316 alloy requires verification of alloy composition with the confirmation of available welded and seamless options based on your project requirements. The standard procedure for bulk purchases requires customers to request inspection photos of welded seams and surface finish before they make their final order commitment. The complete records of product information which include length and certifications and shipping details assist in both installation and subsequent maintenance activities.
