Key Takeaway: Seamless stainless steel tubes are manufactured without welded seams, making them uniformly strong and durable. They offer superior performance in high-pressure, high-temperature, and corrosive environments across aerospace, automotive, healthcare, and energy industries.
Introduction to Seamless Stainless Steel Tubing
Stainless steel has been recognized for decades for its durability, strength, and versatility. Among the various forms of stainless steel products, seamless stainless steel tubes stand out as components that engineers seeking precision cannot overlook. These tubes are manufactured without welds, eliminating potential points of vulnerability, which explains their popularity across multiple industries including aerospace, automotive, healthcare, and energy sectors.
Seamless stainless steel tubes are produced through extrusion processes that provide a smooth exterior with maximum structural integrity. Their ability to withstand high pressures, resist corrosion, and maintain performance in extreme environments makes them essential for demanding applications.

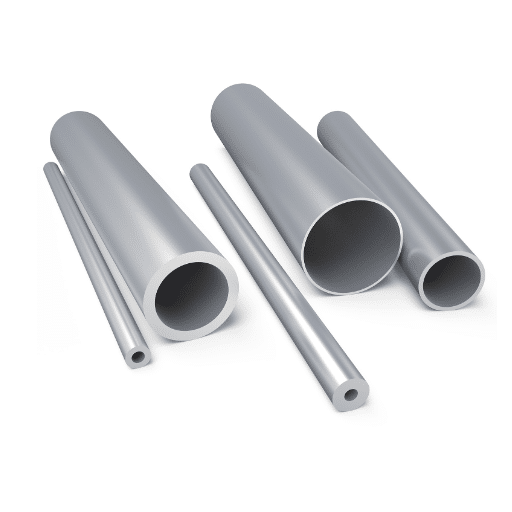

What is a Seamless Stainless Steel Tube?
A seamless stainless steel tube is a hollow cylindrical object manufactured without any welded components or joints. The manufacturing process involves:
- Starting Material: A solid steel billet is heated to high temperatures
- Piercing: The heated billet is pierced to form a hollow shell
- Shaping: The shell is stretched or squeezed using specialized dies to achieve desired dimensions
- Finishing: Final processing to meet precise specifications
The absence of seams eliminates weak points and ensures uniform strength throughout the tube, making them reliable even under harsh conditions.
Key Characteristics of Seamless Tubing
Seamless tubing offers several critical advantages due to its construction and materials:
- Uniform Strength: No welded joints mean consistent strength throughout
- High-Pressure Resistance: Can withstand extreme pressures without failure
- Corrosion Resistance: Excellent resistance to chemical and environmental corrosion
- Precision Tolerances: Manufactured to tight dimensional specifications
- Smooth Surface Finish: Internal smoothness reduces friction and contamination
- Temperature Stability: Maintains properties across wide temperature ranges
Comparison: Seamless vs. Welded Stainless Steel Tubes
| Feature | Seamless Tubes | Welded Tubes |
|---|---|---|
| Structural Integrity | Uniform strength throughout | Potential weak points at welds |
| Pressure Resistance | Excellent high-pressure capability | Limited by weld strength |
| Manufacturing Cost | Higher initial cost | More economical to produce |
| Corrosion Resistance | Superior resistance | Vulnerable at weld joints |
| Application Suitability | Critical/demanding applications | General purpose applications |
| Long-term Reliability | Excellent durability | Good for standard conditions |
Types and Grades of Stainless Steel Tubes
Stainless steel tubes are available in various grades, each designed for specific applications and performance requirements. The choice of grade depends on factors such as chemical composition, mechanical properties, and corrosion resistance needs.
Common Grades of Seamless Stainless Steel
| Grade | Composition Highlights | Key Properties | Typical Applications |
|---|---|---|---|
| 304/304L | 18% Chromium, 8% Nickel | Excellent corrosion resistance, formable, weldable | Food processing, architectural, general industrial |
| 316/316L | 18% Chromium, 10% Nickel, 2% Molybdenum | Superior chloride resistance | Marine environments, chemical processing |
| 321 | Titanium stabilized | High-temperature strength, oxidation resistance | High-temperature applications |
| 410 | Martensitic structure | High wear resistance, moderate corrosion resistance | Wear-resistant applications |
| 430 | Ferritic structure | Good corrosion resistance, magnetic | Automotive, appliances |
| Duplex 2205 | 22% Chromium, 5% Nickel, 3% Molybdenum | High strength, excellent pitting resistance | Oil & gas, chemical plants, desalination |
Duplex vs. Austenitic Stainless Steel Tubing
Market Trend: Recent data shows increasing preference for Duplex grades due to their superior strength-to-weight ratio and enhanced corrosion resistance in chloride environments.
Advantages of Duplex Grades:
- Nearly double the strength of standard austenitic grades
- Superior resistance to pitting and crevice corrosion
- Cost-effective due to reduced wall thickness requirements
- Extended service life reduces maintenance costs
- Better performance in marine and chemical environments
Understanding the 304 Grade for Seamless Tubes
Grade 304 stainless steel remains the most popular choice for seamless tubes due to its:
- Versatility: Suitable for a wide range of applications
- Cost-effectiveness: Good balance of performance and price
- Temperature Range: Performs well from cryogenic to elevated temperatures
- Recyclability: Environmentally friendly and sustainable
- Availability: Readily available in various sizes and specifications
Manufacturing Processes for Seamless Stainless Tubing
The production of seamless stainless steel tubes involves sophisticated manufacturing processes that ensure quality and precision:
How Seamless Tubes are Fabricated
- Billet Preparation: Solid stainless steel billets are heated to forging temperature
- Rotary Piercing: The heated billet is pierced using a rotary pierce mill
- Elongation: The hollow shell is elongated over a mandrel
- Sizing: Stretch reducing mills achieve final dimensions
- Heat Treatment: Annealing improves ductility and relieves stress
- Quality Testing: Non-destructive testing ensures compliance
Quality Control in Seamless Stainless Steel Production
Modern quality control involves multiple testing methods:
| Testing Method | Purpose | Technology Used |
|---|---|---|
| Ultrasonic Testing | Detect internal flaws | Sound wave technology |
| Eddy Current Testing | Surface and near-surface defects | Electromagnetic induction |
| Dimensional Inspection | Verify size and tolerances | Laser metrology systems |
| Chemical Analysis | Confirm alloy composition | Spectrometric analysis |
| Mechanical Testing | Verify strength properties | Tensile and hardness testing |
Innovations in Seamless Tube Manufacturing
Recent technological advances include:
- Automation and AI: Real-time process control and quality monitoring
- 3D Printing: Rapid prototyping of specialized designs
- Energy Efficiency: Induction heating systems and renewable energy integration
- Advanced Robotics: Improved precision and consistency
- Data Analytics: Predictive maintenance and process optimization
Applications of Seamless Stainless Steel Tubes
Oil and Gas Industry
Seamless stainless steel tubes are extensively used in:
- Offshore drilling platforms
- Pipeline systems
- Heat transfer equipment
- Downhole completion tools
- Refinery processing equipment
Chemical and Petrochemical Industry
Critical applications include:
- Reactor vessels and heat exchangers
- Chemical transportation systems
- Process instrumentation
- Catalyst delivery systems
- Corrosive fluid handling
Energy Production
Power generation applications:
- Nuclear reactor components
- Steam generator tubing
- Boiler and superheater tubes
- Thermal power plant systems
- Renewable energy infrastructure
Automotive Industry
Automotive uses include:
- Fuel injection systems
- Exhaust system components
- Brake lines
- Air conditioning systems
- Engine cooling systems
Medical and Pharmaceutical Applications
Healthcare sector applications:
- Surgical instruments
- Medical device components
- Pharmaceutical processing equipment
- Catheter and needle manufacturing
- Sterilization equipment
Aerospace and Aviation
Aerospace applications require the highest standards:
- Hydraulic system tubing
- Fuel delivery systems
- Environmental control systems
- Landing gear components
- Engine components
Food and Beverage Industry
Sanitary applications include:
- Beverage processing lines
- Dairy processing equipment
- Food packaging systems
- Steam distribution networks
- Brewing and distillation systems
Structural and Instrumentation Applications
Engineering applications:
- Precision instrumentation
- Control system tubing
- Structural framework components
- Architectural elements
- Marine construction
Benefits of Seamless Stainless Steel Tubing
Superior Mechanical Properties
| Property | Benefit | Application Advantage |
|---|---|---|
| Uniform Strength | No weak points | Reliable high-pressure performance |
| Corrosion Resistance | Long service life | Reduced maintenance costs |
| Temperature Stability | Wide operating range | Versatile application potential |
| Dimensional Accuracy | Precise fit and function | Improved system efficiency |
| Surface Smoothness | Reduced friction and contamination | Better fluid flow characteristics |
Corrosion Resistance and Durability
The exceptional corrosion resistance of seamless stainless steel tubes stems from:
- Chromium Content: Forms protective oxide layer
- Uniform Composition: Consistent protection throughout
- No Weld Contamination: Eliminates vulnerable areas
- Alloy Optimization: Specialized grades for specific environments
High-Quality Performance in Various Environments
Performance Advantage: Seamless tubes maintain structural integrity across temperature ranges from cryogenic applications (-196°C) to high-temperature service (up to 1000°C), depending on grade selection.
Cost-Effectiveness in Long-Term Use
Long-term economic benefits include:
- Extended Service Life: 25-30 years typical lifespan
- Reduced Maintenance: Minimal repair requirements
- Lower Downtime: Reliable operation reduces interruptions
- Energy Efficiency: Smooth internal surfaces reduce pumping costs
- Recyclability: 100% recyclable at end of life
Industry Standards and Specifications
Seamless stainless steel tubes are manufactured to various international standards:
| Standard | Region | Application Focus |
|---|---|---|
| ASTM A213 | USA | Seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes |
| ASTM A269 | USA | Seamless and welded austenitic stainless steel tubing for general service |
| EN 10216-5 | Europe | Seamless steel tubes for pressure purposes |
| JIS G3463 | Japan | Stainless steel boiler and heat exchanger tubes |
References
-
Missouri University of Science and Technology – Stainless Steel Tubular Beams
A research paper presenting tests on square and circular stainless steel tubular beams, focusing on their design and performance.
Link to source -
Oklahoma State University Extension – Sanitary Fittings and Tubing for Food Processors
Discusses the use of seamless stainless steel tubing in the food processing industry, emphasizing its standardization and hygienic properties.
Link to source
Frequently Asked Questions (FAQ)
What is meant by a seamless stainless steel tube?
We can understand a seamless stainless steel tube as the kind of tubing that is produced with no existence of welds or other forms of joints. The advantage that it offers is its rigid structure thereby bearing great loads as well as pressure enhancements among other uses. It is well appreciated in many of the sectors, namely: aircrafts, food, drink manufacture, as well as high end industrial designs.
How are seamless stainless steel tubes made?
During the process of making seamless stainless steel tubing, extrusion or rotary piercing are usually used. This techniques make it possible for stainless steel alloy to easily be channeled into tubes without needing to weld anything – hence a hardier and better off material comes out.
What are the specifications for a stainless-steel seamless tube?
Stainless seamless steel tubes are generally manufactured, as per established standards such as ASTM-Boiler Steel Tubes-A213, A269. These standards astm a269-10 w outlined outline certain prerequisites such as chemical compositions, mechanical parameters, and geometrical dimensions regarding the tubing as well as outer and inner diameters. These are absolutely critical in tubo meeting the high quality demands for a wide range of applications.
Which one is preferable; Seamless or Mirrored Piping?
Smoof tainless tubing has many benefits compared to its welded counterpart. These include superior resistance to corrosion, better strength, and no weld minerals that may cause failures. This is because seamless tubing is found to be efficient in cases where higher pressure levels or extreme environmental conditions are encountered.
What about seamless stainless steel tube – where can they be found/applicable?
Stainless steel seamless tubes are widely used, among other things, in the construction, oil and gas, and food and beverage processing industries. Their persistence, and immunity to rust in water, make them suitable for harsher climates and specific applications where reliability is a concern.
What is the importance of the outer and inner diameter of a tube?
There is importance in knowing and considering the outside diameter (OD) and the inside diameter (ID) of seamless stainless steel tubes because these dimensions are what aide or retard mating components and fittings. When designing the products, it is important to include the proper size for valves and instrumentation in order to maintain adequate flow and strength.
Is it possible to make seamless stainless steel tube with smaller diameters?
Indeed, it is possible to manufacture smaller diameter seamless stainless steel tubes, which are necessary for precision applications. Typically, these relatively small diameter tubes are used in industries such as aerospace or instrumentation, where performance and excellence are imperative.
What role does the temper of stainless steel play in influencing its characteristics?
This addresses the tempering of stainless steel in relation to heat treatment and alteration of its properties such as strength, flexibility and corrosion resistance. The different tempers that are incorporated are also very handy for the different applications and levels of perfection required of the seamless stainless steel tubing.
How does one contrast the seamless tubes with the welded stainless steel varieties?
Welded and seamless stainless steel tubes are different in the method of their production. A seamless steel tube is produced by treating a rectangular piece of raw material, round in nature, with heat and forging it into a rectangle. On the other hand, a strip of steel can be bent and rolled into a tube, leaving a gap in the longitudinal direction, and then the seam is welded together by utilizing a welding machine. A welded steel pipe is bound to be limited in strength as well as rusting ability in comparison to a seamless steel pipe making the difference and hence, making it more suitable for high standard uses.
