Stainless steel is widely utilized across industries from food and beverages to pharmaceuticals due to its robustness and corrosion resistance. When selecting materials for food-grade equipment, the choice typically comes down to two primary options: 304 and 316 stainless steel grades.
This comprehensive guide examines the fundamental differences between these grades, their properties, applications, and helps you make informed decisions for your specific needs.
Introduction to Stainless Steel
Stainless steel is an iron-based alloy containing chromium, nickel, and other elements that provide exceptional corrosion resistance. The chromium content (minimum 10.5%) forms a thin passive oxide film on the surface, protecting against rust, moisture, and chemical exposure.
Key Benefits of Stainless Steel
- Corrosion resistance – Essential for wet and heated conditions
- Hygienic properties – Easy to clean and maintain
- Durability – Long-lasting performance
- Heat tolerance – Suitable for high-temperature applications
- Aesthetic appeal – Polished, professional appearance
Types of Stainless Steel
Stainless steel comes in several varieties based on crystal structure:
- Austenitic (304, 316) – Most common, excellent corrosion resistance
- Ferritic – Magnetic, good corrosion resistance
- Martensitic – High strength, moderate corrosion resistance
- Duplex – Combines austenitic and ferritic properties
- Precipitation-hardening – High strength applications
304 Stainless Steel: The Industry Standard
Composition of 304 Stainless Steel
| Element | Percentage |
|---|---|
| Chromium | 18-20% |
| Nickel | 8-10.5% |
| Iron | Balance |
| Carbon | ≤0.08% |
Properties of 304 Stainless Steel
- Excellent corrosion resistance in standard environments
- High formability and weldability for easy fabrication
- Non-magnetic in annealed condition
- Temperature resistance – maintains strength at various temperatures
- Non-porous surface – resists bacteria and odor absorption
- Smooth, polished finish – aesthetically appealing
Applications of 304 in the Food Industry
Mixing tanks, conveyor systems, industrial blenders

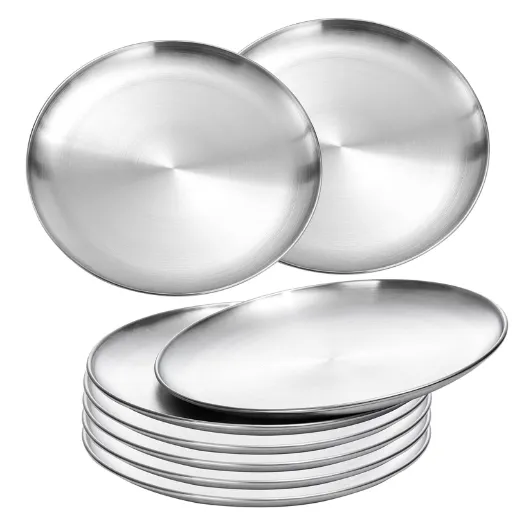

Pots, pans, cutlery, countertops
Tanks for milk, water, juices
Fermentation tanks, distillation columns
Cutting, slicing, processing equipment
316 Stainless Steel: Superior Corrosion Resistance
Composition of 316 Stainless Steel
| Element | Percentage |
|---|---|
| Chromium | 16-18% |
| Nickel | 10-14% |
| Molybdenum | 2-3% |
| Iron | Balance |
| Carbon | ≤0.08% |
Properties of 316 Stainless Steel
- Superior corrosion resistance – especially against chlorides
- Enhanced pitting resistance – ideal for harsh chemicals
- High strength retention at elevated temperatures
- Non-magnetic properties with excellent weldability
- Marine environment suitability – resists saltwater corrosion
- Chemical processing compatibility – withstands aggressive chemicals
Applications of 316 in Food Processing
Contamination-resistant storage for beverages and dairy
Resistant to harsh cleaning chemicals
Industrial kettles and cooking vessels
Mixers, blenders, grinders with non-reactive surfaces
Safe transport of liquids without taste contamination

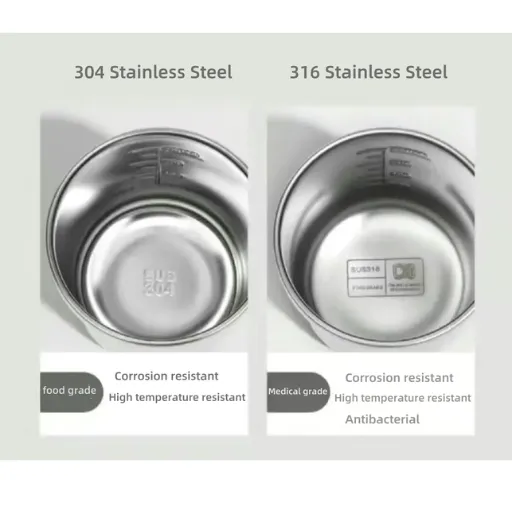

Comprehensive Comparison: 304 vs 316
| Feature | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Good in standard environments | Excellent in harsh/marine environments |
| Chloride Resistance | Moderate | Superior due to molybdenum |
| Cost | Lower cost | 20-30% higher cost |
| Temperature Performance | Good heat resistance | Superior at high temperatures (up to 1598°F) |
| Typical Applications | Kitchen equipment, brewing tanks | Marine, chemical processing, medical |
| Maintenance Requirements | Standard maintenance | Lower long-term maintenance |
| Tensile Strength | ~70,000 psi | ~75,000 psi |
Cost Analysis
Initial Investment: 316 stainless steel typically costs 20-30% more than 304 due to the molybdenum content and enhanced properties.
Long-term Value: In demanding environments, 316’s reduced maintenance and longer service life often justify the higher initial cost through lower total cost of ownership.
Selection Factors for Food-Grade Applications
Environmental Conditions
- Coastal/Marine Environments: Choose 316 for salt-air exposure
- Indoor Applications: 304 typically sufficient for standard conditions
- Chemical Exposure: 316 recommended for harsh cleaning agents
- Temperature Extremes: 316 performs better at sustained high temperatures
Type of Food Processed
Acidic Foods (316 Recommended)
- Tomato sauces
- Citrus juices
- Vinegar-based products
- Fermented foods
Low-Acid Foods (304 Suitable)
- Grains and cereals
- Bakery products
- Dry goods
- Neutral pH beverages
Compliance with Food Safety Standards
Regulatory Compliance: Both 304 and 316 meet FDA and NSF standards for food contact. The choice depends on specific application requirements and environmental factors.
- FDA approval for direct food contact
- NSF certification for commercial food service
- Easy sanitization and cleaning protocols
- Non-reactive surface properties
Decision Framework
Choose 304 when:
- Budget is a primary concern
- Standard indoor food processing environment
- Processing low-acid foods
- Minimal exposure to harsh chemicals
Choose 316 when:
- Processing acidic or corrosive foods
- Marine or coastal facility locations
- Exposure to strong cleaning chemicals
- Long-term durability is critical
- High-temperature processing requirements
References
-
Steel Tanks for Storing and Transporting Pesticides and Fertilizers – Purdue University – Discusses the use of 316 stainless steel for storing acidic liquids, highlighting its superior corrosion resistance.
-
Stainless Steel Grade Chart – Stanford University – Provides a detailed comparison of stainless steel grades, including corrosion resistance and applications.
-
Stainless Steel Technical Bulletin – National Institutes of Health (NIH) – Explains the differences between 304 and 316 stainless steel, focusing on their composition and resistance to environmental factors.
Frequently Asked Questions (FAQ)
What are the key differences between 304 and 316 stainless steel?
There are a very few key differences between 304 and 316 stainless steel that lie in corrosion resistance and composition. 304 stainless steel contains 18% chromium and 8% nickel while 316 stainless steel, with an extra molybdenum of about 2% added thereto, gains resistance to chlorides and such corrosive environment, thereby making it apt for food handling and food processing applications.
Is 316 stainless steel more expensive than 304?
Yes, the 316 stainless steel is more expensive than 304 because of higher corrosion resistance and the presence of molybdenum. This also provides 316 with a suitable environment for demanding durability in food production facilities where aggressive cleaning agents are employed.
Which type of stainless steel is best for food processing?
Typically for food processing, the best food grade stainless steel is 316 stainless steel owing to its high-grade corrosion resistance and the ability to withstand harsh environments. However, 304 stainless steel is also being used widely and is inexpensive, so it’s a more preferred option for general food handing applications.
Can 304 ss be used in food production?
Yes, 304 ss is used widely in the food industry for food production. On account of its resistance to corrosion and easy cleaning properties, it is considered safe for food contact and application to equipment, surfaces, and containers in food production.
What properties of stainless steel make it suitable for food grade applications?
The stainless steel properties that make this material suitable for food applications are a non-reactive surface, corrosion resistant, durable, and easy to clean. It also does not allow hibernation for bacterial growth, making it viable for food handling and processing.
What are the applications of 304 and 316 stainless steel in the food industry?
In food processing, 304 is the most popular type of stainless steel, used for food storage containers, kitchen equipment, and manual processing machinery. 316 is used in marine environments to manufacture equipment with enhanced corrosion resistance like those used in food processing plants exposed to saltwater or harsh cleaning chemicals.
What are the differences between the compositions of 304 and 316 stainless steel?
The compositions of 304 and 316 stainless steel differ in alloying elements. 304 stainless steel has 18% chromium and 8% nickel, whereas 316 stainless steel has 16% chromium, 10% nickel, and 2% molybdenum. Having further molybdenum in 316 helps it to resist pitting and crevice corrosion.
What should food makers consider when choosing between 304 and 316 stainless steel?
Food manufacturers should take the specific application into consideration, the environment in which the stainless steel will be used, and the cost involved. Depending on the scenario, 316 stainless steel would be better where high resistance to corrosion is needed, especially in salt or acidic environments, although it is costlier. For general food handling, 304 stainless steel will be fine in most cases.
