Top Inline Strainer Manufacturer in China

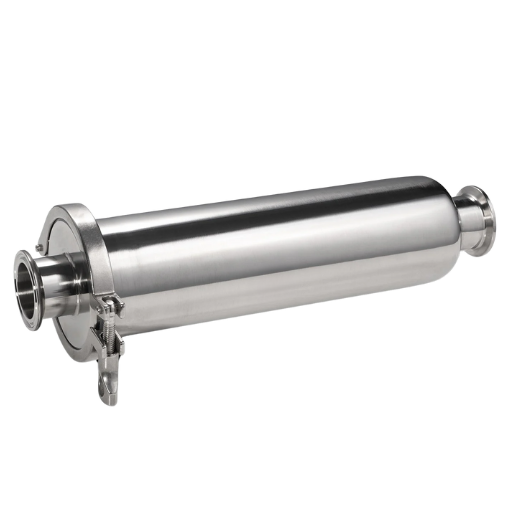

An Inline Strainer is a sanitary filtration device designed to remove particles and debris from liquid flows, protecting equipment like nozzles and pumps in food, beverage, and pharmaceutical processes. Its streamlined design ensures high flow rates and easy in-line cleaning, ideal for hygienic applications.
Inline Strainer Technical Specifications
Comprehensive specifications of our Sanitary Inline Strainers, manufactured to meet FDA and EHEDG standards, addressing diverse hygienic requirements across food, beverage, and pharmaceutical applications with various filtration ratings and materials.
| Category | Details |
|---|---|

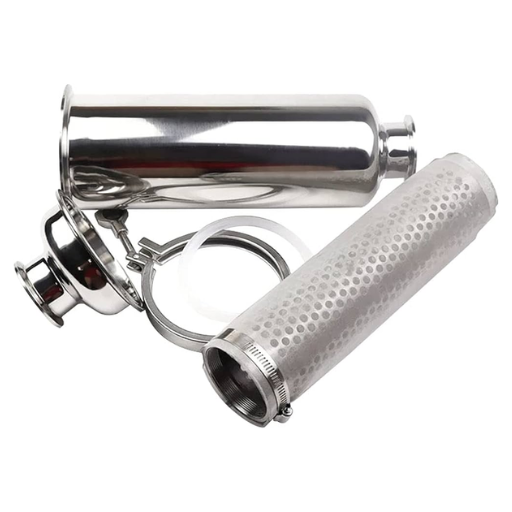

| Characteristics | Inline design, removable perforated basket or wedge wire screen, high flow capacity, quick-release handle for easy cleaning, zero dead-leg design. |
| Surface Treatment | Electropolished to Ra < 0.8 µm, ensuring a smooth, hygienic finish to prevent bacterial growth and meet sanitary requirements. |
| Dimensions & Specs | Sizes: DN25 to DN200 (1" to 8"); filtration range: 0.5 µm to 2000 µm; pressure rating: 10 bar; temperature: -20°C to 180°C; flow rates up to 5000 GPM. |
| Corrosion Resistance | Constructed from 316L stainless steel, resistant to corrosive fluids like chemicals, water, and steam, ideal for sanitary food and pharma environments. |
| Mechanical Properties | High strength, withstands 10 bar pressure, durable for high-viscosity fluids and continuous sanitary processes, supports steam sterilization. |
| Processability | Fabricated with TIG welding for crevice-free joints, easily polished, and assembled with sanitary clamp connections for hygienic integration. |
| Applications | Protects nozzles, pumps, and membranes in food, beverage, pharmaceutical, and water treatment systems; suitable for high-purity liquid filtration. |
| Standards | Complies with FDA, USDA/3A, EHEDG, and ISO 9001, ensuring suitability for sanitary food, beverage, and pharmaceutical applications. |
our latest news
Rectangular tube corner radius is the rounded arc where two flat faces of the section meet. It is described...
To work out the weight of a stainless steel rectangular tube, multiply the metal cross-sectional area...
Stainless steel rectangular tube for handrails comes down to two calls made in order. Choose 304 (MT-304/304L)...
Square vs rectangular tube comes down to one variable: the direction of the load. A square section resists...
Request Inline Strainer Quote
Elevate your food, beverage, and pharmaceutical processes with our high-performance Sanitary Inline Strainer, designed for purity and efficiency—contact us today to explore tailored solutions and optimize your filtration system!
