Understanding ASME Codes: The Complete Guide to Pipe Fitting Standards and Pressure Vessel Requirements

For all matters pertaining to engineering safety and ASME standards, the latter serves as the guiding reference for every industry. These pivotal rules manage the design and construction as well as the examination of pressure vessels and pipe fittings to ensure their functionality and reliability even in extreme conditions. Whether you are an experienced engineer, a project manager, or simply an enthusiast who wants to learn more about these standards, this handbook will guide you through the world of ASME codes step by step. We will present the technical and special fittings defining the scope of this guide so that your work as well as compliance, will be empowered. Come along as we explain the need to understand and apply the basic principles that ensure industries are safe, efficient, and look into the future.

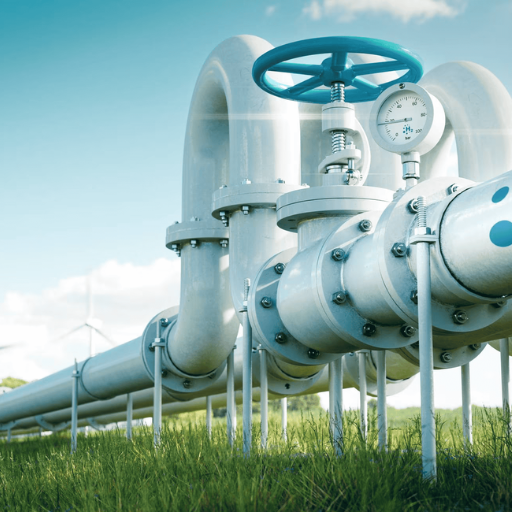

What is the ASME Code for piping and pipe fittings?

The ASME Piping and Pipe Fittings Code is also known as ASME B31, or it is referred to as the “Code for Pressure Piping.” The code sets forth the required specifications for the design, materials, fabrication, installation, testing, and other aspects of piping systems. Like other divisions, it contains B31.1 and B31.3, which cover power and process piping, respectively, each dedicated to specific industry usage. These codes provide a minimum acceptable standard of safety, reliability, and compliance within several industries and sectors regarding piping systems.

Overview of ASME B31 code for pressure piping

It is known worldwide that the ASME B31 code sets the standard on the design and safety of operating pressure piping systems. It is separated into various sections depending on the specific needs of particular industries, which include:

• ASME B31.1 (Power Piping): This covers the piping relevant to the electric power generating station, industrial plants, and district heating plants. It describes structural requirements regarding the very high pressures and temperatures that are characteristic of these systems.
• ASME B31.3 (Process Piping): Commonly used in the petrochemical and allied industries, this code focuses on inflexibility scrutiny, permission for corrosion, and selection of materials with regard to chemical processes for is manufactured for sustaining durability. Take, for example, design regulations for manufacturing plants in chemicals, which have to observe strict policies for risks that involve changes in temperature and pressure.
• ASME B31.4 (Pipeline Transportation Systems for Liquids and Slurries): This section has complete instructions for liquid pipelines conveying crude oil, refined petroleum, and other types of slurries. The standard has both construction and operational provisions to maintain safety for the environment and personnel.
• ASME B31.8 (Gas Transportation and Distribution Piping Systems): This portion addresses natural gas pipelines satisfying onshore and offshore applications. From the materials of construction to the distribution of gas at high pressure, all aspects are taken into consideration.

The ASME B31 standards also include sophisticated testing and inspection practices like non-destructive testing and pressure testing to verify that structural integrity is preserved for the entire life cycle of the piping system. This approach maintains regulatory compliance throughout various stages of a project’s lifecycle, mitigating the likelihood of early system failure.

Compliance with the ASME B31 standard for designing piping systems enables industries not only to protect operational integrity but also to improve efficiency as well as extend the service life of the systems.

How ASME standards regulate pipes and fittings in piping systems

The ASME standards certainly affect the way pipes and fittings are manufactured, maintained, and repaired to prevent any safety and reliability issues with performance across various industries; these standards ensure proper safety and efficiency in piping systems. Certain standards, or codes, such as ASME B31, which is the Code for Pressure Piping, include thorough descriptions on the steps of material and process selection, fabrication, testing, and installation. A good example is ASME B31.3, which looks at process piping, where a base is put on particular materials like carbon steel, stainless steel, and certain alloys, which need to sustain some degree of pressure and temperature. Also, there are requirements for proper testing for the system, like hydrostatic testing, which checks the strength of the system and the leaks in the system itself.

Industries have observed that the standards simplified the design and construction of other systems, alongside greatly improving overall productivity by reducing system failures because they have to comply with international safety standards. To point out one of the examples, it has been determined that when systems were created to ASME standards, operating disruptions fell by 30%, which goes to show the rigorous testing materials and construction techniques at the center of these promises. And also, ASME B16.16, which covers the test standard for various fittings as elbows and tees, which are major parts of flanges, also sets some standards. These ASME standards enable these parts to function towards proper lower system flow resistance and lower the risk for leaks, which together improve the system efficiency. It is clear that embracing these standards allows for quicker execution of projects, lower costs, and extended system life.

Key ASME codes that govern piping components and fitting materials

A few important ASME codes covering piping parts and fitting materials are ASME B16, pertaining to standards for valves, flanges, fittings, and ASME B31, which offers regulations on pressure piping systems. These codes achieve the balanced and safe material selection, design, and construction methods that are required to ensure system integrity and dependability.

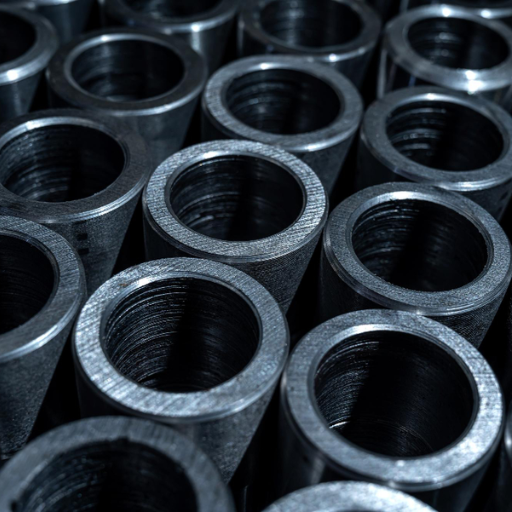

Which ASME standards apply specifically to different types of pipe fittings?

For various categories of pipe fittings, the corresponding ASME standards are:

• ASME B16.9:  Covers factory-made wrought steel butt-welding fittings, ensuring proper dimensions and performance standards.
• ASME B16.11: Applies to forged fittings used for socket-welding and threaded connections.
• ASME B16.5: Governs pipe flanges and flanged fittings, addressing pressure-temperature ratings and material requirements.
• ASME B16.25: Specifies requirements for butt-welded ends, ensuring proper welding preparation.

These norms assist in preserving uniformity, security, and dependability across the piping systems.

ASME B16.9: Standard for factory-made wrought steel fittings

The ASME B16.9 standard covers the butt-welding wrought steel fittings that are manufactured in a factory as a single unit. Oil and gas, chemical processing, and power generation industries widely use these steel fittings because of their durability as well as exceptional performance when subjected to immense pressure and temperature.

This standard outlines many of the most important and frequently used pipe fittings, including elbows, tees, reducers, and caps, which are made out of steel. The requirements include dimensions, material properties, and tolerances that must be followed. For example. A longitudinal radius elbow must not exceed certain wall thickness and radius measurements if it is to maintain flows and piping system integrity. The standard supports pipe schedules from as low as SHE 10 all the way to SCH 160, and beyond, which makes it relevant for many industrial uses.

Typically, ASME B16.9 fittings are made out of carbon alloys and stainless steel. Such metals are subject to rigorous testing and must meet benchmarks concerning tensile strength, impact resistance, and corrosion resistance. Marking requirements mentioned in the standard include the manufacturer’s logo, schedule, and nominal size,e which assures compliance during inspection and installation.

By following the guidelines set by the ASME B16.9 standard, industries can rest assured that the fittings will be of great quality for global infrastructure projects while sustaining the safety and operational efficiency of piping systems.

ASME B16.11: Requirements for forged fittings and threaded fittings

ASME B16.11 is an important standard that describes the scope of forged fittings, both socket-weld and threaded fittings, for use in pressure piping and industry. The standard specifies clear operational dimensions, i.e., material requirements, and pressure-temperature ratings, which will enable these parts to function effectively and reliably within numerous conditions.

The fittings covered by this standard serve the purpose of oil and gas pipelines, chemical processing plants, power generation plants, etc. It also describes the most important geometric features and limits for manufacturing elbow, tee, coupling, and cap fittings, so that they can be paired with standardized pipes of pre-determined dimensions. As an example, socket-weld fittings are designed to create strong, leak-proof connections, while threaded fittings enable quick assembly and disassembly.

ASME B16.11 puts more focus on the requirements of the materials, including their chemical composition and the mechanical components of forging carbon steel, alloy steel, or stainless steel. This ensures that the fittings can withstand significant temperatures and pressures. As an example, a Class 3000 threaded fitting can efficiently be utilized in systems where the pressure is around 3000 psi, depending on material and temperature, for smooth functioning.

Furthermore, the standard contains marking instructions to enhance traceability and support quality control. Such markings usually contain the name of the manufacturer, the size of the fitting, the grade of material, and the pressure rating of the fitting, thus aiding compliance and inspection processes.

Compliance with ASME B16.11 helps industries protect the precision, safety, and functionality of their piping systems on a modular scope, while also making sure that they are aligned with international standards. This helps ensure trust and consistency for numerous infrastructure and industrial works, thus, the standard serves as an essential reference document for engineers and project managers.

ASME B16.5: Specifications for pipe flanges and flanged fittings

ASME B16.5 outlines the fundamental requirements of pipe flanges and flanged fittings, such as their components’ dimensions, materials, pressure-temperature ratings, tolerances, and testing procedures. This standard is relevant to flanges and fittings within the pressure rating range of Class 150 to Class 2500, designed to accommodate pipes with nominal sizes NPS ½ to NPS 24. An overriding concern of ASME B16.5 is that all parts are built and placed in a manner where the safety and reliability concerns are met, thus reducing the risk of leakage and failure in high-pressure and high-temperature environments.

ASME B16.5 also defines the scope of materials, which includes carbon steel, stainless steel, and alloy steel, with the selection criteria being the strength and durability required for the application. Furthermore, the standard outlines facing types to be raised face (RF), flat face (FF), and ring type joints (RTJ), which, depending on the sealing and operational conditions, may serve specific functions.

This standard also calls for thorough flange and fitting hydrostatic and pressure testing to be performed before they are put into use to check integrity and operational readiness. In addition, ASME B16.5 provides comprehensive instructions for flange markings, which include the manufacturer’s name, pressure rating, material, and the standard number for ease of identification as well as uniformity.

ASME B16.5 is critical for the construction and maintenance of resilient piping systems in industrial segments such as oil and gas, chemical processing, power generation, and shipbuilding. It allows engineers to design systems that can endure hostile environments while meeting safety and efficiency standards on a global scale.

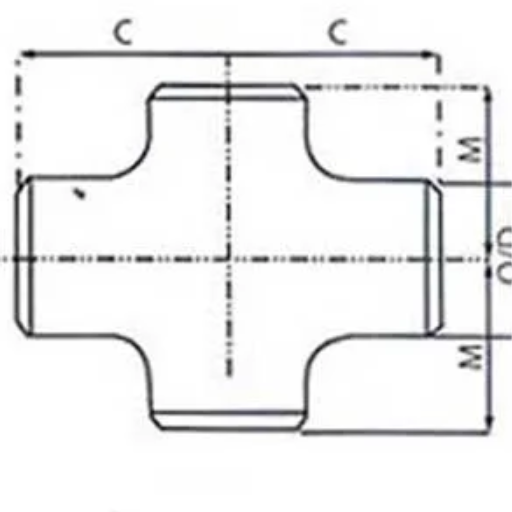

How do ASME fittings’ dimensions and specifications vary across standards?

Like the other standards, ASME fittings dimensions and specifications have their own peculiarities to fulfill the particular needs of specific applications and industries. These peculiarities contain differences in pressure ratings, size ranges, and material type for different temperatures and the general conditions of the environment. For instance, elbows and tees with higher pressure classes require thicker walls and stronger materials, but lower pressure classes may use lighter, more economical designs. One more distinguishing feature of these standards is a concentration on certain types of fittings, such as elbows, flanges, and tees, which have special tolerances and constructions. These differences ensure that operability, safety, reliability, and the overall performance of the piping systems are sustained under varying environmental conditions.

Understanding the standard scope for carbon steel and other material specifications

While reviewing the scope of carbon steel and other materials, one must pay attention to the uses, their performance requirements, and even the environmental considerations that might affect their choice. For example, both ASTM A106 and ASTM A53 are popular for the wrought carbon steel pipes, however, A106 has proved to be more useful in harsher environments, such a high temperature and high pressure conditions, due to its enhanced ductility and strength. Other wrought stainless steel materials, such as ASTM A312, also serve other purposes, es as in the food industry or chemical industry, where they are used extensively because of their outstanding corrosion resistance. Most of these documents usually contain information on material characteristics, such as tensile, yield, and hardness. As an example, carbon steel grades under the American Society for Testing and Materials (ASTM) standards usually offer metric tonnes of tensile strength with values between sixty thousand and seventy thousand (60,000-70,000) psi, depending on the grade. On the other hand, some Wrought stainless steel grades, such as 304 and 316 available offer tensile strength values in the region of seventy to ninety thousand (70,000-90,000) psi and along with superb resistance to oxidation and strong chemicals. In addition, some factors like extreme temperatures and the presence of some corrosive substances can affect the choice of the material to be used. Some documents like API 5L, which deals with line pipes, and ASME B36.10 M, whose subject is welded and seamless steel pipes san emphasize the other requirements like gross thickness tolerances or chemical composition, mechanical components to ensure sustained serviceability over longer durations.

Comprehension of the details and their consequences remains essential for creating sophisticated systems that fulfill industry requirements in relation to safety, cost, and efficiency. The selection of materials, following these standards, allows appropriate formulation for the difficulties posed by the individual cases.

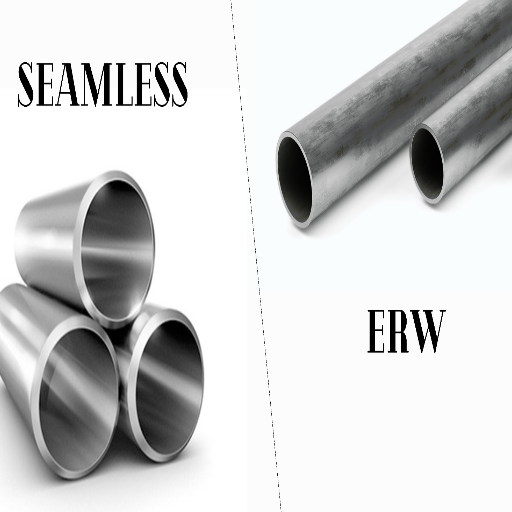

Comparing requirements for seamless pipe versus welding end connections

Assessing seamless pipes and welding end connections presents unique considerations with regard to their use, production, and workability, including their application, manufacturing methods, and performance features. The manufacturing of seamless pipes begins by first heating and shaping solid billets, which results in a uniform cross section devoid of weld seams and homogeneous strength. Pipes produced from this technique exhibit high resistance to fatigue, extreme corrosion, and high-pressure conditions, which makes them ideal for harsh environments like oil and gas transport and high-temperature systems.

Welding end connections are different because they are formed by rolling steel plates or sheets and welding the seams in order to make cylindrical shapes. Welding processes have improved significantly over the years, making these tubes much stronger and more durable. This has also made them more economical for use in applications that do not have to tolerate extreme pressure or require seamless construction. Cost considerations aside, weld seams are susceptible to considerable mechanical or thermal stress, which demands rigorous testing and inspection standards.

Seamless pipes generally comply with rigorous specifications such as ASTM A106 for high-temperature service, while welded pipes tend to fall under less stringent requirements such as ASTM A53 for structural or low-pressure applications. Furthermore, seamless pipes tend to have tighter tolerances for critical applications compared to welded pipes in terms of wall thickness and diameter tolerances. Research suggests that the pressure tolerances of seamless pipes, as compared to welded alternatives, may be 20-30% greater, strengthening their use in high-stress environments.

In the end, the decision on seamless pipes versus welded connections relies heavily on the prioritized operational considerations, which can include performance requirements, available funding, and expected lifetime of the investment.

How ASME codes impact fittings made of pipe versus factory-made components

ASME guidelines influence fittings created from pipes and factory-made parts by providing explicit criteria for design, fabrication, and performance. In my opinion, pipe fittings that are produced from pipes might need more attention to code compliance, especially regarding material uniformity and wall thickness. In contrast, factory-made components have much greater and uniform compliance because they are manufactured under controlled conditions. Compliance with the latter ensures that all components and systems are safe, dependable, and consistent, regardless of the types of fittings used.

What are the ASME requirements for pressure vessel connections and boiler fittings?

The American Society of Mechanical Engineers (ASME) stipulates comprehensive requirements concerning the safety, quality, and operational integrity of pressure vessel connections and boiler fittings. To these purposes, the ASME Boiler and Pressure Vessel Code (BPVC) sets forth the particular standards pertaining to these components, and it is internationally accepted as the reference for these components of great importance. The following is the main overview, considerations, and specifics of these guidelines:

1. Design Criteria

Connections of a pressure vessel have to comply with certain basic principles regarding wall thickness, joints, fracture mechanics, design features, dominantly—they should be built to endure the definite pressures, temperatures, and other environmental factors. Section VIII of ASME divides its rules into two parts, designated as ‘Design Base Rules’: Division 1 sets the minimum design criteria, and Division 2 imposes additional rigidity for critical design scenarios.

2. Material Specifications

3. Welding and Joining Standards

Welded joints play an essential role in the strength of any structure and comply with ASME Section IX on welding and brazing qualifications. This entails certification of welders, a Work Specification Plan (WSP) detailing the scope of work, and extensive non-destructive evaluation techniques like radiographic or ultrasonic examinations.

4. Pressure Testing and Certification

Vessels, along with their interfaces, need to undergo mandatory hydrostatic or pneumatic pressure testing due to the maximum allowable working pressure (MAWP) of the vessel. These tests are described in ASME Section VIII, which takes care of leak testing and material failure testing.

5. Inspection and Maintenance

Regular inspections using phased array UTs and other sophisticated peripherals are part of the ASME regime as enumerated in Section V – Nondestructive Examination and Section XI – Rules for Inspection in Service. These are done with the use of powerful and precise instruments that make use of worn-out fittings over a period of time.

6. Marking and Documentation

Adhering to the mentioned ASME guidelines allows industries to maintain the pressure vessels and their corresponding fittings in a boiler alongside their efficient functioning and operational safety throughout the equipment’s life, while minimizing accidents and failures. This encompasses both the creation of new systems and the evaluation of pre-existing systems. Compliance with all of these requirements is imperative.

ASME Boiler and Pressure Vessel Code requirements for pipe fittings

The procedures for the correct use of piping components in pressure systems are established in the ASME Boiler and Pressure Vessel Code (BPVC). The code states that there are specific requirements pertaining to temperature, pressure, and corrosion resistance that must be observed and that should be applicable to every case. Pipe fittings require inspection, testing, fabrication, and design, all of which must comply with the prescribed conditions. Commonly used materials include: carbon steel, stainless steel, and alloy steel; however, all of them must be verified against the ASME material standards.

Primary concerns in the ASME BPVC pertaining to pipe fittings include: stress analysis, manufacturing processes, and execution and/or testing standards. Stress analysis makes certain that the mechanical forces to which the fitting might be subjected do not surpass a damaging threshold. All piping fittings must withstand at least one and a half times their maximum operating pressure, and all other piping fittings must additionally have the ability to withstand a distinct safety factor controlled above their maximum operating pressure. Manufacturing standards are bound by other standards and require a high degree of precision that would not be otherwise. Fittings that have crucial dimensions are so closely monitored that no loss or breakdown is permitted.

Tight hydrostatic testing requirements include non-destructive testing (NDT) techniques such as radiographic and ultrasound testing to check for anomalies within the fittings. Hydrostatic tests, for example, subject the fitting to water pressure beyond its operational limits to confirm functionality under harsh conditions. NDT techniques are essential for detecting flaws that are too small to guarantee safety but are greatly compromising the fitting.

Moreover, under the code, all traceability of pipe fittings is a major requirement. Each fitting must bear traceable permanent markings signifying its grade of material, the company that made it, and if it follows the standards set by ASME. Such documentation is important for verification during the inspection phase, thus making it easier for industries to comply with stringent safety measures.

Pipe fittings used in power plants and refineries are subjected to these strict regulations, which guarantee that the equipment is safe to use. These industries are aided in minimizing the risks of piping system failures while also ensuring optimal safety and reliability for all applications. Chemical facilities are also included under these requirements.

How ASME III regulates nuclear piping components and fittings

Nuclear facilities require piping components and fittings to be both safe and reliable, which ASME Section III “Rules for Construction of Nuclear Facility Components” provides regulations for. This Standard has hierarchical classifications pertaining to components that contribute to nuclear safety, such as Class 1, Class 2, and Class 3 components, each with its specific sets of design, materials, fabrication, and testing.

As an example of ASME III requirements, welds of Class 1 components with reactor safety implications undergo rigorous NDE examinations. Components also require extensive material evaluation on traits such as corrosion resistance, fracture toughness, and tensile strength. Additionally, advanced nondestructive examinations, RT or UT, are employed to ensure no flaws in welds prior to commissioning.

Stress limits are additionally based on operational factors such as pressure, temperature, and dynamic loads due to seismic activities. The code delineates stipulations through which normal and extreme conditions can be tested, including determining permissible stresses for the piping system.

ASME III places a strong focus on the sufficiency of documentation to trace and maintain accountability. Every single component must have a history file that captures everything from the sourcing of the raw materials to the final inspection of the components. This permits audits to be conducted and helps comply with regulatory bodies in the nuclear domain, assuring the utmost safety in operational conditions.

Because of these standards, ASME III greatly helps to mitigate potential failures, extend the usable life of key components, and maintain the overall safety of nuclear installations across the globe.

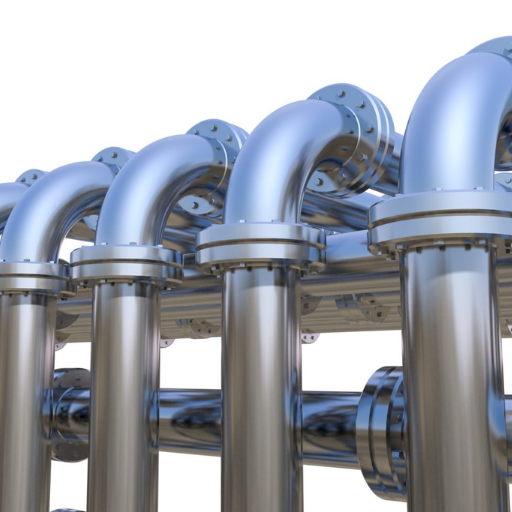

How do ASME piping codes differ across various applications?

The ASME piping codes are distinct in considerations particular to each application. They are, for example:

• Power Plants (ASME B31.1): Concerned with the operation of piping in power generation facilities with high pressure and high temperature, underpinning the safety.
• Process Industries (ASME B31.3): Related to chemical or petroleum industries, it allows more flexibility with the variety of materials and operating conditions.
• Pipeline Systems (ASME B31.4 and B31.8): Text covers the transportation of liquids, gases, and slurries over long distances with a focus on durability and protection of the environment.
• Building Services (ASME B31.9): Designed for the efficient functioning of the commercial and residential building’s low-pressure and low-temperature service pipes.

Every code is developed to achieve the safety characteristics, materials, and performance requirements of the application while complying with the ASME’s general stipulations.

ASME B31.3 requirements for process piping versus ASME B31.4 for pipeline systems

Like other industry standards, codes, and regulations, the ASME B31.3 Process Piping Code pertains to the industrial facilities’ (chemical plants, pharmaceutical, refineries, etc.) piping systems’ design, material selection, fabrication, assembly, and testing. It pays particular attention to high-pressure or high-temperature circumstances, requiring parts and welds to withstand severe operating conditions. Adding thermal expansion and corrosion allowances, stress analysis for robust pipe integrity ensures most advanced safety engineering precision was adhered to. For instance, the calculations done in ASME B31.3 consider the allowable stress for axial load, which is usually some fraction of the material’s yield stress. This approach guarantees structural resilience over time when subjected to operational loads.

On the contrary, ASME B31.4 Code deals with pipeline systems carrying liquids such as crude oil, refined petroleum products, and other fluids over long distances. Foresting and below-grade placed pipelines are critically analyzed for external forces, such as soil stresses, environmental conditions, and therefore pose significant safety concerns for crude oil and other petroleum products. ASME B31.4 sets very stringent requirements for the inspection of cranes, hydrotests, and maintenance to avert leaks or bursts in sensitive areas. Because harmful liquids pose threats to the surrounding environment, regulations demand putting extra safety elements such as overpressure protection and systems for monitoring corrosion.

While both Codes maintain rigorous safety standards, ASME B31.3 deals more specifically with the highly variable conditions of process piping within facilities, whereas ASME B31.4 deals more specifically with the condition and strength of pipeline systems functioning over wide geographical areas.

Power piping standards compared to the distribution piping systems requirements

Power piping and distribution piping systems are distinct areas of focus, and each is catered for by a standard that meets their relevance and practicality. Power piping, in the view of ASME B31.1, resides within the power plants, some industrial plants, and refineries where it carries steam, water, and other fluids used for power generation. These systems operate under high temperatures and pressures, which impose great demands on material strength, thermal expansion, and even stress analysis. For instance, ASME B31.1 has stringent requirements concerning the Inspection and Testing of power piping, specifically within the context of operational readiness, including its power flow level testing.

The distribution piping systems, found within the boundaries of ASME B31.8 for gas distribution and other related codes, for instance, the water utilities, emphasize the safe and economical transportation of gas and water resources over long distances. As compared to power piping, these systems have a lower operating pressure, but do face some environmental problems, which include: exposure to the elements, constant aging, and the demand for periodic attention. In the case of distribution piping, corrosion protection (by means of coverings and cathodic protection) and leak prevention, which is essential in the reduction of loss of resources and the protection of the public, are some of the major concerns of the key standards. A good example is gas distribution pipelines, where regular leak detection surveys must be conducted to avoid safety and environmental issues.

The difference in the operational environment of these systems is a strong reason for different standards; in the case of power piping, the standards put more emphasis on the ability to sustain extreme internal forces, whereas in distribution piping, the focus is on endurance and integrity across wider spans. Both sets of standards are still subject to revision and development in light of new materials and advances in engineering and science.

What should engineers know about ASME codes and standards compliance?

Engineers must appreciate that ASME codes and standards are fundamental in the safety, reliability, and operational efficiency of the design, construction, and operation of systems in various industries. Compliance is more than a suggestion; it is mandatory in a myriad of regulatory and contractual situations. Each engineer must determine which particular ASME codes pertain to their projects, whether they are dealing with pressure vessels, piping systems, or other essential parts, and ensure that these requirements are observed throughout all stages of the project. Monitoring changes to ASME standards is very important because the evolving nature of technology and materials often results in changes to the compliance requirements. Finally, compliance with organizational policies establishes compliance and accountability through documentation and audits.

Key requirements that fittings shall meet per the American Society of Mechanical Engineers

The components of pressure vessels and piping systems are subject to rigorous ASME requirements, which ensure safety, dependability, and operational efficiency. Below are some fitting requirements of these systems:

1. Material Composition and Properties

The materials selected for a fitting must be fabricated from substances suitable for the designated environment and operating conditions, including corrosion resistance, appropriate strength, yield, and ductility at high temperature and pressure. For these reasons, materials employed include carbon steel, stainless steel, and high alloy steel, which all fall under ASME material specifications.

2. Dimensional Standards

3. Pressure Ratings

The maximum operating pressure and temperature of a fitting with a valve should fit within the boundaries of the system. It must comply with established procedures as mentioned in ASME B16.5 for pipe flanges and flanged fittings, so that there is no documented failure of a system under differing pressure amounts. This is why fittings are, on average, rated between 150 up-to-and-over 2500 psi, depending on the class and temperature.

4. Testing and Certification

Every fitting has gone through a lot of rigorous tests so that it may maintain its standing in ASME. This is done through hydrostatic tests, radiographic inspection, and ultrasonic testing, where flaws or weaknesses are identified. Alongside certifications like Material Test Reports (MTRs), we will ensure there is compliance with the needed ASME codes.

5. Marking and Identification

Identification should be ensured via proper marking. Each piece as a part should bear a stamp or engraving signifying the maker’s name, pressure rating, material, grade, and applicable ASME. They must provide clear documentation for each inspection or audit so that no gaps in accountability arise.

6. Weldability Standards

Complying with these requirements is essential for maintaining the accuracy and safety of pressurized systems. Following the standards set by the ASME not only guarantees compliance but also provides peace of mind regarding the reliability and operational capacity of every fitting in the system.

Navigating the B31 code system for different piping applications

The ASME B31 code system is an overarching standard that emphasizes design, manufacturing, and inspection of piping systems in various industries which including construction. Each code within the B31 series is tailored to specific applications so that the requirements meet the demands of the environment and processes. Presented below is a detailed description of the primary codes within the B31 system:

• B31.1 – Power Piping

This code is concerned with the piping systems of electric power generating stations, industrial plants, and institutional plants. It concentrates on the high-power and high-temperature regions of the system to guarantee safety and operational efficiency.

• B31.3 – Process Piping

This code applies to industries such as chemical, petroleum, and pharmaceutical, which process chemicals and fluids. It provides for more modern materials, allowances for corrosion, and special considerations for high temperature and high-pressure conditions.

• B31.4 – Pipeline Transportation Systems for Liquids and Slurries

This section describes piping systems associated with the transportation of crude oil, refined petroleum products, and liquid slurries. It pays special attention to construction for long-distance durability and safety.

• B31.5 – Refrigeration Piping and Heat Transfer Components

• B31.8 – Gas Transmission and Distribution Piping Systems

This code covers gas pipelines pertinent to distribution and long-distance transmission. It ensures safety in the design, installation, operation, and maintenance of natural gas systems and other gaseous applications.

• B31.9 – Building Services Piping

This section deals with the piping systems in residential, commercial, and institutional buildings and includes plumbing, heating, ventilation, and air conditioning (HVAC) systems.

• B31.12 – Hydrogen Piping and Pipelines

It is a prerequisite for designers and engineers to have knowledge of each code’s purpose and scope so that they can ascertain if a piping system is appropriate, dependable, and compliant.

Reference Sources



1. A Guiding Design System for Pressure Vessels Based on 3D CAD1:
   • Key Findings: This study developed a customized 3D CAD system named SINOVATION for pressure vessel design. It significantly improved design efficiency, accuracy, and consistency by integrating design specifications, standards, and a parts library. The system also supports both typical and atypical pressure vessel designs.
   • Methodology: The research analyzed traditional design processes, proposed a structured system with six functional layers, and implemented a guiding design mode for typical vessels. The system was validated through applications in the petrochemical industries.
2. Preliminary Analysis of Long-Term Performance of Piping: Aging and Creep Effects2:
   • Key Findings: This study assessed the synergistic effects of aging, creep, and thinning on nuclear power plant piping. It highlighted that excessive wall thinning and thermal-mechanical loads could lead to deformation, bending, or buckling of pipes.
   • Methodology: Finite element analysis (FEA) was used to simulate the effects of aging and creep on piping. The study considered various thinning rates and material property reductions to evaluate structural integrity.
3. A Recent Review on the Failure Analysis of Boiler Tubes3:
   • Key Findings: The review identified common failure mechanisms in boiler tubes, including overheating, creep, stress corrosion, and erosion. It emphasized the importance of maintenance and proper material selection to prevent failures.
   • Methodology: The study compiled and analyzed case studies using methods like SEM-EDX, metallographic examinations, and finite element analysis to understand failure causes and propose preventive measures.

Frequently Asked Questions (FAQs)



Q: What is the ASME B16 series of standards, and why is it important for pipe fitting?

A: The ASME B16 series of standards is a comprehensive collection of specifications that govern the design, manufacturing, and testing of pipes, valves, and fittings. This series is crucial for the pipe fitting industry as it establishes standardized dimensions, tolerances, materials, and pressure-temperature ratings for various components. The B16 standards ensure safety, reliability, and interchangeability of piping components across different manufacturers and applications. Each standard within the series (like B16.1, B16.5, etc.) addresses specific types of fittings, materials, or applications, making it the applicable piping code for numerous industrial sectors, including oil and gas, chemical processing, and power generation.

Q: What types of fittings are covered by ASME B16 standards?

A: ASME B16 standards cover a wide range of pipes and fittings in cast iron, steel, alloy, and non-ferrous materials. These include but are not limited to: threaded pipe fittings, flanges and flanged fittings made from cast iron and other materials, butt-welding fittings in sizes NPS (Nominal Pipe Size) ranging from small to large diameters, socket-welding fittings, face-to-face and end-to-end dimensions of valves, octal pipe fittings for specialized applications, and various other components essential for creating complete piping systems. The standard includes specifications for both low and high pressure applications, ensuring appropriate safety factors for different operating conditions.

Q: How do I determine the correct pressure-temperature ratings for pipe fittings?

A: Determining the correct pressure-temperature ratings for pipe fittings requires consulting the specific ASME B16 standard that applies to your components. Each standard covers pressure-temperature ratings for the materials and fitting types it addresses. For example, ASME B16.5 provides detailed pressure-temperature rating tables for flanged fittings, while other standards in the series offer similar guidance for different fitting types. These ratings indicate the maximum allowable working pressure at specific temperatures. When selecting fittings, you must consider the operating temperature, pressure, medium being transported, and environmental conditions. The applicable piping code will provide the necessary formulas and tables to calculate safe working pressures based on material properties and service conditions.

Q: What is the ASME code for pressure piping, and how does it relate to B16 standards?

A: The ASME code for pressure piping primarily refers to ASME B31, which is a series of standards covering pressure piping systems for various applications. While B16 standards focus on individual components like fittings, flanges, and valves, B31 addresses entire piping systems and their design, materials, fabrication, inspection, and testing. The relationship between these codes is complementary – B31 often references B16 standards when specifying component requirements. For example, when designing a high-pressure piping system according to B31.3 (Process Piping), you would select flanges that comply with the relevant B16 standard. This integrated approach ensures that individual components meet the requirements for the overall system’s safety and functionality.

Q: How are standards for gas piping systems different from other piping applications?

A: Gas piping systems have unique requirements addressed by specific ASME standards due to the potential hazards associated with gas leakage. ASME B31.8 specifically covers gas transmission and distribution piping systems, while components used in these systems must comply with relevant B16 standards. Gas piping systems require special attention to leak prevention, material compatibility with specific gases, and pressure regulation. The standards for gas piping systems emphasize tighter tolerances, enhanced testing procedures, and additional safety features compared to liquid piping systems. Material selection is particularly critical as certain gases can cause embrittlement or other degradation in some metals. Additionally, threaded pipe connections in gas systems often have special requirements to ensure gas-tight seals, and the standard includes specific provisions for testing and inspection of gas piping installations.

Q: What considerations are important when selecting pipe fittings made from different materials?

A: When selecting pipe fittings made from different materials, several critical factors must be considered. First, compatibility with the fluid being transported is essential to prevent corrosion or contamination. Temperature range is another crucial factor, as materials like cast iron may become brittle at low temperatures while others lose strength at high temperatures. Pressure requirements must be matched to the material’s strength properties. Environmental conditions, including exposure to chemicals, UV radiation, or mechanical stress, will affect material longevity. Cost considerations include not just initial investment but lifecycle costs. Standards compliance is mandatory, with different materials covered by specific sections of the ASME B16 standards. Finally, galvanic corrosion must be considered when connecting dissimilar metals, potentially requiring insulating components to prevent premature failure.

Q: How do ASME standards address butt-welding fittings in sizes NPS and their application?

A: ASME standards, particularly ASME B16.9, comprehensively address butt-welding fittings in sizes NPS (Nominal Pipe Size) by specifying their dimensions, tolerances, testing requirements, and marking procedures. The standard covers various fitting types, including elbows, tees, reducers, caps, and more. It provides detailed specifications for wall thickness, which must correspond to the matching pipe schedule. For high-pressure applications, the standard includes additional requirements for material quality, non-destructive examination, and pressure testing. The standard ensures that butt-welding fittings can be reliably joined to pipe of the same material and wall thickness using full-penetration welds. This creates a seamless system with uniform strength throughout, which is critical for maintaining integrity in high-stress applications like power generation, petroleum refining, and chemical processing.

Q: What inspection and testing requirements are included in this standard for pressure vessels?

A: The ASME Boiler and Pressure Vessel Code (BPVC), rather than the B16 series, governs pressure vessels specifically. Section VIII of the BPVC includes comprehensive inspection and testing requirements for pressure vessels. These include material examination to verify chemical composition and mechanical properties, non-destructive testing such as radiographic, ultrasonic, magnetic particle, or liquid penetrant examinations, depending on vessel classification, hydrostatic or pneumatic pressure testing typically at 1.3 to 1.5 times the design pressure, and dimensional inspections. The standard also requires documentation of all tests, inspections, materials, and procedures used in manufacturing. Notably, pressure vessels meeting ASME standards must be inspected during fabrication by an Authorized Inspector, and upon successful completion and testing, vessels receive an ASME stamp certifying compliance with all relevant code requirements.
