Stainless steel is highly praised for its strength, corrosion resistance, and adaptability in different industries. Not all finishes of stainless steel are the same, and knowing how each one is made is essential for choosing the correct material for your application. Two types of surface treatments that are often confused with each other and used interchangeably are pickling and passivation, despite having distinct differences in purpose, application, and results. This article aims to explain the primary distinctions between pickled and passivated stainless steel, equipping you with the information needed to determine which treatment will meet your needs.

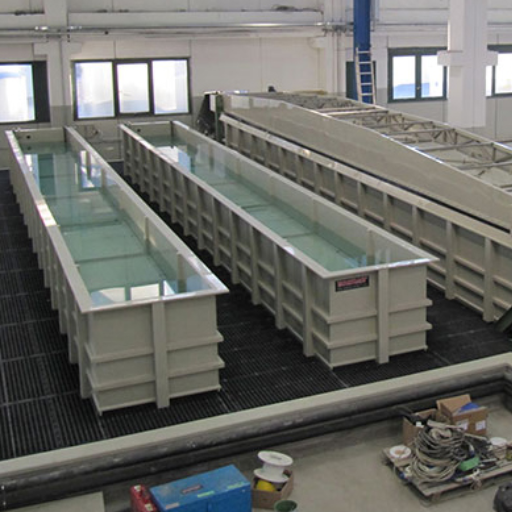

What is the pickling process for stainless steel?
Pickling for stainless steel refers to a chemical treatment process that removes surface blemishes, such as scale, rust, or blotches from welding, or softening due to heat. As pickling is one of the most common processes to refine stainless steel, it typically involves immersing the stainless steel piece in an acid bath. Primarily, a blend of nitric and hydrofluoric acids works best. These acids, in turn, attack the oxide layers and gently dissolve them, restoring the uniform look of the material. In addition to enhancing aesthetic appeal, pickling also ensures the metal’s resistance to corrosion by preparing the surface for passivation or other finishing treatments.
How acid treatments remove impurities from the steel surface
When acids are applied or injected, they start a reaction that removes surface cleaning, scaling, rust, and oxide contaminants. These contaminants are, more often than not, anchored to the steel’s surface on a microscopic scale due to high-temperature processes that oxidize, or allow the steel to corrode over time. The acid solution, customized to match the specific type of impurity and grade of the steel, interacts with contaminants precisely enough to not harm the steel’s skeleton. For instance, iron oxides are mostly treated with nitric acid, which breaks them down to soluble ferric nitrate that can be easily rinsed away. Hydrofluoric acid is different, being remarkably effective compared to chromium oxides and other scales made from high-temperature cleaners. This not only washes away sinks but also improves surface finish comparability, which is vital for cesium capture treatments. Something else modern formulations do is control the process to make materials way more effective, minimizing material loss, boosting safety, and overall risk during treatment.
The role of the pickling solution in enhancing corrosion resistance
Pickling solutions are a critical factor in enhancing the corrosion resistance of metal surfaces in the fabrication of stainless steels, carbon steels, and nickel alloys. It works efficiently in removing surface-embedded oxides, inorganic impurities, and heat tint residues that form during high-temperature treatments like welding or annealing. The residual substances formed during the chemical action of the corrosion pickling solution must be removed to provide a surface free from these substances and with active resistance to corrosion.
Additionally, when used in conjunction with the passivation method, the pickling solution helps to deliver a protective passive oxide coating. This coating reduces the chances of pitting and crevice corrosion, and it also reduces the wear on metal elements in harsh industrial and marine corrosive environments. Research confirms that the progress made in the chemistry of pickling solutions, especially low-fume and environmentally friendly ones, has improved operational efficiency and reduced risks for both those operating the solutions and the environment. Such studies highlight the essentials of pickling solutions in modern materials engineering and surface finishing practices.
Differences between pickling hot-rolled steel vs stainless steel
While examining the procedures for pickling hot-rolled steel and stainless steel, one can notice their differences, which primarily arise from the materials’ composition and surface characteristics. In the case of hot-rolled steel, the procedure is designed to remove the mill scale, a thick oxide crust that forms during the rolling process. Hydrochloric acid is the best option to use for this step because it is both practical and inexpensive. Stainless steel pickling, on the other hand, needs to remove oxide scales as well as chromium-depleted layers that may build up at elevated temperatures. Usually, a blend of nitric and hydrofluoric acids is employed for this process because it assures that the stainless steel’s anti-corrosive properties will not be altered. These two processes have very different chemical formulations, processing durations, and safety measures.

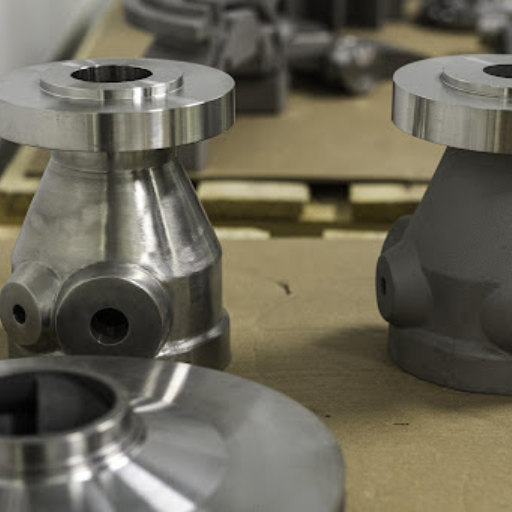

How does passivation differ from pickling for stainless steel?
Both pickling and passivation are two different processes used to treat stainless steel surfaces. In pickling, strong acid solutions are used to remove scales, contaminants, and oxide layers from the metal’s surface. The result is a clean piece of metal with its surface restored. Passivation improves the metal’s resistance to corrosion by forming or strengthening the passive oxide layer through a chemical treatment, typically using a mild acid such as nitric or citric acid. While pickling focuses on cleaning the surface, passivation improves the long-term structural integrity of the steel. Together, the two provide situational advantages.
The chemical process of passivation to create protective oxide layers
How is passivation accomplished as a chemical process? By using a very distinct approach of treating stainless steel or similar alloys with specific solutions, usually consisting of nitric acid, citric acid, or proprietary blends. These free iron contaminants are removed while an inert oxide layer consisting mainly of chromium oxide or free chromium is passively formed. Characteristically, the passive film must have a critical optimal thickness and uniformity to aid in the corrosion resistance of the material when it is placed under different environmental conditions. Control over factors such as the acid concentration used, temperature, and even the dwell time ensures the best conditions for creating passive films on materials. Today, more sophisticated methods such as electrochemical analysis and X-ray photoelectron spectroscopy are used to check the composition of the oxide layer and its thickness, ensuring complete industrial quality assurance.
When passivation is necessary after fabrication
Stainless steel passivation treatment enhances the corrosion resistance of metal components, and it is required after production. During manufacturing, contaminants such as free iron, grease, and other impurities can stick to the surface of the material, affecting its protective oxide coating. Other practices, such as welding, machining, or heat treatment, can introduce microstructural changes or heat tinting, both of which lower the material’s corrosion resistance. Passivation removes these contaminants by dissolving them with mild oxidizing acids, such as nitric or citric acid, which also restores the uniformity of the passive layer. This step is crucial in aerospace, medical device manufacturing, food processing, and other industries where components are exposed to corrosive or sterile environments. Studies indicate passivation improves the reliability of components by reducing localized corrosion, pitting, and general degradation. This ensures compliance with strict industry guidelines and ample reliability.
Nitric and citric acid treatments in passivation
Both nitric acid and citric acid treatment have an equally significant effect on the passivation of stainless steel. However, they differ greatly chemically and in usage. In the case of nitric acid passivation, it is a standard industry practice where free iron constituents and contaminants on a metal surface are removed using a potent oxidizing agent. It ensures that an adequate chromium oxide layer will form to protect the metal against corrosion, severe operational temperatures, and chemical exposure. On top of that, all other areas undergo great care because of the risks posed by nitric acid’s nitric oxide emissions and other toxic waste disposal elements.
Citric acid, on the contrary, poses less harm and gives better results when it comes to health and safety, besides being more eco-friendly overall. Being of biological origin makes citric acid solutions useful in dealing with the difficulties posed by strong oxidizers, as they release iron ions. With increased eco-friendliness, citric acid passivation is said to complete the same tasks as nitric acid in terms of corrosion resistance of stainless steel, while reducing the amount of hazardous waste released. Most industries use both methods, depending on the environment and regulatory compliance.

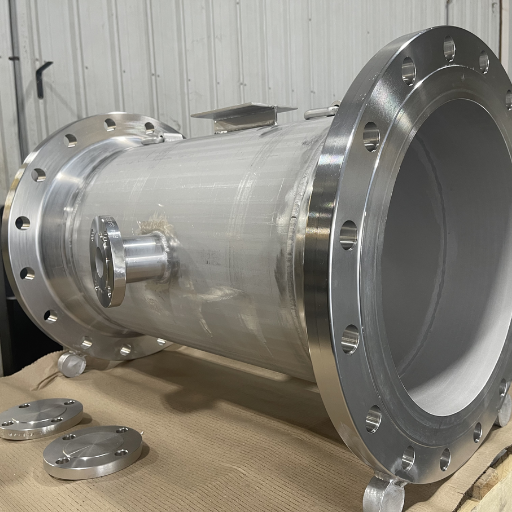

What are the benefits of pickled stainless steel?
The benefits of pickled stainless steel are foundational in making it last longer and operate more efficiently. During the pickling process, not only are surface impurities like oxides and scales removed, but contaminants are also eliminated, resulting in a uniform surface free from structural flaws. This leads to better corrosion resistance, especially in extreme environments. Even more so, pickling also helps to restore the protective chromium oxide layer, which is critical for the durability of stainless steel. These effects are highly beneficial for pickled stainless steel in usage for construction and engineering purpose,s where cleanliness and anti-corrosive properties are of utmost importance.
Superior corrosion resistance and surface quality
Alongside the benefits above, pickling blasting may serve or enhance surface quality treatments, which are crucial in maintaining a material’s efficiency over a long period. These surface treatments become indispensable for critical industrial applications due to the precision achieved in removing defects and contaminants, which lowers the rate of localized corrosion. Attending to surface quality in this manner leads to reduced friction and improved weldability. Such simple changes in surface structure can have a significant impact on the performance of materials in medical devices, power plants, and processing facilities, where material standards are stringent for safety and reliability.
Improved mechanical properties and durability
The improvement of mechanical qualities and durability of materials is attributed to advanced surface engineering techniques. Procedures like shot peening, nitriding, and thermal spray coatings form any layer of the surface with compressive residual stresses, which enhance fatigue strength while reducing cracking in the subsurface region due to cyclic loading. The increased hardness and wear resistance due to these enhancements are crucial to the longevity of the components when exposed to high stress, abrasion, or rapid temperature changes. Developments in material science suggest that these methods can increase tensile strength by up to 20% and make the material more than 30% resistant to abrasion, depending on the metastable material and its intended use. Such enhancements are vital for the aerospace, automotive, and heavy industries, where parts are expected to sustain extreme operational stress for a long time.
Enhanced aesthetic appearance and smooth surface finish
Incorporating advanced surface treatments enhances both mechanical properties and aesthetic appeal, as well as surface smoothness. Propranolol polishing, chemical vapor deposition (CVD), and laser texturing can produce surfaces with improved gloss, reduced roughness, and better uniformity. Recent industry studies suggest these approaches can achieve sub-micron surface roughness, which is critical for medical implants and high-performance optical components. Such roughness optimizations improve functionality, especially in terms of retaining lubricants and achieving low friction coefficients, which expands the range of use in advanced engineering applications.

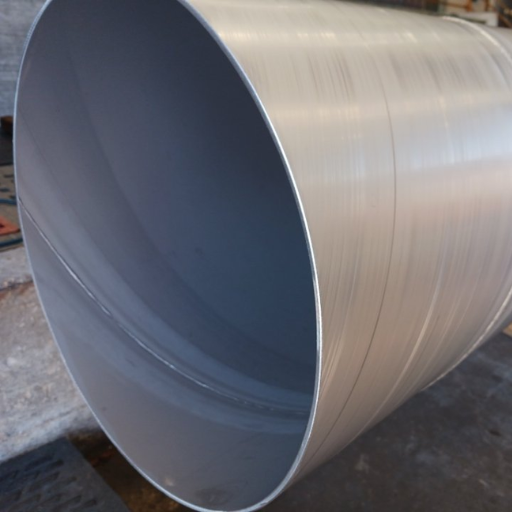

What are typical applications for pickled vs. passivated stainless steel?
The pickling process of stainless steel is used in contexts where surface scaling or extensive bluing— which often accompanies high temperature work—is done for processes such as steam cleaning, sand blasting and bead blasting. The chemical, food production, and energy industries fall under processes that require uncompromised surfaces, as surfaces that are contaminated or damaged will affect performance.
Passivation of stainless steel is generally implemented in industries such as medical equipment manufacturing, aerospace part fabrication, and marine applications because they require heightened protection from corrosion. This treatment serves critical high exposure applications by strengthening the natural oxide layer of the steel making it more dependable and enduring, It is ideal for applications which will be subject to severe conditions.
Food and beverage industry requirements
Food-grade stainless steel is the best alloyed stainless steel because it meets the stringent requirements set by regulators, such as safety, cleanliness, and efficiency during proper operational use. Any surface that may come into contact with food must meet standards that allow it to be certified by the FDA, EFSA, and other relevant regulatory bodies. These standards include the use of non-toxic and corrosion-resistant materials that are easy to clean and maintain. Stainless steel, especially grades 304 and 316, is the most common material because it can withstand constant cleaning, high temperatures, and exposure to acidic substances.
Additionally, in this industry, passivating stainless steel surfaces enhances the removal of contaminants while strengthening the protective chromium oxide layer. This process reduces the chances of cross-contamination, microbial contamination, and material degradation over time. Following international requirements, such as the ISO 22000 Standard or ASME’s Food Grade Material Guidelines, has become a prerequisite to satisfy the sector’s benchmarks for operational health and safety. These sectors have set these requirements to balance safety with innovation and the need for practice in choosing materials used in food and beverage processing environments.
Marine and industrial environments
Marine and industrial surroundings are uniquely challenging due to their combination of high humidity, salt corrosion, extreme temperatures, and mechanical stress. The materials and structures in such locations must be highly resistant to corrosion, wear, and chemical degradation to maintain successful operations. To overcome such hurdles, advanced materials such as marine-grade stainless steel (316L) and epoxy-thermoplastic polymer coatings are often used. In addition, eco-friendly anti-corrosion treatments and coatings are being developed, showcasing the balance of sustainability and resilience that the industry strives for. In an industrial setting, compliance with ASTM regulations and strict maintenance intervals is crucial for achieving the reliability and safety of key equipment and systems in harsh environments.
Pharmaceutical and hygiene-critical applications
In the pharmaceutical and hygiene-critical industries, sterility, sanitation, and relevant hygiene protocols must be strictly followed to preserve the safety and efficacy of the products. All surfaces, containers, and manufacturing equipment need to be resistant to both microbial attack and chemical degradation. To prevent biofouling, advanced antimicrobial and hydrophobic coatings can be readily applied to minimize the retention of bacteria and biofilms. Polymers such as polypropylene and stainless steel of pharmaceutical grade are popular due to their inert surfaces, ease of cleaning, and minimal reactivity.
Advanced methods, such as clean-in-place (CIP) systems and high-performance HEPA filters, are used to maintain controlled environments in aseptic conditions. Regulatory authorities, such as the FDA and EMA, emphasize the observance of Good Manufacturing Practices (GMP) in terms of materials used, facility layout, and workflow systems, which are designed to ensure effective and consistent quality control. Moreover, such practices reduce the potential risks of cross-contamination or loss of sterility during production and handling phases.

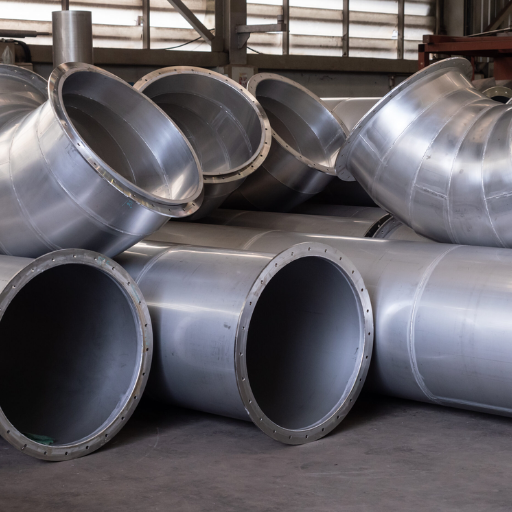

How to identify if stainless steel has been pickled or passivated?
To determine if stainless steel has been pickled or passivated, visual inspection and chemical tests are the most effective methods:
- Visual Inspection: Pickled stainless steel often has a matte, uniform finish due to the removal of surface impurities through acid treatment. Passivated stainless steel, on the other hand, typically retains a more polished or natural appearance since the process enhances the existing oxide layer without significant surface modification.
- Chemical Testing: Perform a simple water break test. With passivated stainless steel, water tends to bead uniformly across the surface, indicating the presence of a passive oxide layer. Additionally, specialized chemical solutions specifically designed to detect passivation can confirm the presence of a protective chromium oxide layer.
By using these methods, a reliable distinction can be made between pickling and passivation processes.
Visual and physical characteristics of treated steel surfaces
When evaluating treated steel surfaces, specific visual and physical attributes can be recognized that indicate the effectiveness of processes such as pickling and passivation. The surfaces of treated steel usually have a uniform, matte finish, free from contaminants like scale, rust, and discoloration. This means the oxide layer has been removed and the surface has been adequately prepared.
The corrosion resistance of steel surfaces that have been passivated is boosted further by the addition of a stable and protective chromium oxide coating, which forms a stable layer. This protective layer, which is critical for the durability of stainless steel, is evident from the uniform and consistent appearance of the metallic surface. Furthermore, the absence of streaks, stain marks, and non-uniform patterns indicates that the treatment is optimal.
In terms of physical attributes, treated steel surfaces will have an increased smoothness since the removal of impurities enhances surface smoothness. Surface roughness profile Ra can be measured using a profilometer and tends to decrease after proper treatment. Moreover, hardness and surface integrity tests readily show that the treated steel retains its structural properties after treatment. This set of features enables an accurate assessment of the surface treatment’s effectiveness, meeting industrial requirements.
Testing methods to verify surface treatments
To check surface treatments, I would use a combination of different tests. To start, profilometry checks if the surface roughness meets the Ra requirements and confirms that the required values have been achieved. Furthermore, Vickers or Rockwell hardness testing would verify that the material’s mechanical properties remain unchanged after treatment. Visual inspections and non-destructive tests (NDTs), such as ultrasonic or dye penetrant tests, can detect the presence of potential surface defects, including cracks and porosity. Furthermore, where required, advanced techniques, including electron microscopy, enable analysis of the surface microstructure to ensure the treatment does not compromise the material’s microstructure. Employing these techniques allows me to guarantee an appropriate assessment of the effectiveness of surface treatment.

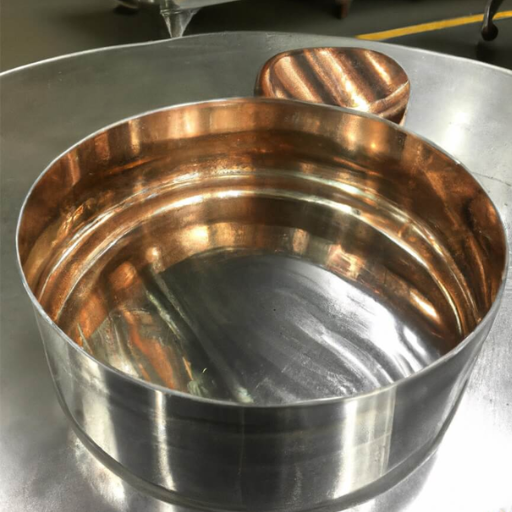

What are the risks of improper pickling or passivation?
Risks associated with improper pickling or passivation processes can critically impact the performance and strength of the metal surface. Firstly, failing to remove oxides, scale, and other contaminants adequately can result in localized corrosion. Secondly, uneven chemical reactions during troublesome treatments lead to pitting or etching across the surface. Residuals from insufficient rinsing after these processes may include dormant corrosive acids, ramping up material degradation, and corrosion over time. All these potential issues emphasize why compliance with set protocols is critical in ensuring surface quality and corrosion resistance over time.
Potential contamination and corrosion issues
Corrosion and contamination shockingly dominate several industries, especially those working with metals, electronics, and high-precision materials. The presence of contaminant substances, such as chloride ions, sulfur compounds, or organic matter, can stimulate the onset of localized corrosion, posing a significant threat to the structural integrity and functionality of the material. These and other environmental elements, such as changes in humidity and temperature, along with pollution, pose significant oxidative threats that react with the surroundings and help form corrosive substances.
New developments in surface treatment technologies underscore the need for strict control procedures within the workspace. Procedures in this regard include cleanroom operations, the adoption of ultraclean filters, and specialized protective coatings or inhibitors that safeguard against aggressive environments. Additionally, monitoring systems with high precision that use electrochemical measurement devices or automated inspection systems can identify early signs of degradation, enabling timely remedial action. During manufacturing and maintenance operations, ensuring material compatibility is critical because improper combinations may trigger galvanic corrosion. Effective contamination management and corrosion control in integrated systems are crucial for optimizing performance and extending the service life of essential systems.
Impact on weld integrity, strength, and toughness
The integrity of the weld is directly influenced by contamination and corrosion, as they can adversely impact the mechanical and structural properties of the welded joints. Cleansing contaminants like water, oil, or cleaning agents left over after the cleaning process would lead to stud welding and fusion, weakening the weld. Moreover, aggressive environments can promote other forms of microstructural degradation and increase susceptibility to stress-dependent cracks or hydrogen stress cracks.
Even though these two features are assessed separately, both strength and toughness are affected because contamination can hinder proper metallurgical bonding at the weld interface, which decreases the load-bearing capacity. The corrosion further aggravates the problem by commencing localized pitting or crevice corrosion, which increases the rate of mechanical failure with cyclic or static loads. Mitigation of these risks can be accomplished with more sophisticated welding procedures, better shielding gases, and thorough surface preparation before welding. Such mitigation guarantees optimal weld effectiveness under operational stresses. Specific technical analyses offer extreme precision about the quality of the weld and its associated failure modes, such as ultrasonic inspection and fractographic analysis, which strengthen the foundation for durable and reliable welded assemblies.
Environmental concerns with acid treatments
The application of acid treatments in sectors such as oil and gas, metal cleaning, or water treatment comes with advantages. However, these techniques can often result in ecological damage. The sulfuric, hydrochloric, and phosphoric acids can disrupt the natural equilibrium of water bodies by discharging in untreated forms. The uncontrolled usage of these chemicals augments the toxicity and pH levels of water, severely impacting marine life. The neutralization steps used when disposing of spent acid solutions have potential shortcomings, which can lead to contamination of land and groundwater. Moreover, the production of acids and their byproducts often contributes to the emission of harmful greenhouse gases, resulting in seasonal changes. To minimize these impacts, severe boundaries and advanced treatment methods are required that focus on eco-friendly techniques, along with the design of easily dissolvable acidizing agents.
Reference Sources
1. The Influence of Processing on the DNA Integrity in Several Raw Materials of Marine Foods
- Key Findings: This study examines the effects of curing and pickling on DNA integrity in marine foods. It highlights that curing with high salt concentrations can denature enzymes and stabilize DNA, while pickling primarily affects DNA during the initial stages due to enzyme activity. The study emphasizes the importance of selecting appropriate DNA extraction methods for processed foods.
- Methodology: The research uses DNA extraction and analysis techniques, including UV-visible absorption and electrophoresis, to evaluate the impact of curing and pickling on DNA quality in various fish species.
2. The Problems of Meat Products Thermal Treatment
- Key Findings: This paper explores the effects of thermal treatment, including curing and pickling, on meat products. It discusses how curing enhances flavor and preservation through the application of salt and nitrite, while pickling introduces acidity to inhibit microbial growth. The study also examines the impact of these processes on protein denaturation and product safety.
- Methodology: The research analyzes the physical, chemical, and microbiological changes in meat during curing and pickling, using methods like microbiota screening and protein solubility tests.
- Key Findings: This study focuses on the fermentation process of kimchi, which involves two stages: curing and pickling. It highlights the role of lactic acid bacteria in creating a unique flavor and improving gut health. The research also discusses the nutritional benefits of kimchi, including its high fiber, vitamin, and probiotic content.
- Methodology: The study analyzes the physicochemical changes during fermentation, microbial community dynamics, and the health impacts of consuming kimchi, using both laboratory and literature-based approaches.
Frequently Asked Questions
Q: What is the main difference between pickled and passivated stainless steel?
A: The main difference lies in their processing and purpose. Pickled stainless steel undergoes a treatment in which strong acids, typically hydrochloric or sulfuric acid, remove surface impurities, scale, and rust from the metal. Passivation, on the other hand, is a process that creates a protective oxide layer on stainless steel, significantly enhancing its exceptional corrosion resistance. While pickling is primarily about cleaning the surface, passivation is about improving the metal’s natural protective properties for longevity in corrosive environments.
Q: How does temperature affect pickled and passivated stainless steel?
A: Temperature plays a crucial role in both processes. During pickling, the acid bath temperature must be precisely controlled to ensure effective removal of contaminants without damaging the base metal. For passivation, temperature control is equally important as it affects the formation of the protective chromium oxide layer. Additionally, the performance of these treated steels varies under service conditions – passivated stainless steel typically maintains its corrosion-resistant properties at high temperatures better than merely pickled steel, making it ideal for applications in environments with temperature fluctuations.
Q: Which industries commonly use pickled and passivated stainless steel?
A: Both treatments are widely used across manufacturing sectors, but their applications vary based on specific requirements. Pickled stainless steel is commonly used in industries such as construction, automotive, and general fabrication, where clean, scale-free surfaces are required. Passivated stainless steel is preferred in food processing, pharmaceuticals, chemicals, and medical equipment manufacturing, where hygiene and exceptional corrosion resistance are crucial. The choice between the two often depends on the level of exposure to corrosive environments and the need for longevity in specific applications.
Q: What is HRPO steel, and how does it relate to pickled stainless steel?
A: HRPO (Hot Rolled Pickled and Oiled) steel is a variant of pickled steel that undergoes an additional oiling process after pickling. Unlike stainless steel, which contains chromium, HRPO is typically carbon steel. The relationship between them is in the pickling process – both undergo acid treatment to remove surface impurities and scale. However, pickled stainless steel doesn’t require the protective oil coating that HRPO needs, as stainless steel has inherent corrosion resistance due to its chromium content. HRPO is more cost-effective for structural applications where the exceptional corrosion resistance of stainless steel isn’t necessary.
Q: How do cleaning requirements differ between pickled and passivated stainless steel?
A: Cleaning requirements for these materials differ based on their surface treatment. Pickled stainless steel may require more frequent cleaning as it lacks the enhanced protective layer of passivated steel. When cleaning either type, it’s important to avoid abrasive materials that could damage the surface. For passivated stainless steel, harsh chemicals should be avoided as they might compromise the passive layer. In environments where hygiene is crucial, such as food processing, passivated 304-grade stainless steel is often preferred because it maintains its clean surface with minimal maintenance.
Q: What acids are used in the pickling process for stainless steel?
A: The pickling process for stainless steel typically employs a combination of strong acids to remove surface impurities. The most commonly used acids include hydrofluoric acid mixed with nitric acid or sulfuric acid. These acidic solutions effectively dissolve oxide scales, rust, and other contaminants from the metal surface. After the acid treatment, a thorough rinse is essential to neutralize any remaining acid. It’s worth noting that the pickling process involves hazardous chemicals and must be performed under controlled conditions with proper safety measures in place to protect both workers and the environment.
Q: How does the grade of stainless steel affect the passivation process?
A: The grade of stainless steel significantly influences the passivation process and its effectiveness. High-grade stainless steels, such as 304 and 316, with higher chromium content, form more robust passive layers, resulting in superior corrosion resistance. The composition of the passivation solution and the processing parameters must be tailored to the specific grade for optimal performance. Some grades may require more intense or more prolonged passivation treatments, while others might need specialized solutions. Understanding the relationship between steel grade and passivation requirements is essential for achieving the desired corrosion protection in various environmental conditions.
Q: What are the advantages of passivated stainless steel over merely pickled stainless steel?
A: Passivated stainless steel offers several advantages over steel that has only been pickled. The most significant benefit is its enhanced and exceptional corrosion resistance, particularly against acidic environments and prolonged exposure to moisture. Passivated steel also demonstrates better durability and longevity in challenging conditions, which reduces maintenance costs and extends service life. The passive layer provides a more consistent surface finish, which is beneficial for applications where appearance matters. Additionally, passivated stainless steel is more suitable for applications that require strict hygiene standards, as the passive layer creates a smoother surface that is less prone to bacterial growth and easier to clean.
Q: Can pickled or passivated stainless steel be customized for specific applications?
A: Yes, both pickled and passivated stainless steel can be customized to meet specific application requirements. The pickling process can be adjusted in terms of acid concentration, temperature, and duration to achieve different surface finishes and cleanliness levels. Similarly, passivation treatments can be modified by varying the chemical composition of the passivation bath, treatment time, and temperature to enhance particular properties. Furthermore, these processes can be combined with other treatments, such as electropolishing or mechanical finishing, to achieve the desired tensile strength, surface appearance, and performance characteristics. This wide range of customization options makes stainless steel suitable for a diverse range of applications across various industries.
