Industry Insight: Electric Resistance Welded (ERW) pipes represent a crucial manufacturing solution in modern steel pipe production, offering precise dimensional control, cost-effectiveness, and reliable performance across diverse industrial applications from oil and gas transportation to structural engineering.

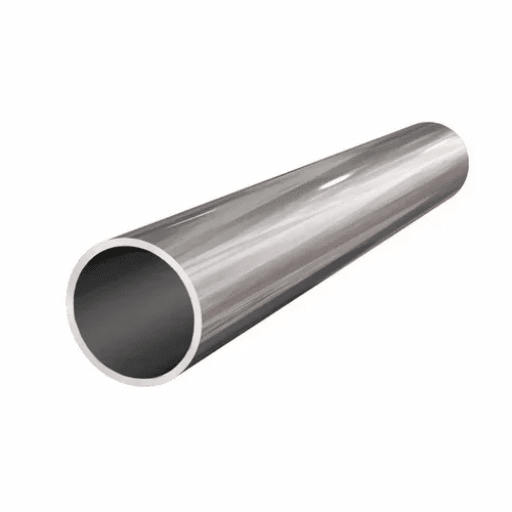

What is ERW Pipe?
ERW Pipe Definition: Electric Resistance Welded (ERW) pipe is a steel pipe manufactured using electrical resistance to weld the edges of steel plates or strips. The process involves forming steel into a cylindrical shape and applying heat and pressure to create a welded seam along the pipe’s length.
Key ERW Characteristics
- Uniform Wall Thickness: Consistent dimensional tolerances throughout the pipe length
- Superior Surface Finish: Smooth internal and external surfaces
- Cost-Effective Production: Efficient manufacturing process for high-volume applications
- Versatile Applications: Suitable for low to medium pressure systems
- Quality Welded Seam: Strong longitudinal weld without filler materials
ERW vs EFW: Technical Comparison
ERW Pipes
Process: Electric resistance welding without filler material
Applications: Low-medium pressure systems, water/gas transport, structural applications
Advantages: Precise tolerances, cost-effective, lightweight
Typical Use: Municipal water systems, scaffolding, general construction
EFW Pipes
Process: Electric fusion welding with filler materials
Applications: High-pressure systems, chemical processing, power generation
Advantages: Superior strength, high-pressure resistance, durability
Typical Use: Oil & gas pipelines, chemical plants, power stations
| Comparison Factor | ERW Pipes | EFW Pipes |
|---|---|---|
| Manufacturing Complexity | Lower complexity, faster production | Higher complexity, specialized equipment |
| Cost Effectiveness | More economical for volume production | Higher cost due to process complexity |
| Pressure Rating | Low to medium pressure applications | High pressure and temperature applications |
| Wall Thickness | Thinner walls, lighter weight | Thicker walls, enhanced durability |
| Dimensional Accuracy | Excellent tolerance control | Good, but may have slight variations |
ERW Steel Pipe Applications
Primary Industrial Applications
Oil & Gas Transportation
Pipeline construction for petroleum and natural gas distribution, representing over 60% of pipeline infrastructure
Water Supply Systems
Municipal and industrial water distribution networks, sewage systems, and drinking water infrastructure
Structural Applications
Building frames, bridges, industrial structures – comprising approximately one-third of global ERW demand
Automotive Industry
Chassis components, roll bars, exhaust systems requiring precision and durability
Agricultural Systems
Irrigation networks and water management systems for efficient agricultural water distribution
Construction & Infrastructure
Scaffolding systems, temporary structures, and permanent infrastructure installations
ERW Manufacturing Process
The Electric Resistance Welding process transforms flat steel strips into precision-engineered cylindrical pipes through a controlled sequence of forming and welding operations.
Steel Strip Preparation
Steel coils are unrolled and flattened, then fed into forming mills that gradually shape the flat strip into a tubular configuration. Edge preparation ensures precise alignment for welding.
Tube Formation
Progressive forming rollers gradually bend the steel strip into a circular cross-section, maintaining precise dimensional control throughout the forming process.
Electric Resistance Welding
High-frequency electric current heats the strip edges to fusion temperature, creating a forge weld without filler materials. This produces a continuous, strong seam along the pipe length.
Sizing and Shaping
The welded pipe passes through calibrating rolls to achieve final dimensional specifications and remove any weld flash or irregularities.
Quality Testing & Finishing
Non-destructive testing (NDT) including ultrasonic and eddy current testing verifies weld integrity. Surface treatments and coatings may be applied for corrosion protection.
Advanced Manufacturing Technologies
Modern ERW Manufacturing Features:
- Machine learning algorithms for process optimization
- Real-time monitoring systems for quality control
- Advanced NDT techniques (UT, ET, radiography)
- Automated roll alignment and tension control
- Precision temperature and current monitoring
Materials and Quality Control
Primary Materials Used
| Material Type | Characteristics | Applications |
|---|---|---|
| Low Carbon Steel | Excellent weldability and formability | General construction, water systems |
| High Strength Low Alloy (HSLA) | Enhanced strength-to-weight ratio | Structural applications, automotive |
| Stainless Steel | Superior corrosion resistance | Chemical processing, food industry |
| Micro-alloy Steels | Precise chemical composition control | High-performance applications |
Quality Control Standards
ERW pipe production adheres to rigorous international standards:
- ASTM Standards: A53, A135, A178 for material specifications
- API Standards: API 5L for pipeline applications
- ISO Standards: ISO 3183 for petroleum and natural gas industries
- ASME Standards: Boiler and pressure vessel applications
ERW vs Seamless Pipe: Comprehensive Analysis
Critical Performance Comparison
The selection between ERW and seamless pipes depends on specific application requirements, operating conditions, and economic considerations.
| Performance Factor | ERW Pipes | Seamless Pipes | Optimal Application |
|---|---|---|---|
| Manufacturing Method | Electric resistance welding of formed strip | Piercing and extrusion of solid billet | ERW: High volume production Seamless: Critical applications |
| Pressure Rating | Low to medium pressure systems | High pressure and temperature systems | ERW: Water, gas distribution Seamless: Oil & gas transmission |
| Wall Thickness Uniformity | Excellent consistency | Slight variations possible | ERW: Precision applications Seamless: Heavy-duty service |
| Cost Effectiveness | More economical production | Higher manufacturing costs | ERW: Budget-conscious projects Seamless: Critical infrastructure |
| Stress Concentration | Weld seam potential stress point | No weld seam, uniform stress distribution | ERW: Standard applications Seamless: Cyclic loading conditions |

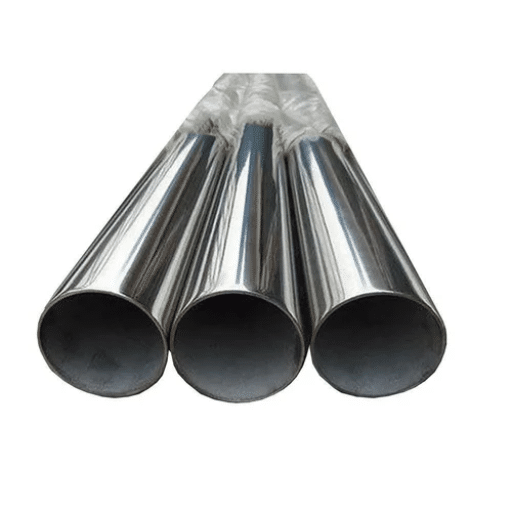

Advantages of ERW Stainless Steel Pipes
Dimensional Precision
Exact diameter, thickness, and length specifications with tight tolerances
Cost Efficiency
Lower production costs compared to seamless alternatives
Surface Quality
Superior finish quality from HFRW processes
Strength & Durability
Excellent mechanical properties and temperature resistance
Standards Compliance
Meets API 5L, ASTM A778, ASTM A312 specifications
Versatile Applications
Suitable for diverse industrial and commercial uses
Industry-Specific Applications
Stainless Steel ERW Pipe Applications
| Industry Sector | Specific Applications | Key Requirements |
|---|---|---|
| Petrochemical | Process piping, storage systems, refineries | Pressure resistance, corrosion protection, API compliance |
| Water Treatment | Distribution networks, treatment facilities, desalination | Corrosion resistance, long-term durability, hygiene standards |
| Food Processing | Process equipment, storage tanks, conveying systems | Sanitary design, easy cleaning, FDA compliance |
| Pharmaceutical | Process piping, clean utilities, sterile systems | High purity, sterility, validation requirements |
| Construction | HVAC systems, plumbing, architectural elements | Durability, aesthetics, code compliance |
Emerging Applications
Renewable Energy Sector Growth
ERW stainless steel pipes are increasingly utilized in renewable energy projects, including:
- Solar Panel Infrastructure: Mounting systems and fluid transport
- Wind Turbine Components: Structural elements and hydraulic systems
- Geothermal Systems: Heat exchangers and distribution networks
- Hydrogen Technology: Storage and transport systems for clean energy
Construction and Infrastructure Benefits
Structural Applications
Building Frameworks
Columns, beams, and structural supports for residential, commercial, and industrial buildings
Water Infrastructure
Municipal water distribution, wastewater collection, and treatment facility piping
Transportation Infrastructure
Bridge construction, highway projects, and railway infrastructure applications
Scaffolding Systems
Temporary construction support structures with high load capacity and easy installation
Energy Transmission
Pipeline networks for gas and oil distribution in urban and remote locations
References
-
Experimental Determination of Stress Corrosion Crack Rates in ERW Pipes
Research on stress corrosion cracking in ERW seam-welded pipes, also hosted on Academia.edu.
Visit the site -
Arkansas Gas Pipeline Code – ERW Pipe Regulations
A legal document from Cornell Law School discussing regulations for low-frequency ERW pipes in pipeline segments.
Visit the site -
Circular Welded Carbon-Quality Steel Pipe from India
A publication from the U.S. International Trade Commission discussing specifications and standards for ERW pipes.
Visit the site
Frequently Asked Questions (FAQ)
What does ERW pipe mean exactly?
ERW pipe refers to Electric Resistance Welded pipes. It is a type of metal pipe made of steel, s which is made by rolling out a steel sheet and then welding the edges to make the joint. Another way to put it is, ERW tubes are a kind of tubes whose production process involves heating the steel to a certain temperature, beyond which no materials are required to manufacture the joint, but rather it creates a welded joint across its thickness.
What are the factors that differentiate ERW from EFW pipe?
Basically, ERW (Electric Resistance Welded) and EFW (Electric Fusion Welded) pipes are different because of their respective manufacturing processes. As general understanding about ERW piping systems is clear, say they use electric resistance in welding, EFW pipes employs fusion welding which is another method. Such order creates differences in terms of the characteristics of the pipes e.g. their strength and appropriate range of application.
What is the process of making ERW pipes?
In the production of ERW pipe, a section of steel is bent into a circular form. The ends of the steel are pressed together causing heat generation on applying electrical resistance until a bond forms between them without any filler. It can be assured that the weld produced will be strong and of good quality.
What is erw pipe meaning specifically to the materials, what are they?
Carbon steel is most often used to produce ERW pipe, although stainless steel can be used instead, depending on the application of the pipe. It is important to note that the material used to make the pipe influences the overall durability of the pipe, as well as its ability to withstand corrosion and applicable for use under various conditions.
What are the normal dimensions for steel ERW pipes?
The sizes of commercial ERW steel pipes based on their use, among other factors, range from the smallest diameter to the largest possible size that serves different businesses purposes. The majority of the designs fit into the dimensions present in normal production.
In manufacturing of ERW, what technology has been employed?
ERW pipes are manufactured using a special resistance welding process to join the steel edges that have been shaped into a tube. This electric resistance welding process used in welding the pipe seams before rolling the pieces out, yields tougher and more impeccable CDs than welding through other means.
Are stainless steel ERW pipes the same as ERW steel pipes?
ERW stainless steel pipes are overall different from ERW carbon steel pipes in two aspects: composition and resistance to corrosion. In particular, they are made of stainless steel and, therefore, offer resistance to corrosion in such conditions and applications where everybody expects that metallic pipes cannot survive in.
How does this ERW process of making steel pipes work?
To produce steel pipes using the electric resistance welded (ERW) process, several stages ought to be undertaken, which include using a flat steel sheet that is rolled into a tubular shape before the edges are joined via resistance welding. This method is efficient and does not jeopardize the quality and sturdiness of the pipes for use in different sectors.
Can an erw pipe be made without a seam?
No, erw pipe meaning isn’t totally seamless unless it gives out a medially welded seam. A seamless pipe on the other hand is made out of only one piece single billet which is not joined making it distinct from electric resistance welded pipes.
