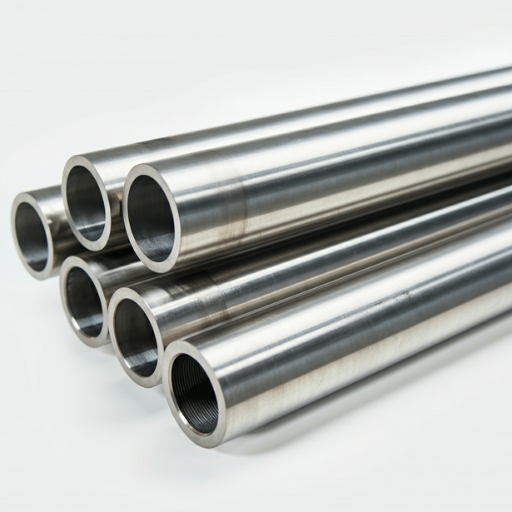

Premium Supplier of N08367 Heat Exchanger Tubes in China
The N08367 Stainless Steel Heat Exchanger Tube is engineered for excellence, offering superior corrosion resistance and exceptional durability. Perfect for chemical processing and marine applications, it ensures reliability and performance in the harshest environments. Ideal for industries demanding strength, longevity, and efficiency.

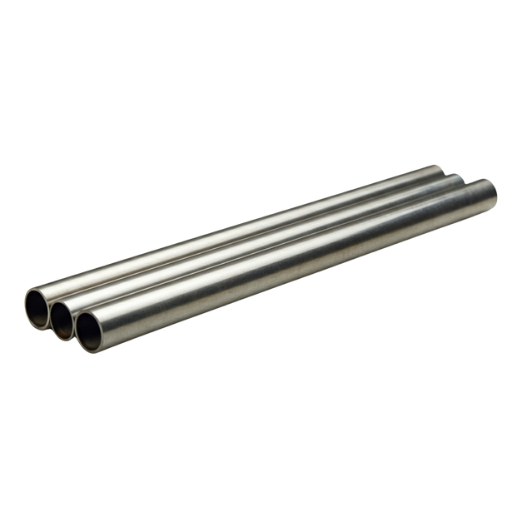

N08367 Stainless Steel Heat Exchanger Tube - Detailed Specifications
| Parameter | Specification |
|---|---|
| Material Composition | N08367 stainless steel |
| Outer Diameter (OD) | 12.7 mm - 114.3 mm (customizable) |
| Wall Thickness | 0.89 mm - 6.35 mm |
| Length | Up to 12 meters (custom lengths available) |
| Corrosion Resistance | Superior resistance in harsh environments |
| Tensile Strength | ≥ 690 MPa |
| Yield Strength | ≥ 300 MPa |
| Elongation | ≥ 40% |
| Applications | Chemical processing, marine, heat exchangers |
| Standards Compliance | ASTM B688, ASME SB-688 |
Understanding ASTM B688, ASME SB-688
What It Is:
Learn about the characteristics of N08367 stainless steel heat exchanger tubes and their role in ensuring reliable industrial performance.
- An advanced stainless steel alloy optimized for heat exchanger applications.
- Offers exceptional resistance to pitting, crevice, and chloride-induced corrosion.
- Features high tensile and yield strength for demanding environments.
- Meets ASTM B688 and ASME SB-688 standards for quality and reliability.
Why It Is Your Core Focus:
Discover why N08367 stainless steel tubes are essential for industries requiring efficient, durable, and corrosion-resistant heat exchanger solutions.
- Ideal for chemical, marine, and industrial sectors requiring dependable performance.
- Provides long-term durability, reducing maintenance and downtime.
- Customizable sizes and specifications to meet diverse application needs.
- Designed for industries prioritizing efficiency and operational longevity.
N08367 Stainless Steel Material Properties
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 24.0 - 27.0 |
| Chromium (Cr) | 20.0 - 22.0 |
| Molybdenum (Mo) | 6.0 - 7.0 |
| Iron (Fe) | Balance |
| Copper (Cu) | 0.75 - 1.50 |
| Nitrogen (N) | 0.18 - 0.25 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 1.0 |
| Carbon (C) | ≤ 0.030 |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.030 |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 690 MPa |
| Yield Strength | ≥ 300 MPa |
| Elongation | ≥ 40% |
| Hardness (Brinell) | ≤ 95 HBW |
| Density | 8.09 g/cm³ |
| Melting Range | 1350 - 1400°C |
| Thermal Conductivity | 9.1 W/m·K (at 20°C) |
| Specific Heat Capacity | 502 J/kg·K (at 20°C) |
| Modulus of Elasticity | 195 GPa |
Versatile Applications of N08367 Stainless Steel Heat Exchanger Tube
our latest news
Get a Quote for N08367 Stainless Steel Heat Exchanger Tube
When battling extreme corrosion and demanding conditions, N08367 stainless steel heat exchanger tubes deliver unmatched durability and superior performance. Contact our experts for your custom solution today!
