Understanding Thermal Conductivity in Metals
What is Thermal Conductivity?
Thermal conductivity measures how easily heat can pass through a material. It represents the rate at which heat energy transfers through a material when there’s a temperature difference. This property is measured in watts per meter-kelvin (W/m·K) and depends on several factors including:
- Material structure and composition
- Temperature conditions
- Presence of alloying elements
- Microstructure characteristics
Why Thermal Conductivity Matters in Metals
In metals, free electrons carry heat energy rapidly through the material structure, making them excellent thermal conductors compared to non-metallic materials. This property is crucial for applications in electronics, aerospace, automotive, and construction industries.
Steel as a Thermal Conductor
Steel, being an iron-based alloy, offers moderate thermal conductivity compared to other metals. While it doesn’t match copper or aluminum’s exceptional heat transfer capabilities, steel provides a balanced combination of thermal properties, mechanical strength, and cost-effectiveness.
Key Fact: Steel’s thermal conductivity typically ranges from 15-50 W/m·K at room temperature, depending on the specific alloy composition and grade.
Factors Influencing Steel’s Thermal Conductivity
1. Composition and Alloying Elements
The presence and concentration of various alloying elements significantly impact thermal conductivity:
| Element | Effect on Thermal Conductivity | Common Applications |
|---|---|---|
| Carbon | Decreases conductivity with higher content | Structural steel, cutting tools |
| Chromium | Reduces conductivity, improves corrosion resistance | Stainless steel applications |
| Nickel | Reduces conductivity, enhances toughness | High-temperature applications |
| Aluminum | May increase conductivity | Specialized alloy applications |
2. Microstructure Impact
The internal structure of steel significantly affects heat flow:
- Grain Size: Fine, uniform grain structures typically enhance thermal conductivity
- Phase Distribution: The arrangement of different phases affects heat transfer pathways
- Processing Effects: Operations like rolling, annealing, or quenching modify microstructure
3. Temperature Dependence
Steel’s thermal conductivity varies with temperature. Generally, as temperature increases, atomic vibrations intensify, leading to more electron scattering and potentially reduced heat transfer efficiency.
4. Impurities and Residual Stress
These factors can disrupt uniform heat conduction pathways, affecting overall thermal performance.
Types of Steel and Their Thermal Conductivity Values
| Steel Type | Thermal Conductivity (W/m·K) | Key Characteristics | Primary Applications |
|---|---|---|---|
| Carbon Steel | 45-60 | Higher conductivity due to simpler composition | Structural applications, general construction |
| Stainless Steel (Austenitic) | 15-25 | Lower conductivity, excellent corrosion resistance | Food processing, chemical equipment |
| Tool Steel | 20-25 | Balanced thermal properties with hardness | Cutting tools, molding applications |
| Alloy Steel | 25-40 | Variable properties based on composition | Automotive, high-temperature applications |
Detailed Analysis of Major Steel Categories
Carbon Steel
Carbon steel represents the most basic steel alloy, with carbon content directly affecting both mechanical properties and thermal conductivity. Higher carbon content increases hardness and tensile strength but reduces thermal conductivity and ductility.
Advantages: Cost-effective, good machinability, higher thermal conductivity among steel types
Limitations: Susceptible to corrosion, especially in acidic or moisture-rich environments

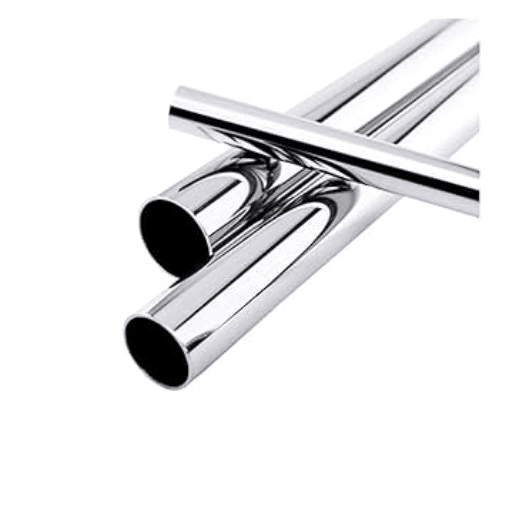

Stainless Steel Grades
Austenitic Stainless Steels (304, 316)
- Thermal Conductivity: 14-17 W/m·K
- Applications: Food processing, architectural, marine environments
- Special Features: Grade 316 offers superior chloride resistance
Ferritic Stainless Steels (430)
- Characteristics: Moderate corrosion resistance, magnetic properties
- Applications: Automotive trim, home appliances
- Cost Advantage: More economical than austenitic grades
Martensitic Stainless Steels (410, 420)
- Properties: High strength and wear resistance
- Applications: Cutlery, surgical instruments, industrial tools
Duplex Stainless Steels (2205)
- Benefits: Higher strength, excellent stress corrosion cracking resistance
- Applications: Petrochemical and marine industries
Precipitation Hardening Grades (17-4 PH)
- Features: Exceptional strength and hardness
- Applications: Aerospace, oil and gas, high-performance automotive

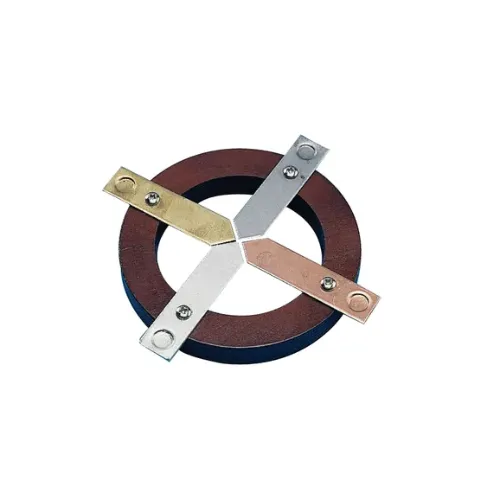

Steel vs. Other Metals: Thermal Conductivity Comparison
| Metal | Thermal Conductivity (W/m·K) | Relative Performance | Primary Applications |
|---|---|---|---|
| Silver | 430 | Highest conductor | Electronics (limited due to cost) |
| Copper | 385-400 | Excellent conductor | Heat exchangers, electrical wiring |
| Aluminum | 205-235 | Very good conductor | Automotive, aerospace applications |
| Carbon Steel | 45-60 | Moderate conductor | Structural applications |
| Stainless Steel | 15-30 | Lower conductor | Corrosion-resistant applications |
Selection Criteria: While metals like copper and aluminum excel in pure heat transfer applications, steel’s balanced properties make it ideal for structural applications where controlled heat transfer is beneficial.
Industrial Applications of Steel’s Thermal Properties
Construction and Infrastructure
- Building Frames: Steel’s moderate thermal conductivity helps manage thermal expansion in large structures
- Bridges: Thermal management crucial for maintaining structural integrity across temperature variations
- Infrastructure: Balance between strength and controlled heat transfer
Automotive Industry
Key Applications:
- Body Frames: Advanced high-strength steels reduce weight by 25-39% while maintaining safety
- Engine Components: Crankshafts, camshafts requiring heat resistance
- Exhaust Systems: Stainless steel withstands high temperatures and corrosive emissions
- Brake Systems: Heat dissipation critical for safety and performance
Aerospace Applications
- Landing Gear: High-performance steel alloys handle extreme loads and temperature cycles
- Fuel Systems: Secure containment under pressure with thermal stability
- Structural Components: Weight optimization with thermal management
Energy and Power Generation
- Boilers: High-temperature and pressure resistance
- Heat Exchangers: Balance of thermal conductivity and mechanical strength
- Power Plant Components: Efficient heat transfer in generation processes
Manufacturing Processes
- Tooling: Temperature management during machining operations
- Industrial Equipment: Heat dissipation in manufacturing machinery
- Process Equipment: Chemical and pharmaceutical processing applications
Kitchen and Food Processing
- Cookware: Even heat distribution for cooking performance
- Food Processing Equipment: Sanitary design with thermal efficiency
- Commercial Kitchen Equipment: Durability with heat management
Comparison with Poor Thermal Conductors
Understanding steel’s position relative to insulating materials provides context for material selection:
| Material Category | Thermal Conductivity (W/m·K) | Applications | Key Advantages |
|---|---|---|---|
| Steel | 15-60 | Structural, industrial | Strength + moderate heat transfer |
| Wood | 0.1-0.2 | Construction insulation | Natural insulator, renewable |
| Plastics | 0.2-0.5 | Lightweight components | Corrosion resistance, low weight |
| Polystyrene Foam | 0.03-0.04 | Building insulation | Excellent thermal barrier |
References
-
Thermophysical Properties of Stainless Steels
Office of Scientific and Technical Information (OSTI)
Contains experimental data on the thermal conductivity of stainless steel types 304L and 316L. -
Thermal Conductivity of the Elements
National Institute of Standards and Technology (NIST)
A detailed document on the thermal conductivity of metals and elements.
Frequently Asked Questions (FAQ)
What is the thermal conductivity of different metals, including steel?
The thermal conductivity of metals can vary widely. For instance, steel possesses a lower thermal conductivity as compared to metals like copper and aluminum, but it does have higher thermal conductivity than materials known to be poor conductors of heat. Generally speaking, from a heat transfer perspective, steel possesses a thermal conductivity of about 50 watts per meter kelvin, which renders it suitable for various heat transfer applications.
What is the difference in thermal conductivity of stainless steel as compared with carbon steel?
The thermal conductivity of stainless steel is mostly lower than the thermal conductivity of carbon steel. Carbon steel usually shows a greater thermal conductivity; nonetheless, for applications where resistance to corrosion and a high-temperature environment is required, stainless steel is a logical choice. The various grades of stainless steel present different values in terms of thermal conductivity, usually lying within the range of 15 to 30 watts per meter kelvin.
What are the thermal properties of metals relevant to heat sinks?
In circumstances where heat sinks are concerned, the thermal properties of metals such as thermal conductivity become an issue. It is materials with the highest thermal conductivities-such as aluminum and copper-which really make good heat sinks since thermal energy needs to be removed efficiently away from critical components. The higher the inherent thermal conduction of a heat sink, the faster it will manage temperature discrepancies.
How do temperature differences affect the thermal conductivity of steel?
Steel’s thermal conductivity will depend on the temperature difference existing across the medium. From low-temperature levels, the conductivity tends to fall, whereas at higher-temperature levels, it rises, favoring better heat transmission. This factor becomes relevant where temperature control must be precise.
Why is the unit area important in the measurement of thermal conductivity?
The unit area is important in the measurement of thermal conductivity because it helps in determining the quantity of heat transmitted through the material per unit temperature gradient. Being measured in units of watts per meter per kelvin, these measurements are used by engineers to judge the application-based suitability of a material, such as steel, for conducting heat.
Why is electrical conductivity of steel relevant in thermal applications?
Electrical conductivity would be relevant to thermal applications simply because most good conductors of heat are also good conductors of electricity. Being able to understand the proportion of thermal conductivity to electrical conductivity will help select the ideal material for performance where electrical transfer as well as heat transfer is crucial.
Which stainless steel grades are poor conductors of heat?
Various grades of stainless steels have different thermal conductivity, marking some grades as poor thermal conductors. For example, austenitic grades generally have lower thermal conductivity than the ferritic grades and so are not as good wherever heat transfer is required.
How does the thermal conductivity of carbon compare with that of metals?
Carbon, particularly the graphite form, can have thermal conductivity superior to that of metals. So, towards the higher range of thermal conductivity, carbon serves as an excellent conductor. Therefore, though metals like steel are good conductors, they are not usually able to compete in this capacity with high-grade carbon materials.
What role does thermal expansion play in the thermal conductivity of metals?
Thermal expansion can affect thermal conductivity of metals including steel. When metals get heated, they expand, which could affect the way they conduct heat. Learning about this phenomenon is quite critical to applications that deal with huge swings in temperatures or in their effects on performance and durability of metal components.
