The solution annealing process is a heat treatment method that restores the internal structure of metal alloys. It dissolves unwanted carbides and precipitates. It creates a uniform, single-phase microstructure. The result is better corrosion resistance, higher ductility, and longer service life.
Engineers specify solution annealing for critical components in aerospace, chemical processing, and power generation. If you procure stainless steel pipe or tubing for corrosive environments, you need to understand this process. It directly affects material performance and compliance with ASTM and ASME standards.
This guide explains what solution annealing is, how it works, which materials require it, and why it matters for your project.
What Is the Solution Annealing Process?
Solution annealing is a three-step thermal treatment. First, the metal heats to a high temperature. Second, it holds at that temperature. Third, it cools rapidly. This sequence dissolves carbides and other precipitates into a solid solution.
The goal is simple: create a uniform microstructure. When carbides cluster at grain boundaries, they weaken the metal. They reduce corrosion resistance. They create stress concentrations that lead to cracking. Solution annealing eliminates these problems.
Think of it like stirring sugar into hot tea. At room temperature, sugar crystals sit at the bottom. Heat the water, and the crystals dissolve completely. Cool it quickly, and the sugar stays evenly distributed. Solution annealing does the same thing for carbides in metal.
Why It Matters
Without solution annealing, stainless steel can suffer from intergranular corrosion. This means corrosion attacks the boundaries between metal grains. The component looks fine on the outside but fails under stress. Solution annealing prevents this by dissolving chromium carbides and keeping chromium evenly distributed throughout the material.
For industries that demand zero-defect performance — offshore oil platforms, nuclear power plants, pharmaceutical clean rooms — this process is not optional. It is a specification requirement.
Solution Annealing Temperature Ranges by Material
Every alloy has its own solution annealing temperature range. Heat too little, and carbides do not dissolve. Heat too much, and grains grow too large. Both problems reduce mechanical properties.
| Material | Temperature Range (°F) | Temperature Range (°C) | Purpose |
|---|---|---|---|
| Low-carbon steel | 1,200–1,300 | 649–704 | Softens material, relieves stress |
| High-carbon steel | 1,400–1,650 | 760–899 | Achieves desired mechanical properties |
| Austenitic stainless steel | 1,850–2,100 | 1,010–1,150 | Dissolves carbides, creates uniform structure |
| Duplex stainless steel | 1,920–2,050 | 1,050–1,120 | Balances ferrite and austenite phases |
| Nickel-based superalloys | 1,900–2,200 | 1,040–1,204 | Optimizes high-temperature performance |
At Zhongzheng, we manufacture stainless steel seamless pipe in grades that require precise solution annealing. Our production lines control temperature to within ±10°C. This ensures every heat meets ASTM A312 and ASME SA312 requirements.

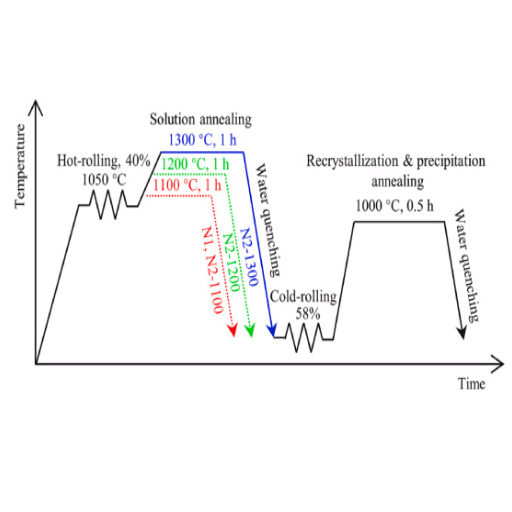

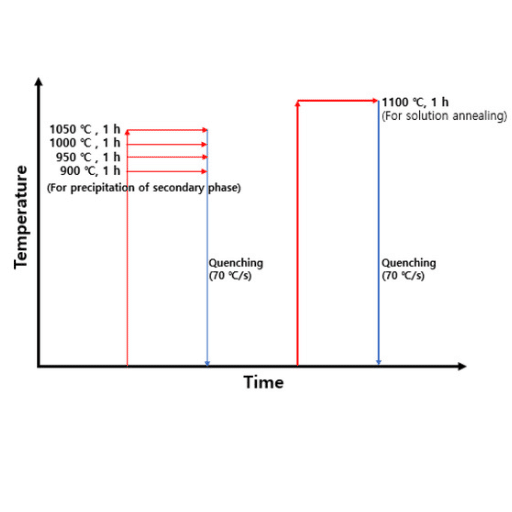

Steps in the Solution Annealing Process
Step 1: Heating
Technicians load the material into a furnace. They raise the temperature to the specified solution annealing range. The heating rate depends on the alloy and component thickness. Thick sections heat slowly to avoid thermal shock. Thin sheets and tubes heat faster.
The furnace atmosphere also matters. For sensitive alloys, manufacturers use protective gas or vacuum environments. This prevents oxidation and surface contamination.
Step 2: Holding
The metal soaks at the target temperature for a set time. This holding period allows carbides and precipitates to fully dissolve. It also lets internal stresses relax.
Hold time varies by material thickness. A thin-walled tube might need 15 minutes per inch of wall thickness. A heavy forging might need several hours. The key is patience. Rushing this step leaves undissolved carbides behind.
Step 3: Rapid Cooling (Quenching)
After soaking, the metal cools rapidly. Quenching traps the dissolved elements in their positions. It prevents carbides from re-forming as the temperature drops.
Common quenching methods include:
- Water quenching — fastest cooling, best for austenitic stainless steel
- Oil quenching — moderate cooling, reduces distortion risk
- Air cooling — slower, used for materials sensitive to thermal shock
- Furnace cooling — most controlled, best for complex shapes
The right method depends on the alloy, component geometry, and required properties. Water quenching gives the fastest cooling but can warp thin sections. Air cooling is gentler but may allow some carbide re-formation.
Step 4: Finishing
After quenching, the surface may have oxide scale or discoloration. Cleaning, pickling, or passivation removes these contaminants. The component is then ready for inspection, testing, and shipment.
Material test reports (MTRs) document the solution annealing cycle. They record furnace number, temperature, hold time, and cooling method. These documents prove compliance with specifications and support material traceability.
Which Materials Need Solution Heat Treatment?
Not every metal requires the solution annealing process. It is most common for alloys that form carbides or precipitates during manufacturing.
Austenitic Stainless Steel
Grades like 304, 316, and 316L benefit most from solution annealing. These steels contain chromium and nickel. When heated and cooled properly, they form a single-phase austenitic structure. This structure resists corrosion and maintains ductility across a wide temperature range.
For sanitary and hygienic applications, electropolished stainless steel tubing must start with properly solution-annealed material. The electropolishing process removes surface defects. But it cannot fix a poor microstructure.
Nickel-Based Superalloys
Alloys like Inconel and Hastelloy operate in extreme environments. Turbine blades, chemical reactors, and exhaust systems all use these materials. Solution annealing optimizes their creep resistance and oxidation protection at temperatures above 1,000°F (538°C).
Aluminum, Magnesium, and Titanium Alloys
Aerospace and medical industries rely on these lightweight metals. Solution heat treatment increases their strength-to-weight ratio. It also improves fatigue resistance. Each alloy family has its own temperature window and quenching requirements.
Cooling Methods After Annealing
Cooling is not an afterthought. The final step in the solution annealing process determines whether the desired microstructure holds.
| Method | Cooling Speed | Best For | Risk |
|---|---|---|---|
| Water quenching | Very fast | Austenitic stainless steel, simple shapes | Warping, distortion |
| Oil quenching | Fast | High-carbon steels, complex shapes | Slower than water |
| Air cooling | Moderate | Thin sections, sensitive alloys | Carbide re-formation |
| Furnace cooling | Slow | Large castings, precision parts | Grain growth |
Modern furnaces use programmable controllers. They adjust cooling rates precisely. This reduces defects and improves consistency. At Zhongzheng, our quality control team verifies cooling parameters for every solution-annealed batch.
Benefits of the Solution Annealing Process
Solution annealing delivers measurable improvements:
Enhanced corrosion resistance. The process evenly distributes chromium and molybdenum. This creates a stable passive layer on the metal surface. Corrosive agents cannot penetrate. Properly solution-annealed 316L stainless steel resists pitting and crevice corrosion in chloride environments.
Improved mechanical properties. Ductility and toughness increase. The material absorbs impact without cracking. Tensile strength meets specification with greater consistency.
Microstructure stability. The single-phase structure resists changes during subsequent welding or heat exposure. This is critical for multi-pass welding operations.
Extended service life. Components withstand cyclic loading and harsh environments longer. Maintenance intervals increase. Lifecycle costs drop.
Better fabrication properties. Solution-annealed material forms, welds, and machines more predictably. Fabricators experience fewer rejects and reworks.
Industrial Applications
Aerospace
Turbine blades, exhaust nozzles, and structural fasteners operate at extreme temperatures. Solution-annealed nickel superalloys maintain strength where ordinary steels soften. Every flight hour depends on material integrity.
Oil and Gas
Offshore platforms and refineries face saltwater, hydrogen sulfide, and high pressure. Solution-annealed duplex and super duplex stainless steel resists these conditions. API and NACE specifications often require solution-annealed material for sour service.
Medical Devices
Surgical instruments and implants must be biocompatible and corrosion-resistant. Solution-annealed 316L and titanium alloys meet FDA and ISO requirements. Surface finish and microstructure both matter for patient safety.
Power Generation
Heat exchanger tubes, boiler components, and turbine parts face thermal cycling and corrosive steam. Solution annealing ensures these parts last through decades of operation.
Chemical Processing
Reactors, storage tanks, and piping systems handle aggressive chemicals. Solution-annealed stainless steel prevents leaks and unplanned shutdowns. ASTM A262 testing verifies intergranular corrosion resistance after heat treatment.

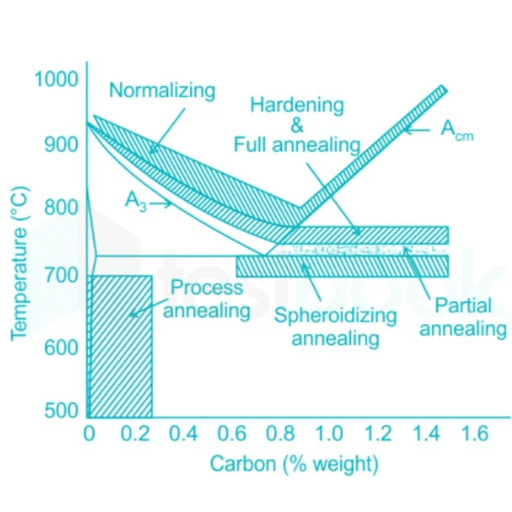

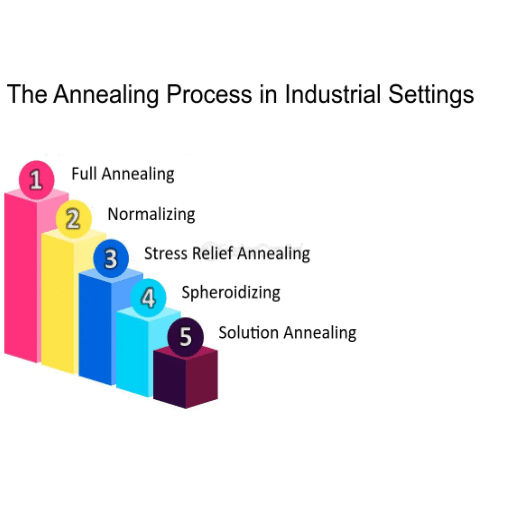

Solution Annealing vs. Other Heat Treatments
Buyers often confuse solution annealing with other thermal processes. Each serves a different purpose.
| Process | Temperature | Cooling | Purpose |
|---|---|---|---|
| Solution annealing | High (above critical range) | Rapid quench | Dissolve carbides, create uniform structure |
| Normalizing | Above critical range | Air cool | Refine grain size, improve machinability |
| Stress relief annealing | Below critical range | Slow cool | Remove residual stresses from fabrication |
| Tempering | Low (below critical range) | Air cool | Reduce hardness after quenching, improve toughness |
If your specification calls for the solution annealing process, do not substitute normalizing or stress relief. The microstructures are different. The corrosion resistance is different. Substituting one for another can cause field failures.
Frequently Asked Questions
What is the solution annealing process?
Solution annealing is a heat treatment that heats metal to a high temperature, holds it there, and cools it rapidly. The process dissolves carbides and creates a uniform microstructure. It improves corrosion resistance, ductility, and mechanical properties.
What is the solution annealing temperature for 316L stainless steel?
The standard solution annealing temperature for 316L is 1,850–2,050°F (1,010–1,120°C). Hold time depends on section thickness. Water quenching follows immediately to preserve the microstructure.
How does solution annealing differ from normalizing?
Solution annealing uses rapid quenching to trap carbides in solution. Normalizing uses air cooling to refine grain size. They produce different microstructures and serve different engineering purposes.
Can duplex stainless steel be solution annealed?
Yes. Duplex grades like 2205 and 2507 require solution annealing to achieve the correct balance of ferrite and austenite. The typical range is 1,920–2,050°F (1,050–1,120°C). Proper cooling preserves the 50/50 phase balance.
Does solution annealing change part dimensions?
Solution annealing can cause slight distortion, especially during water quenching. Fixture design and controlled cooling minimize this. For tight-tolerance components, specify straightening or machining after heat treatment.
How do you verify that solution annealing was done correctly?
Laboratories use several methods:
- Metallography examines grain structure under a microscope
- ASTM A262 practice tests intergranular corrosion susceptibility
- Hardness testing confirms the material softened appropriately
- MTR review verifies temperature, time, and cooling records
What heat treatment services does Zhongzheng offer?
Zhongzheng supplies solution-annealed stainless steel pipe and tubing to ASTM A312, A269, and A213 specifications. Our MTRs document full heat treatment parameters. We also provide third-party inspection support and custom dimensions on request.
Conclusion
The solution annealing process is essential for high-performance metal alloys. It dissolves carbides, creates uniform microstructure, and unlocks corrosion resistance. Without it, stainless steel and nickel alloys fall short of their design potential.
If your project specifies solution-annealed material, verify that your supplier documents the full heat treatment cycle. Review the MTR. Confirm compliance with ASTM or ASME standards. And test for intergranular corrosion resistance when specifications require it.
At Zhongzheng, we manufacture ASTM-certified stainless steel pipe and tubing with full traceability and documented heat treatment. Whether you need 316L for chemical service, duplex for offshore applications, or electropolished tubing for hygienic systems, our technical team will confirm the right grade and specification within 24 hours. Send us your requirements and we will respond with a detailed quote.
Sources
- National Institute of Standards and Technology (NIST), “Standard Reference Data for Steel Heat Treatment” — authoritative temperature and property data
- ASM International, “Heat Treater’s Guide: Practices and Procedures for Irons and Steels” — industry-standard heat treatment practices
- ASTM International, ASTM A262 — standard practices for detecting susceptibility to intergranular attack in austenitic stainless steels
